GMT 125 (169-130-100) - Cub Cadet Grounds Maintenance Tractor Muffler & Covers Parts Diagram

Grounds Maintenance Tractor

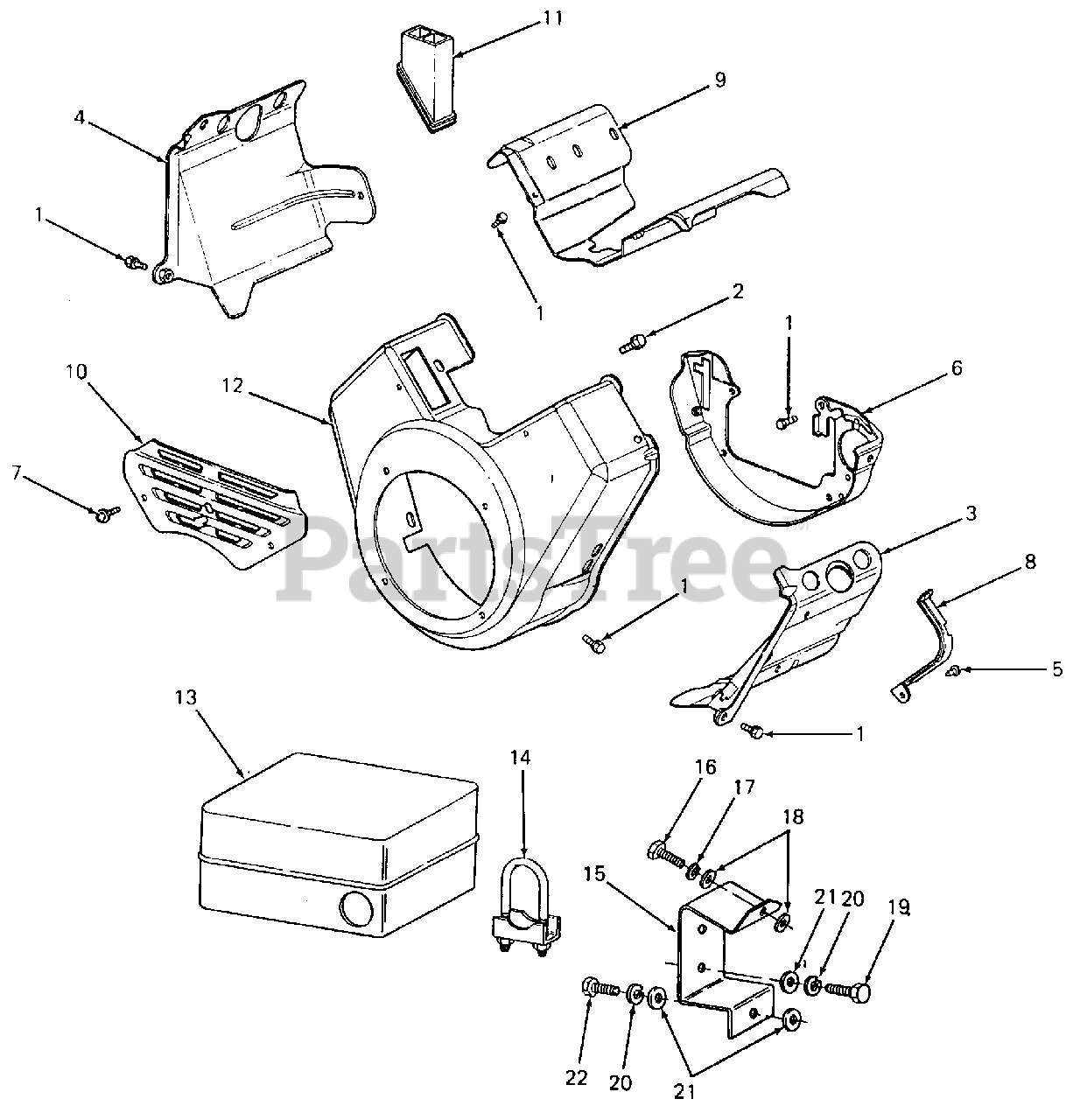

Muffler & Covers Parts Diagram

  • Title

1

Cub Cadet BS-805406

Screw, Sems
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

2

Cub Cadet BS-805025

Screw, Sems

$

$

Not available

3

Cub Cadet BS-807656

Cover (Cyl #1)

$

$

Currently unavailable

4

Cub Cadet BS-807657

Cover (Cyl #2)

$

$

Currently unavailable

5

Cub Cadet BS-805260

Screw, Sems

$

$

Not available

6

Cub Cadet BS-807663

Plate, Back

$

$

Not available

7

Cub Cadet BS-805009

Screw, Sems
(Superseded to BS-690677)

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-805505

Shield

$

$

Not available

9

Cub Cadet BS-807660

Cover

$

$

Not available

10

Cub Cadet BS-805369

Cover, Carburetor

$

$

Currently unavailable

11

Cub Cadet BS-805363

Tube, Air Inlet

$

$

Not available

12

Cub Cadet BS-807662

Housing, Blower

$

$

Currently unavailable

13

Cub Cadet TE-1000557

Muffler
(Superseded to BS-498984S)

$84.99

$

Usually ships in 2-12 days

0

14

Cub Cadet TE-1000525

Clamp, Muffler

$

$

Currently unavailable

15

Cub Cadet TE-1000527

Bracket, Muffler

$

$

Currently unavailable

16

Cub Cadet TE-1000571

Screw, Hex Cap, M8 X 1.25 X 20 mm Lg

$

$

Currently unavailable

17

Cub Cadet 736-0119

Washer, Lock, 5/16-.312
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0123

Washer, Flat, .344 X 1.125 X .063 Thk
(Superseded to 936-0123)

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0855

Screw, Hex Cap, 1/4-20 X 1 Lg
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

20

Cub Cadet 736-0329

Washer, Lock 1/4-.250
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

21

Cub Cadet 736-0173

Washer, Flat, .281 X .734 X .063

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet TE-1000573

Screw, Hex Cap, M6 X 1.0 X 16 mm Lg

$

$

Not available
