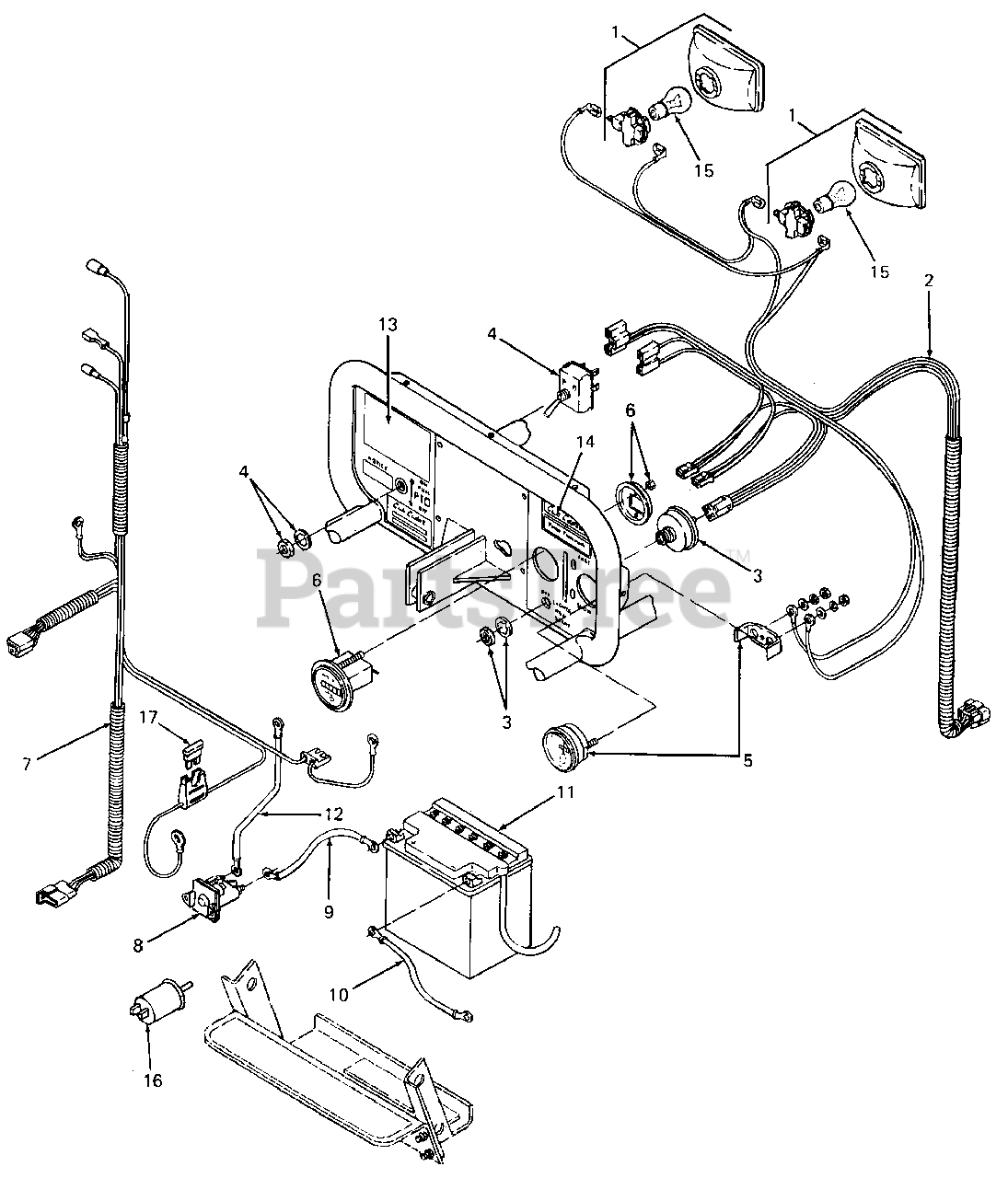

GMT 125 (169-130-100) - Cub Cadet Grounds Maintenance Tractor Electrical Parts Diagram

Grounds Maintenance Tractor

Electrical Parts Diagram

  • Title

1

Cub Cadet TE-1000294

Headlamp Assy

$

$

Not available

2

Cub Cadet TE-1000296

Harness, Wire (Upper)

$

$

Not available

Cub Cadet TE-1000815

Harness, Operator Presence

$

$

Currently unavailable

3

Cub Cadet TE-1000252

Switch, Ignition

$

$

Not available

4

Cub Cadet TE-1000253

Switch, Clutch
(Superseded to 925-3022)

$54.99

$

In Stock, only 2 left!

0

5

Cub Cadet 725-3023

Ammeter
(Superseded to 925-3141)

$62.99

$

In Stock, only 4 left!

0

6

Cub Cadet 725-3058

Hourmeter

$

$

Not available

7

Cub Cadet TE-1000297

Harness, Wire (Lower)

$

$

Currently unavailable

8

Cub Cadet TE-1000266

Solenoid, Starter

$

$

Not available

9

Cub Cadet TE-1000264

Cable, Positive

$

$

Not available

10

Cub Cadet TE-1000263

Cable, Ground

$

$

Currently unavailable

11

Cub Cadet TE-1000260

Battery, 12V

$

$

Not available

12

Cub Cadet TE-1000265

Cable, Starter

$

$

Not available

13

Cub Cadet TE-1000257

Decal, Caution

$

$

Currently unavailable

14

Cub Cadet TE-1000258

Decal, Gauge

$

$

Currently unavailable

15

Cub Cadet 725-0963

Bulb, 12VGE-1156
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

16

Cub Cadet TE-1000813

Switch, Neutral Bypass

$

$

Not available

17

Cub Cadet 725-1381

Fuse, 20 Amp
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0
