GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Rewind Starter Assembly Parts Diagram

Grounds Maintenance Tractor

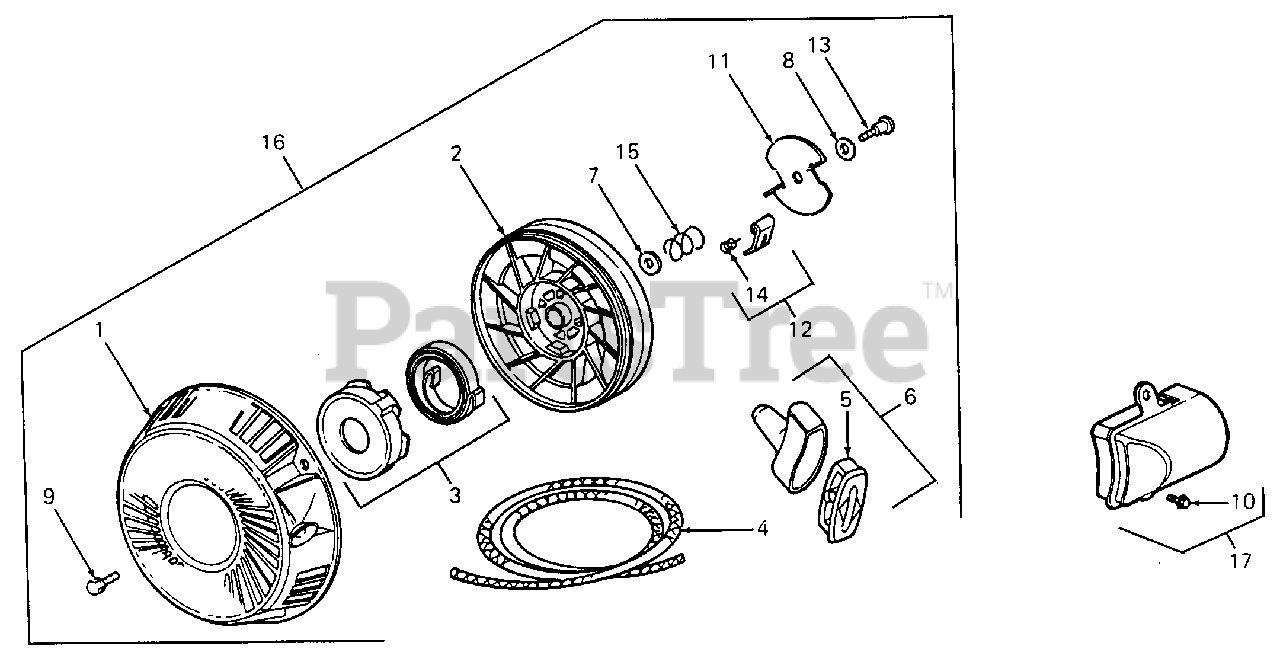

Rewind Starter Assembly Parts Diagram

  • Title

1

Cub Cadet BS-492193

Housing, Starter

$52.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-280953

Pulley, Rewind Starter

$

$

Not available

3

Cub Cadet BS-492194

Spring, Rewind Starter
(Superseded to BS-692102)

$142.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-66884

Rope, Starter
(Superseded to BS-692188)

$8.49

$

In Stock, only 1 left!

0

5

Cub Cadet BS-490653

Insert, Starter Handle

$5.49

$

In Stock, Qty 12

0

6

Cub Cadet BS-490652

Grip, Starter

$5.49

$

In Stock, Qty 12

0

7

Cub Cadet BS-94464

Washer, Pulley

$4.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-94462

Washer, Retainer

$13.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-810037

Screw, Sems

$

$

Not available

10

Cub Cadet BS-810066

Screw

$2.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-224228

Retainer

$5.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-492431

Armature

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94463

Screw, Retainer

$6.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-262565

Spring, Dog
(Superseded to BS-492833)

$4.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-262564

Spring, Torsion

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet BS-492435

Starter Assy

$

$

Not available

17

Cub Cadet BS-492698

Shield, Starter

Note: (Includes mounting screws)

$

$

Currently unavailable
