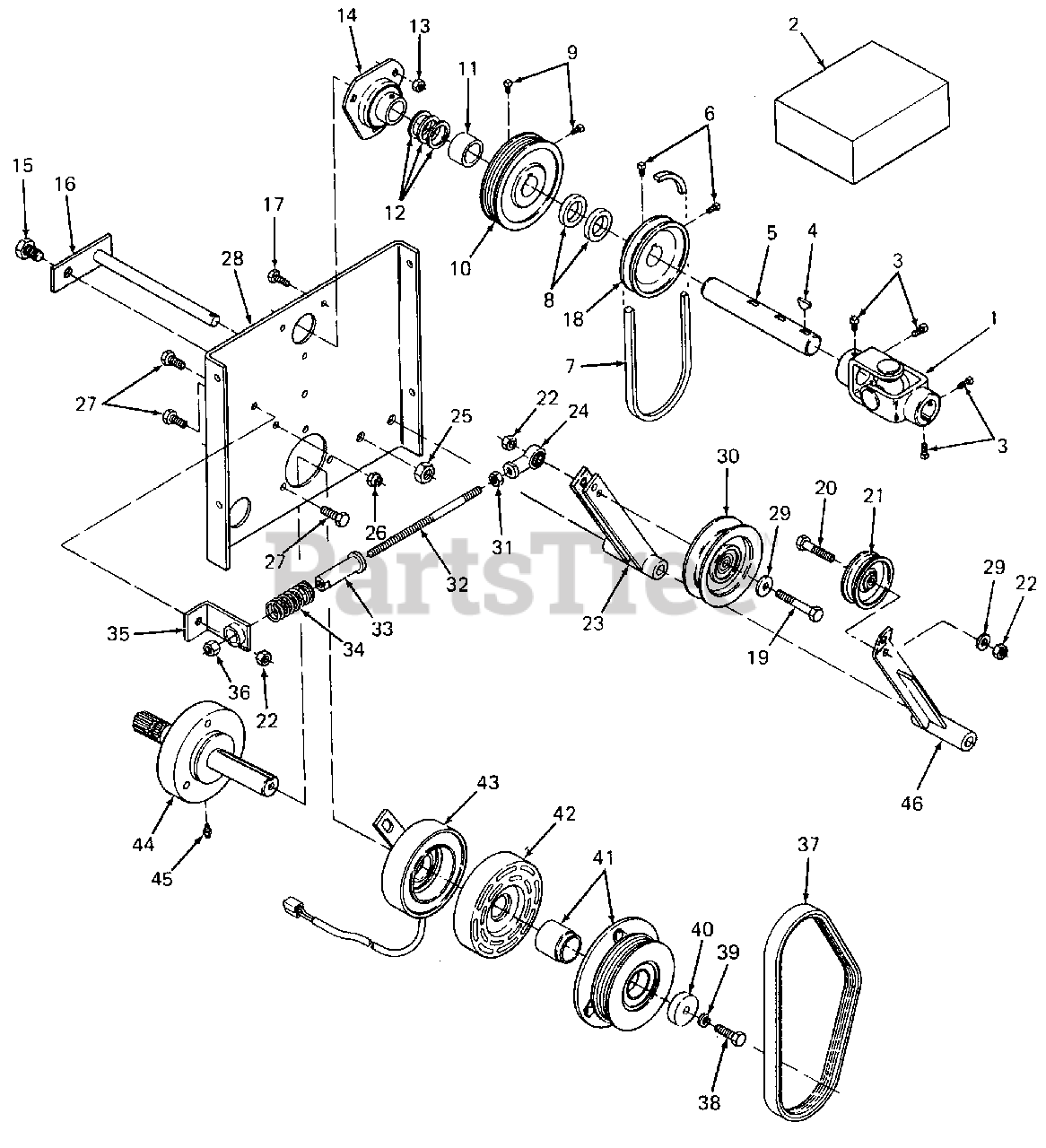

GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor PTO & Clutch Mounting Parts Diagram

Grounds Maintenance Tractor

PTO & Clutch Mounting Parts Diagram

  • Title

1

Cub Cadet TE-1000140

Coupling, Engine

Note: (Includes Ref No. 2)

$

$

Not available

2

Cub Cadet TE-1000544

Kit, U-Joint

$

$

Not available

3

Cub Cadet TE-102892

Setscrew, 3/8-16 X .50 Cup

$

$

Not available

4

Cub Cadet TE-1000536

Key, Woodruff, Hi-Pro
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet TE-1000141

Shaft, Line

$

$

Not available

6

Cub Cadet TE-102881

Setscrew, 5/16-18 X .50 Cup

$

$

Not available

7

Cub Cadet TE-1000802

Belt, Primary Drive

$

$

Not available

8

Cub Cadet TE-1000522

Spacer

$

$

Currently unavailable

9

Cub Cadet TE-102882

Setscrew, 5/16-18 x 5/8

$

$

Not available

10

Cub Cadet TE-1000804

Pulley, PTO

$

$

Not available

11

Cub Cadet TE-1000803

Spacer, Line Shaft

$

$

Currently unavailable

12

Cub Cadet TE-1000341

Race, Thrust, .060 Thk

$

$

Not available

13

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

14

Cub Cadet TE-1000146

Bearing, Flangette

$

$

Not available

15

Cub Cadet 710-0493

Screw, Hex Cap, 1/2-13 X 1.0 Lg
(Superseded to 710-3131)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet TE-1000441

Pin Assy, Idler Roller

$

$

Not available

17

Cub Cadet 710-0276

Bolt, Carriage, 5/16-18 X 1.0 Lg

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet TE-1000145

Pulley

$

$

Not available

19

Cub Cadet 710-0756

Screw, Hex Cap, 3/8-16 x 2.25 Lg

$

$

Not available

20

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 x 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet TE-1000793

Pulley, Idler - Primary

$

$

Not available

22

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

23

Cub Cadet TE-1000796

Arm, PTO Idler

$

$

Currently unavailable

24

Cub Cadet TE-1000487

Rod End, Female, 3/8-24

$

$

Not available

25

Cub Cadet 712-0384

Nut, Hex Center Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

26

Cub Cadet 712-0266

Nut, Hex Center Lock Jam, 3/8-16
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet TE-1000133

Plate, PTO Mounting

$

$

Currently unavailable

29

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet TE-1000822

Pulley, Idler (PTO)

$

$

Not available

31

Cub Cadet 712-0711

Nut, Hex Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet TE-1000488

Rod, Idler (PTO)

$

$

Not available

33

Cub Cadet TE-1000837

Adjuster, PTO

$

$

Currently unavailable

34

Cub Cadet TE-1000291

Spring

$

$

Not available

35

Cub Cadet TE-1000836

Bracket, PTO Spring

$

$

Currently unavailable

36

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

37

Cub Cadet TE-1000795

Belt, Poly-V

$

$

Not available

38

Cub Cadet 710-0757

Screw, Hex Cap, 7/16-20 X 1.50 Lg GR5

$9.99

$

In Stock, only 1 left!

0

39

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

40

Cub Cadet TE-1000361

Washer, Electric Clutch, .250 Thk

$

$

Currently unavailable

41

Cub Cadet TE-1000794

Armature w/Hub

$

$

Not available

42

Cub Cadet TE-1000547

Rotor

$

$

Not available

43

Cub Cadet TE-1000545

Field Assy

$

$

Currently unavailable

44

Cub Cadet TE-1000792

PTO Shaft/Housing

$

$

Not available

45

Cub Cadet TE-1000340

Fitting, Grease

$

$

Not available

46

Cub Cadet TE-1000801

Arm, Primary Idler

$

$

Not available
