GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Handlebar & Controls Parts Diagram

Grounds Maintenance Tractor

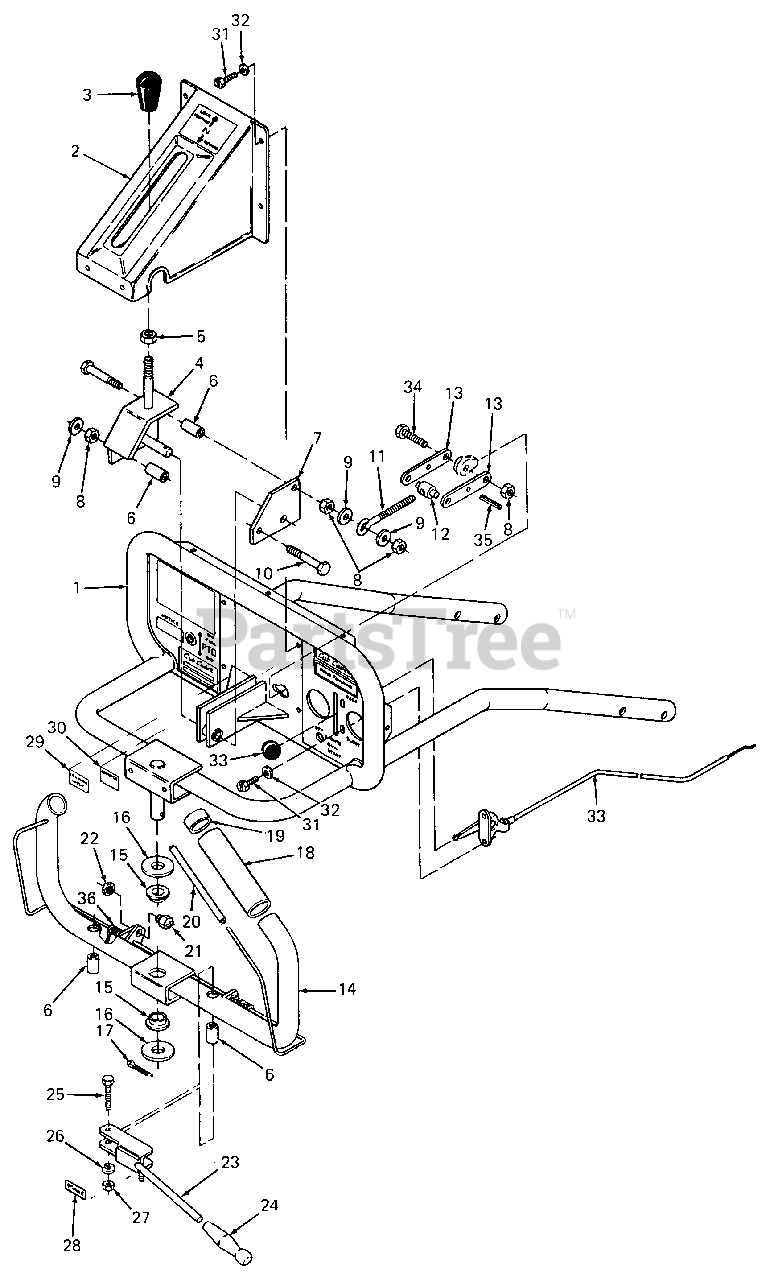

Handlebar & Controls Parts Diagram

  • Title

1

Cub Cadet TE-1000229

Handlebar Assy

$

$

Currently unavailable

2

Cub Cadet TE-1000570

Cover, Shifter w/Graphics

$

$

Not available

3

Cub Cadet TE-1000170

Knob, Control

$

$

Currently unavailable

4

Cub Cadet TE-1000230

Shifter, Forward-Reverse

$

$

Not available

5

Cub Cadet 712-0461

Nut, Hex Jam, 1/2-13
(Superseded to 912-3048)

$4.99

$

In Stock, Qty 16

0

6

Cub Cadet TE-1000193

Spacer

$

$

Currently unavailable

7

Cub Cadet TE-1000169

Plate, Shifter

$

$

Currently unavailable

8

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet 736-0185

Washer, Flat, .406 X .74 X .063 Thk

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR2

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet TE-1000830

Eyebolt, Cable

$

$

Not available

12

Cub Cadet TE-1000831

Swivel, Cable

$

$

Not available

13

Cub Cadet TE-1000829

Link, Cable

$

$

Not available

14

Cub Cadet TE-1000853

Steering Handle

$

$

Not available

15

Cub Cadet TE-1000255

Bushing, Flanged

$

$

Not available

16

Cub Cadet 736-0134

Washer, Flat, .812 X 1.38 X .100 Thk

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet TE-137258

Pin, Cotter, 3/16 X 1.75 Lg

$

$

Not available

18

Cub Cadet TE-1000254

Grip, Handle

$

$

Not available

19

Cub Cadet TE-1000249

Cap, End

$

$

Not available

20

Cub Cadet TE-1000818

Grip, Operator Presence

$

$

Currently unavailable

21

Cub Cadet TE-1000293

Switch, Safety

$

$

Not available

22

Cub Cadet TE-1000848

Nut, Switch

$

$

Currently unavailable

23

Cub Cadet TE-1000811

Brake Lever

$

$

Currently unavailable

24

Cub Cadet TE-1000817

Grip, Brake Handle

$

$

Not available

25

Cub Cadet 710-3144

Screw, Hex Cap, 3/8-16 X 2.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

28

Cub Cadet TE-1000840

Decal, Brake

$

$

Currently unavailable

29

Cub Cadet TE-1000838

Decal, Forward

$

$

Currently unavailable

30

Cub Cadet TE-1000839

Decal, Reverse

$

$

Currently unavailable

31

Cub Cadet 710-0895

Screw, Hex Hd Tapp, 1/4 X .75 Lg

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0342

Washer, Flat, .281 X .750 X .030 Thk

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet TE-1000161

Control, Throttle w/Knob

$

$

Not available

34

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 715-0108

Pin, Spiral Spring, 1/4 Dia X 1.0

$4.99

$

In Stock, Qty 15

0

36

Cub Cadet TE-1000845

Spring, Torsion

$

$

Not available
