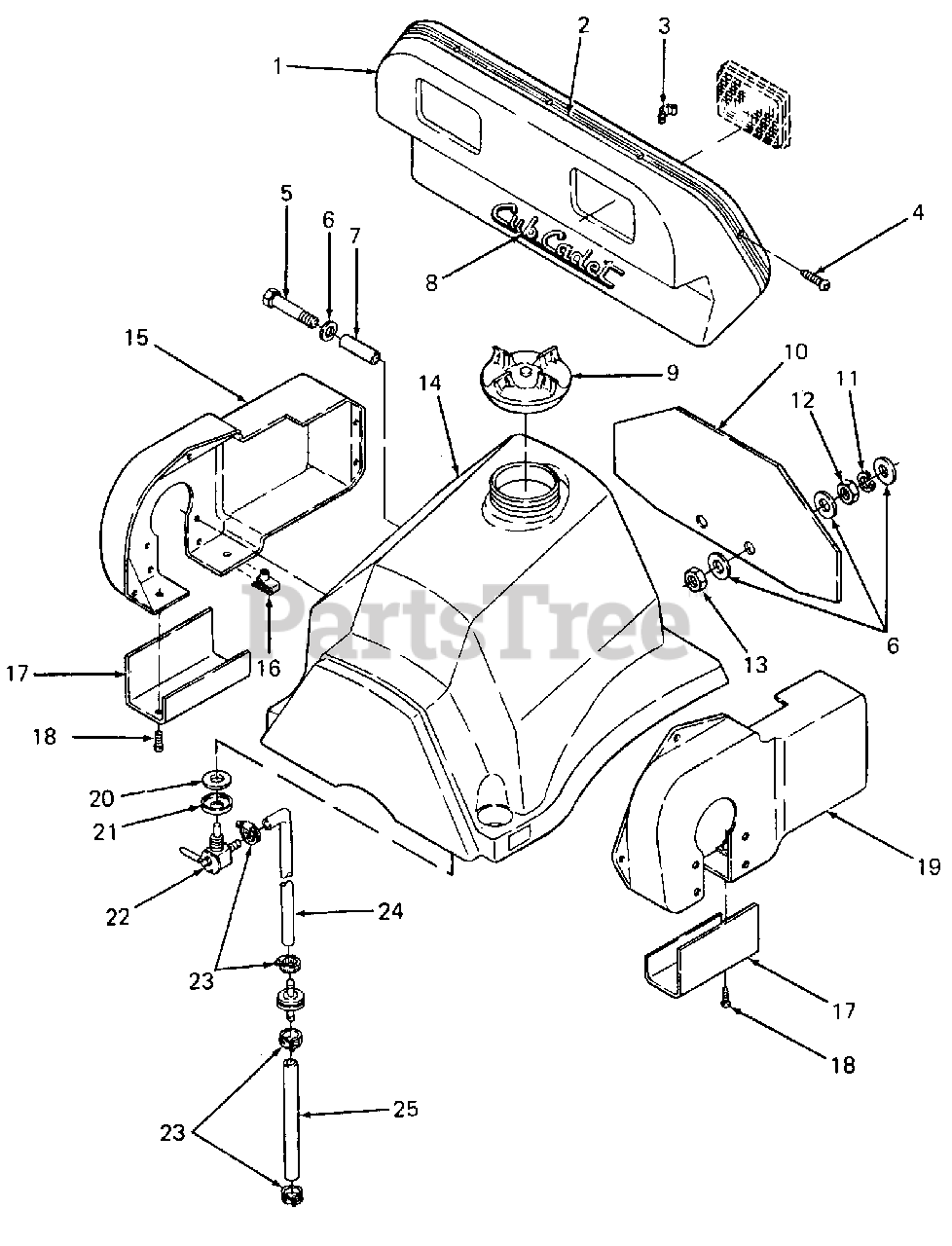

GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Fuel Tank & Covers Parts Diagram

Grounds Maintenance Tractor

Fuel Tank & Covers Parts Diagram

  • Title

1

Cub Cadet TE-1000300

Headlamp Housing

$

$

Currently unavailable

2

Cub Cadet TE-1000553

Kit, Power Unit Decal

$

$

Currently unavailable

3

Cub Cadet TE-1000295

Clip, Headlamp

$

$

Currently unavailable

4

Cub Cadet TE-9416642

Screw, Phillips Hd Tap, 1/4-14 X 5/8

$

$

Currently unavailable

5

Cub Cadet 710-0194

Screw, Hex Cap, 3/8-16 x 3

$

$

Not available

6

Cub Cadet 736-0300

Washer, Flat, .385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet TE-1000303

Spacer, Fuel Tank

$

$

Not available

8

Cub Cadet 731-3053A

Script, CCC
(Superseded to 931-3053A)

$24.99

$

In Stock, only 2 left!

0

9

Cub Cadet TE-1000271

Cap, Fuel
(Superseded to 751-3109)

$

$

Not available

10

Cub Cadet TE-1000352

Shield, Heat

$

$

Not available

11

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0798

Nut, Hex, 3/8-16

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet TE-1000299

Tank, Fuel

$

$

Not available

15

Cub Cadet TE-1000206

Cover, Chain, RH

$

$

Currently unavailable

16

Cub Cadet TE-1000518

Nut, Panel, U-Type, 1/4-20

$

$

Not available

17

Cub Cadet TE-1000212

Bracket, Chain Guard

$

$

Not available

18

Cub Cadet 710-0255

Screw, Phillips Truss Mach, 1/4-20 X .75
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet TE-1000205

Cover, Chain, LH

$

$

Currently unavailable

20

Cub Cadet TE-1000539

Seal, Gas Tank

$

$

Not available

21

Cub Cadet TE-1000540

Cap, Shut Off Seal

$

$

Not available

22

Cub Cadet TE-1000272

Shut Off, Fuel

$

$

Not available

23

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 759-3330

Line, Fuel Tank to Filter

Note: (Cut to suit)

$63.99

$

In Stock, only 2 left!

0

25

Cub Cadet 759-3330

Line, Filter to Engine

Note: (Cut to suit)

$63.99

$

In Stock, only 2 left!

0
