GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Frame & Battery Box Parts Diagram

Grounds Maintenance Tractor

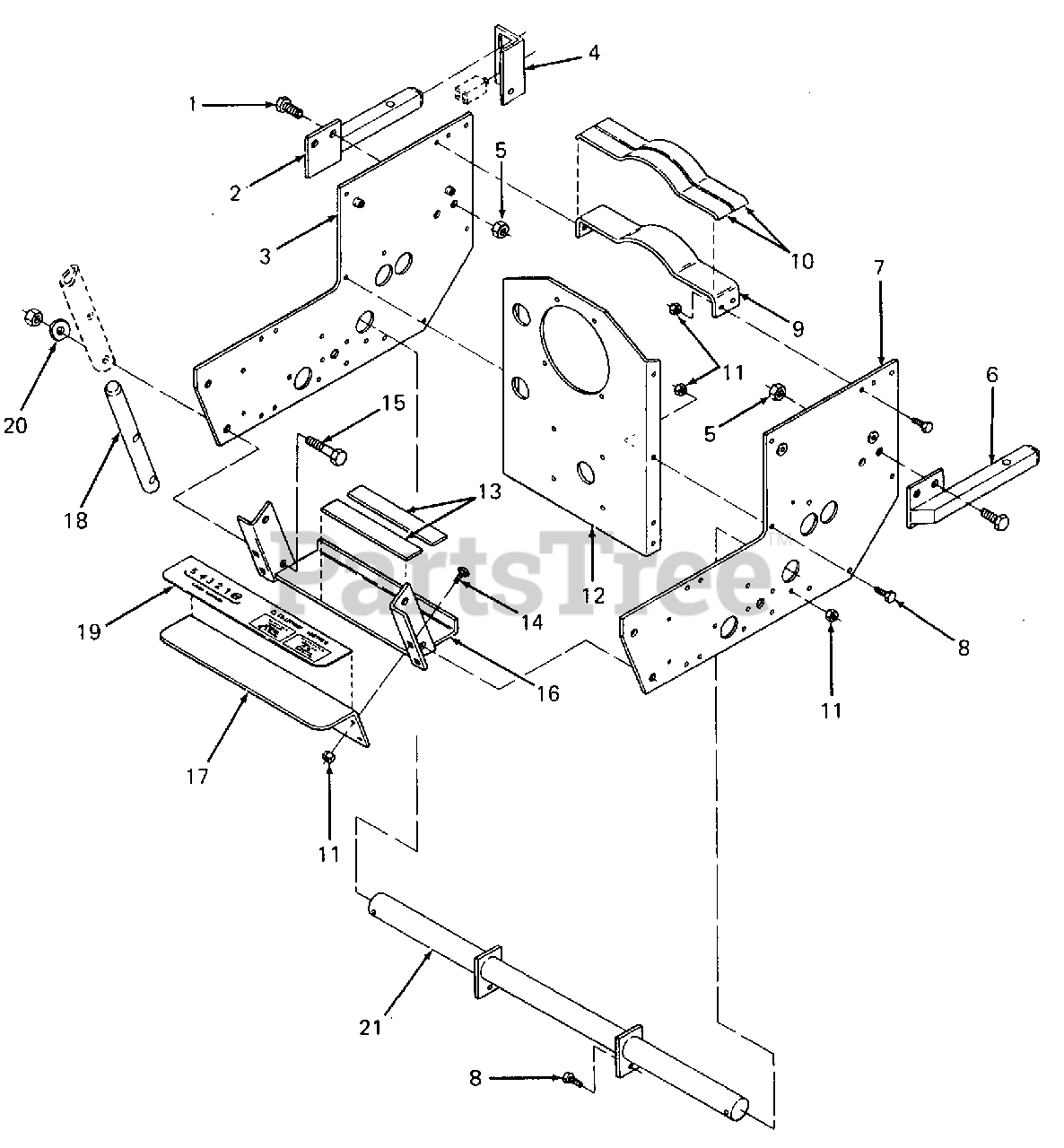

Frame & Battery Box Parts Diagram

  • Title

1

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet TE-1000111

Hitch, LH

$

$

Currently unavailable

3

Cub Cadet TE-1000549

Frame Side, LH

$

$

Currently unavailable

4

Cub Cadet TE-1000812

Bracket, Bypass Switch

$

$

Not available

5

Cub Cadet 712-0384

Nut, Hex Center, Lock, 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

6

Cub Cadet TE-1000112

Hitch, RH

$

$

Currently unavailable

7

Cub Cadet TE-1000550

Frame Side, RH

$

$

Currently unavailable

8

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet TE-1000535

Brace, Fuel Tank

$

$

Not available

10

Cub Cadet TE-1000543

Pad, Fuel Tank

$

$

Currently unavailable

11

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

12

Cub Cadet TE-1000134

Plate, Engine Mtg

$

$

Currently unavailable

13

Cub Cadet TE-1000261

Pad, Battery

$

$

Currently unavailable

14

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 X 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0490

Screw, Hex Cap, 1/2-13 X 2.75 Lg GR2

$

$

Not available

16

Cub Cadet TE-1000202

Box, Battery

$

$

Currently unavailable

17

Cub Cadet TE-1000158

Cover, Battery Box

$

$

Not available

18

Cub Cadet TE-1000403

Shaft, Handlebar Support

$

$

Currently unavailable

19

Cub Cadet TE-1000259

Decal, Gear Shift

$

$

Currently unavailable

20

Cub Cadet TE-1000542

Washer, Belleville, 1/2

$

$

Currently unavailable

21

Cub Cadet TE-1000150

Axle Assy

$

$

Currently unavailable
