GMT 085 (169-110-100) - Cub Cadet Grounds Maintenance Tractor Forward/reverse Transmission Assembly Parts Diagram

Grounds Maintenance Tractor

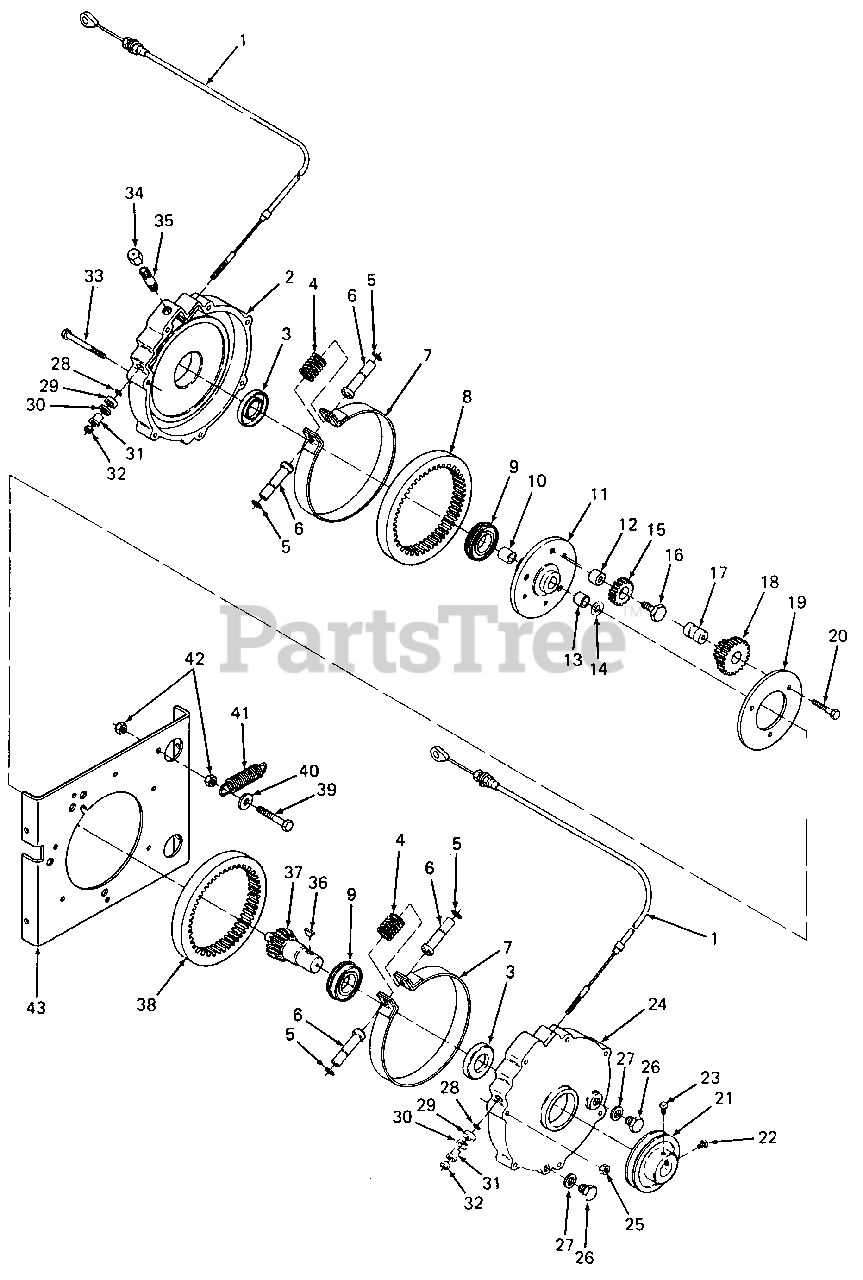

Forward/reverse Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet TE-1000825

Cable, Clutch

$

$

Not available

2

Cub Cadet TE-1000101

Housing, Rear Transmission

$

$

Not available

3

Cub Cadet TE-1000118

Seal, Oil

$

$

Not available

4

Cub Cadet TE-1000105

Spring, Clutch Return

$

$

Currently unavailable

5

Cub Cadet TE-1000237

O-Ring

$

$

Currently unavailable

6

Cub Cadet TE-1000128

Plunger, Clutch Band

$

$

Currently unavailable

7

Cub Cadet TE-1000104

Band, Clutch

$

$

Not available

8

Cub Cadet TE-1000106

Gear, Reverse Drive Ring

$

$

Currently unavailable

9

Cub Cadet TE-1000119

Bearing

$

$

Not available

10

Cub Cadet TE-1000851

Plug, Transmission

$

$

Currently unavailable

11

Cub Cadet TE-1000124

Carrier

$

$

Currently unavailable

12

Cub Cadet TE-1000110

Bushing, Orbit Gear Short

$

$

Currently unavailable

13

Cub Cadet TE-1000832

Bushing, Transmission

$

$

Not available

14

Cub Cadet TE-1000833

Race, Thrust (.060 Thk)

$

$

Not available

15

Cub Cadet TE-1000108

Gear, Reverse Orbit

$

$

Currently unavailable

16

Cub Cadet TE-1000115

Bolt, Reverse Idler

$

$

Not available

17

Cub Cadet TE-1000109

Bushing, Orbit Gear Long

$

$

Currently unavailable

18

Cub Cadet TE-1000107

Gear, Cluster

$

$

Currently unavailable

19

Cub Cadet TE-1000116

Plate, Support

$

$

Currently unavailable

20

Cub Cadet TE-186632

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR8

$

$

Not available

21

Cub Cadet TE-1000145

Pulley

$

$

Not available

22

Cub Cadet TE-102881

Setscrew, 5/16-18 X 1/2 Lg

$

$

Not available

23

Cub Cadet TE-105111

Setscrew, 5/16-18 x 3/8 Lg

$

$

Currently unavailable

24

Cub Cadet TE-1000234

Housing, Front Transmission

$

$

Currently unavailable

25

Cub Cadet 712-0158

Nut, Hex Center Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

26

Cub Cadet TE-181693

Plug, Drain
(Superseded to 710-3194)

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet TE-1000371

Washer, Nylon

$

$

Currently unavailable

28

Cub Cadet TE-1000821

O-Ring

$

$

Not available

29

Cub Cadet TE-1000827

Washer, Cable

$

$

Currently unavailable

30

Cub Cadet TE-1000828

Spring, Cable Washer

$

$

Currently unavailable

31

Cub Cadet TE-1000849

Guide, Cable Seal

$

$

Currently unavailable

32

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 710-0189

Screw, Hex Cap, 5/16-18 X 3.00 Lg GR2

$6.49

$

In Stock, Qty 5

0

34

Cub Cadet TE-1000144

Cap (Vented) Pipe

$

$

Currently unavailable

35

Cub Cadet TE-1000526

Nipple, Pipe, 1/4-18 X 1.5 Lg

$

$

Currently unavailable

36

Cub Cadet 714-0154

Key, Hi-Pro, 1/4 X 3/4

$

$

Not available

37

Cub Cadet TE-1000117

Shaft, Input

$

$

Not available

38

Cub Cadet TE-1000102

Gear, Forward Drive Ring

$

$

Currently unavailable

39

Cub Cadet TE-180132

Screw, Hex Cap, 3/8-16 X 2.25 Lg GR5

$

$

Currently unavailable

40

Cub Cadet 736-0300

Washer, Flat, .385 X .87 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet TE-1000298

Spring, Idler (Extension)

$

$

Not available

42

Cub Cadet 712-0375

Nut, Hex Center Lock, 3/8-16

$4.49

$

In Stock, Qty 6

0

43

Cub Cadet TE-1000103

Bulkhead, Transmission

$

$

Currently unavailable
