GM2515KAW (3070103) - Giant-Vac 25" Walk-Behind Mower, 15hp HANDLE PARTS GROUP Parts Diagram

25" Walk-Behind Mower, 15hp

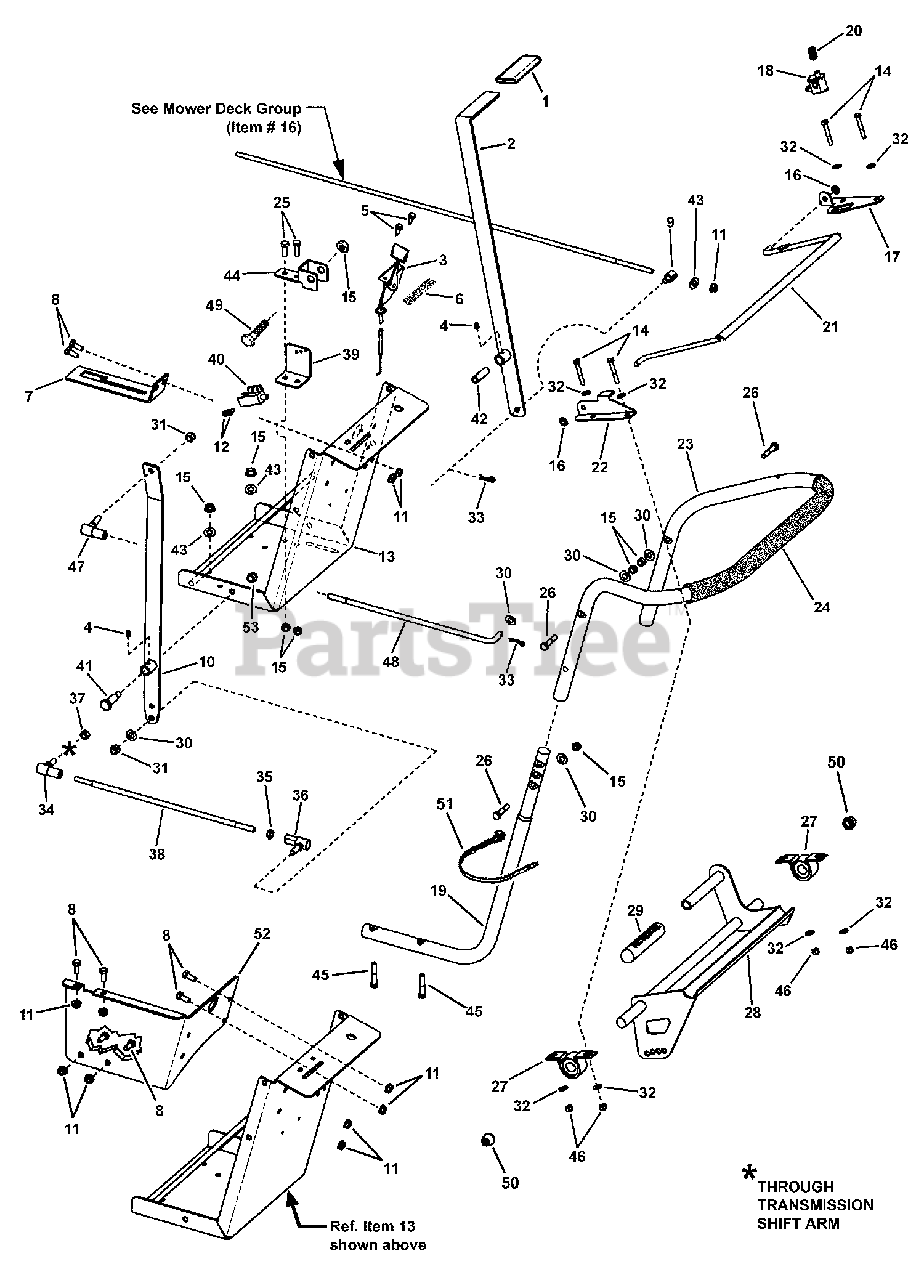

HANDLE PARTS GROUP Parts Diagram

  • Title

1

Giant-Vac 1719965

GRIP, Handle
(Superseded to 1719965SM)

$5.49

$

Usually ships in 2-12 days

0

2

Giant-Vac 7058960

LEVER, Blade Clutch Engage (weldment)

$

$

Not available

3

Giant-Vac 7027394

THROTTLE CONTROL, Briggs 23"

Note: part number stamped on cable

$

$

Not available

3

Giant-Vac 7027802

THROTTLE CONTROL, Kawasaki 38"
(Superseded to 7027802SM)

Note: part number stamped on cable

$30.99

$

Usually ships in 2-12 days

0

3

Giant-Vac 1723686

THROTTLE CONTROL, Honda 34.6"

Note: part number stamped on cable

$

$

Not available

4

Giant-Vac 7014871

LUBE FITTING, 3/16" hole
(Superseded to 7014871SM)

Note: or 7013864

$4.49

$

In Stock, only 4 left!

0

5

Giant-Vac 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap
(Superseded to 703466)

Note: or 7091686

$3.99

$

In Stock, Qty 11

0

6

Giant-Vac 7029167

DECAL, Throttle, Brush Cutter

Note: see Decals group

$

$

Not available

7

Giant-Vac 1723550

BRACKET, Blade Engage Lock
(Superseded to 1723550SM)

$23.99

$

Usually ships in 2-12 days

0

8

Giant-Vac 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Giant-Vac 7028200

SWIVEL, Adjustable, 5/16-18 thread
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

10

Giant-Vac 7059204

LEVER, Transmission Drive (weldment)
(Superseded to 7059204YP)

$125.99

$

Usually ships in 2-12 days

0

11

Giant-Vac 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Giant-Vac 7090913

SCREW, #10C x 1/2" Hex Head Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

13

Giant-Vac 1723553

CONTROL DECK & DASH PANEL (weldment)
(Superseded to 1723553SM)

$114.99

$

Usually ships in 2-12 days

0

14

Giant-Vac 7091813

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

15

Giant-Vac 7091298

NUT 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

16

Giant-Vac 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

17

Giant-Vac 7072487

BRACKET, Handle Pivot, RH
(Superseded to 7072487YP)

$21.99

$

Usually ships in 2-12 days

0

18

Giant-Vac 7023354

SWITCH, OPC, NC
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

19

Giant-Vac 1723569

HANDLE, Lower
(Superseded to 1723569SM)

$51.99

$

Usually ships in 2-12 days

0

20

Giant-Vac 1723564

SPRING, Safety Return
(Superseded to 1723564SM)

$9.99

$

Usually ships in 2-12 days

0

21

Giant-Vac 1723561

WELDMENT, Safety Bar
(Superseded to 1723561SM)

$61.99

$

Usually ships in 2-12 days

0

22

Giant-Vac 7044927

BRACKET, Safety Bar Pivot, LH
(Superseded to 7044927YP)

$18.99

$

Usually ships in 2-12 days

0

23

Giant-Vac 7033736

HANDLE, Upper

Note: or 1723572

$

$

Not available

24

Giant-Vac 1723568

COVER, Foam

$

$

Not available

25

Giant-Vac 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, GR 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

26

Giant-Vac 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

27

Giant-Vac 1723570

BEARING, 3/4 I.D.
(Superseded to 1723570SM)

$

$

Not available

28

Giant-Vac 1725232

WELDMENT, Drive Engagement Bar
(Superseded to 1725232SM)

$108.99

$

Usually ships in 2-12 days

0

29

Giant-Vac 1725233

GRIP, Reverse Handle
(Superseded to 1725233SM)

$3.99

$

Usually ships in 2-12 days

0

30

Giant-Vac 7090122

WASHER, 3/8 SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Giant-Vac 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

32

Giant-Vac 7091294

WASHER, .28 x .63 x .06 Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

33

Giant-Vac 7091310

HAIR PIN, #13
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

34

Giant-Vac 1723554

BALL JOINT, Type R (5/16-24 thread)
(Superseded to 1723554SM)

$16.99

$

Usually ships in 2-12 days

0

35

Giant-Vac 1723556

NUT, 3/8-24LH Hex Jam
(Superseded to 1723556SM)

$

$

Not available

36

Giant-Vac 1723557

BALL JOINT LH (3/8-24 LH thread)
(Superseded to 1723557SM)

$12.99

$

Usually ships in 2-12 days

0

37

Giant-Vac 7092031

NUT, 5/16-24 Hex Jam
(Superseded to 7092031SM)

$3.49

$

Usually ships in 2-12 days

0

38

Giant-Vac 1723555

ROD, Trans. Engage, Lower (3/8-24 & 5/16-24 threads)
(Superseded to 1723555SM)

$16.99

$

Usually ships in 2-12 days

0

39

Giant-Vac 1723351

BRACKET, Deck Safety Switch

$

$

Not available

40

Giant-Vac 1723552

SWITCH, Deck Safety

$

$

Not available

41

Giant-Vac 1723662

BOLT, 1/2 x 1-3/16 to 3/8-16 Shoulder
(Superseded to 1723662SM)

$3.99

$

Usually ships in 2-12 days

0

42

Giant-Vac 7041868

SPACER, Transmission, Express

$

$

Not available

43

Giant-Vac 7090188

WASHER, 5/16" SAE Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

44

Giant-Vac 1723596

BRACKET, Clutch Engage Lever
(Superseded to 1723596SM)

$17.99

$

Usually ships in 2-12 days

0

45

Giant-Vac 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

46

Giant-Vac 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

47

Giant-Vac 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

48

Giant-Vac 1725231

ROD, Trans. Engage, Upper (3/8-24 thread)
(Superseded to 1725231SM)

$42.99

$

Usually ships in 2-12 days

0

49

Giant-Vac 7076938

SCREW, 5/16-18 x 2-1/4" Hex Head Cap, GR 5
(Superseded to 703177)

$3.49

$

Usually ships in 2-12 days

0

50

Giant-Vac 7029495

CAP, Push Plastic (for 3/4" dia. Rod)
(Superseded to 7029495YP)

$3.49

$

Usually ships in 2-12 days

0

51

Giant-Vac 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$1.99

$

In Stock, only 2 left!

0

52

Giant-Vac 1723616

BRACKET, Fuel Tank
(Superseded to 1723616SM)

$59.99

$

Usually ships in 2-12 days

0

53

Giant-Vac 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+
