GM2513H (7085924) - Giant-Vac 25" Walk-Behind Mower, 13hp WIRING SCHEMATIC Parts Diagram

25" Walk-Behind Mower, 13hp

WIRING SCHEMATIC Parts Diagram

  • Title

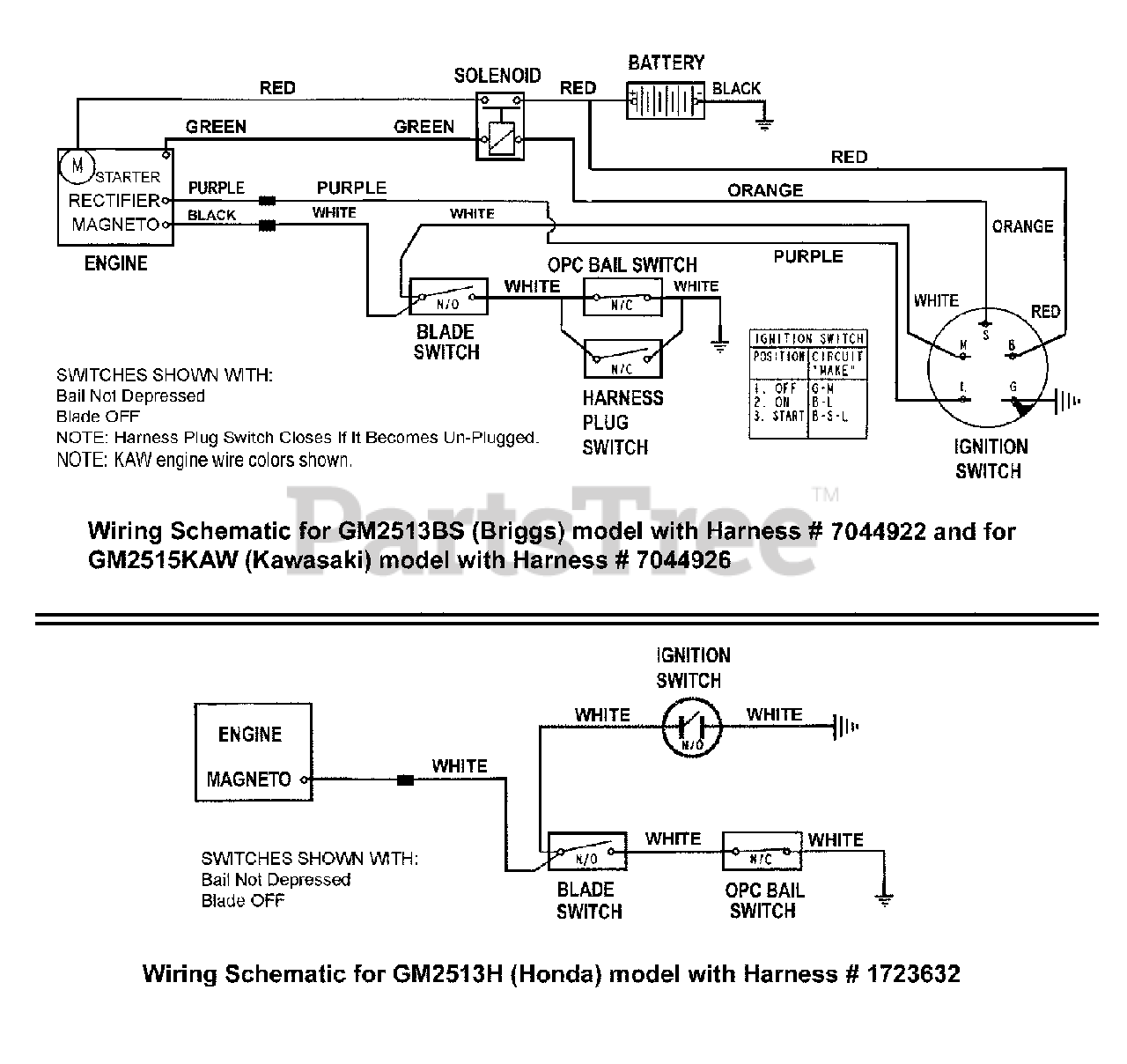

Wiring Schematic includes 3 harnesses

Note: *7044922, 7044926 & 1723632

$

$

Not available
