GM 22600 - Green Machine String Trimmer, 26cc Figure C Parts Diagram

String Trimmer, 26cc

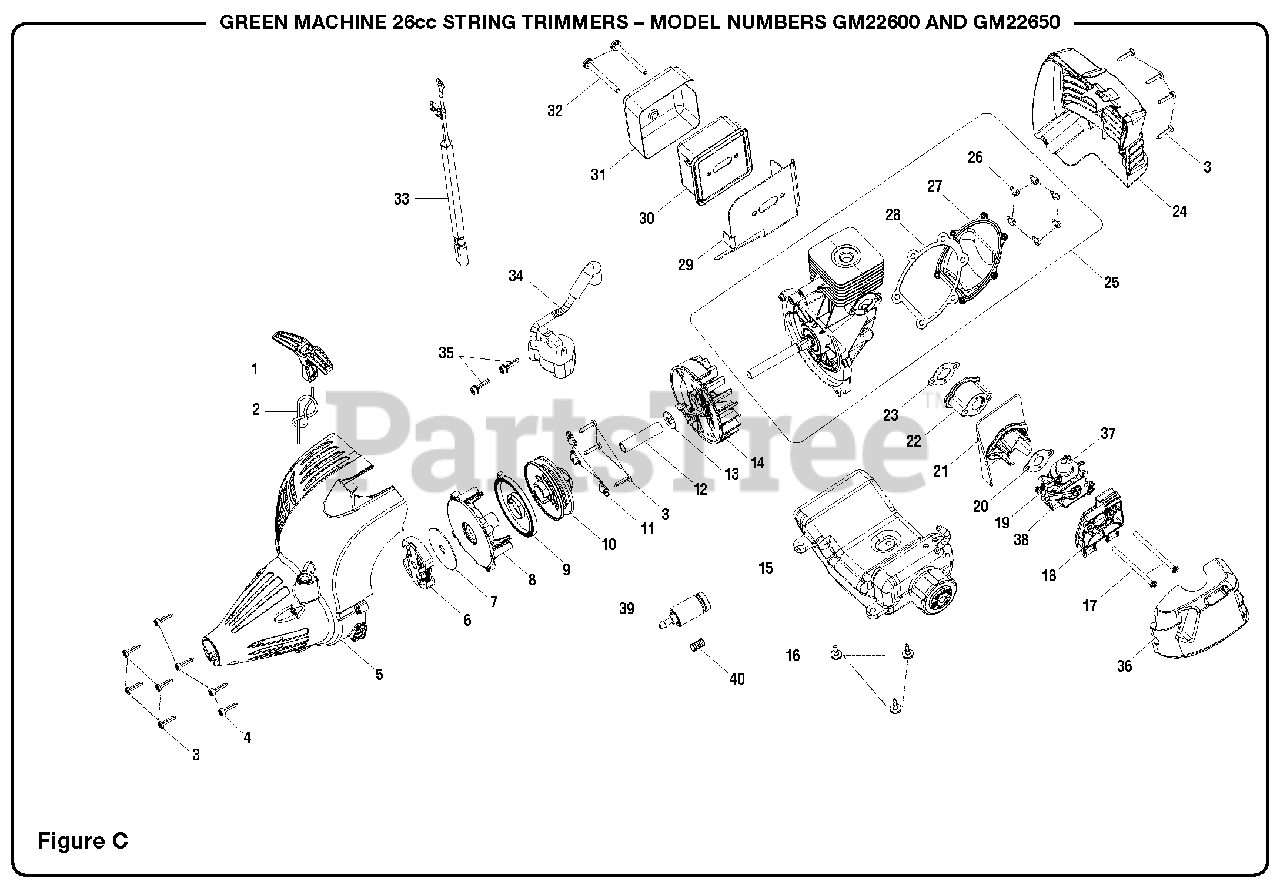

Figure C Parts Diagram

  • Title

1

Homelite 511731008

Starter Grip

$

$

Not available

2

Homelite 900849012

Starter Rope (42 in)

$1.99

$

In Stock, only 1 left!

0

3

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

4

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

5

Homelite 308671038

Starter Housing Assembly

$20.99

$

Usually ships in 3-7 days

0

6

Homelite 300960002

Clutch Assembly

$10.99

$

In Stock, only 1 left!

0

7

Homelite 638090001

Washer

$1.99

$

In Stock, only 4 left!

0

8

Homelite 518692001

Starter Baffle

$2.49

$

In Stock, only 4 left!

0

9

Homelite 638033001

Spring and Container

$5.49

$

In Stock, only 1 left!

0

10

Homelite 310022003

Easy Starter Assembly

$11.99

$

In Stock, only 1 left!

0

11

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

12

Homelite 638284002

Spacer Tube

$

$

Not available

13

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 308811004

Flywheel Assembly

$

$

Not available

15

Homelite 308675039

Fuel Tank and Cap Assembly
(Superseded to 308675051)

Note: (Inc Key Nos 39-40)

$

$

Not available

16

Homelite 660970002

Screw (M4)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 660454007

Bolt (M5 x 70 mm)

$1.99

$

In Stock, only 3 left!

0

18

Homelite 518766001

Air Box Base

$

$

Not available

19

Homelite 308054068

Carburetor Assembly

$

$

Not available

20

Homelite 901552001

Outer Heat Dam Gasket

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 518685001

Air Baffle

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

23

Homelite 901551001

Inner Heat Dam Gasket

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 518504001

Rear Housing

$4.99

$

Usually ships in 3-7 days

0

25

Homelite 308892014

Short Block Assembly

Note: (Inc Key Nos 26-28)

$117.99

$

Usually ships in 3-7 days

0

26

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 638337005

Crankcase Cover

$6.49

$

Usually ships in 3-7 days

0

28

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 2 left!

0

29

Homelite 901452001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 308990016

Muffler Assembly

$28.99

$

Usually ships in 3-7 days

0

31

Homelite 638442001

Muffler Housing

$4.49

$

In Stock, only 1 left!

0

32

Homelite 660638003

Muffler Bolt (10-24 x 2-1/8 in)
(Superseded to PS03999)

$

$

Not available

33

Homelite 308863003

Electrical Lead Wire Assembly

$3.49

$

Usually ships in 3-7 days

0

34

Homelite 850108008

Ignition Module

$32.99

$

Usually ships in 3-7 days

0

35

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 518777005

Air Box Cover

$1.49

$

Usually ships in 3-7 days

0

37

Homelite 561635001

Primer Bulb (Ruixing)

$8.49

$

In Stock, only 2 left!

0

38

Homelite 518824001

Choke Lever (Ruixing)

$

$

Not available

39

Homelite 310976001

Fuel Filter

$

$

Not available

40

Homelite 690765001

Compression Spring

$1.99

$

In Stock, only 4 left!

0
