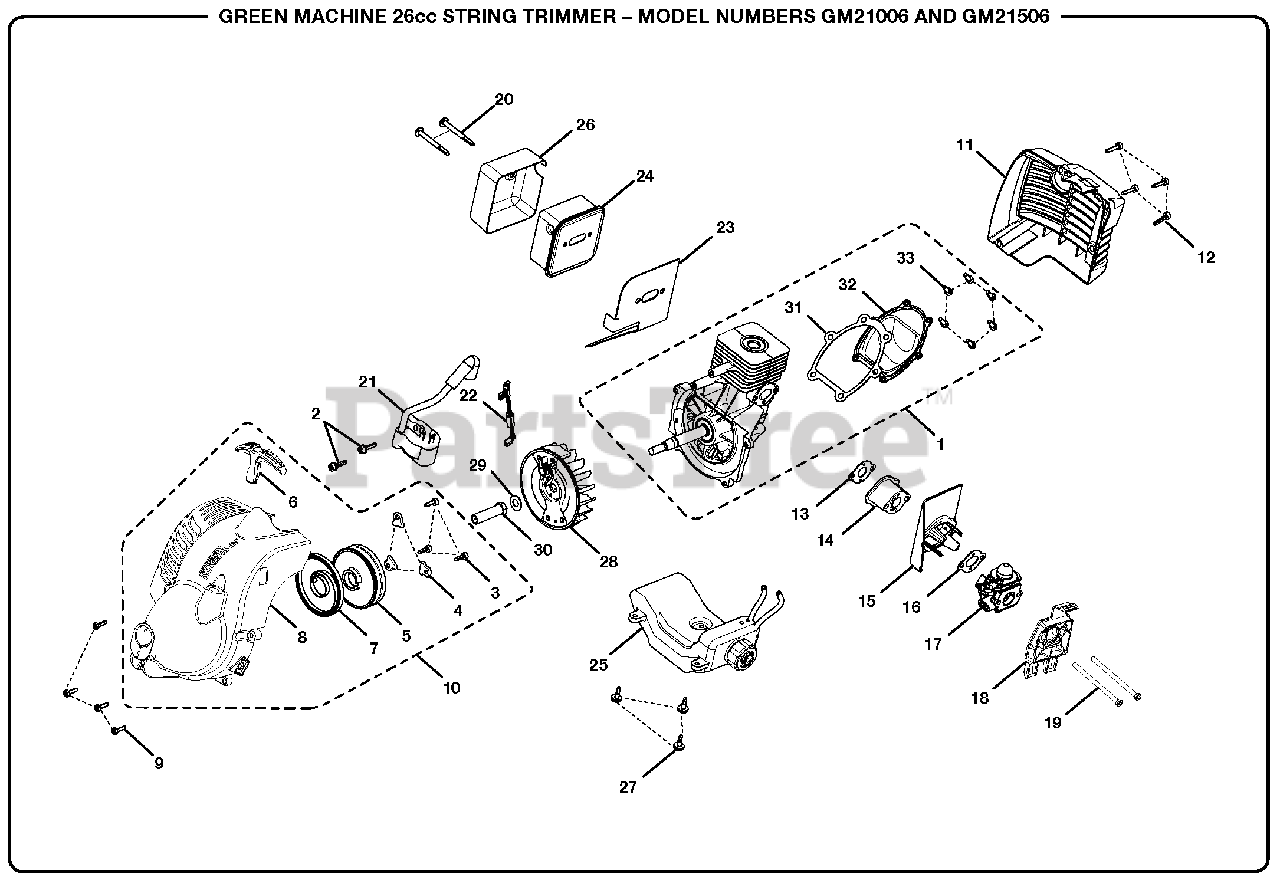

GM 21506 - Green Machine String Trimmer, 26cc General Assembly Parts Diagram

String Trimmer, 26cc

General Assembly Parts Diagram

  • Title

1

Homelite 308891010

Short Block Assembly

Note: (Inc Key Nos 32-34)

$60.99

$

Usually ships in 3-7 days

0

2

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 660967001

Screw (M4 x 14 mm)

$1.99

$

In Stock, only 1 left!

0

4

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

5

Homelite 310022003

Starter Pulley Assembly

$11.99

$

In Stock, only 1 left!

0

6

Homelite 511731008

Pulley Handle

$

$

Not available

7

Homelite 638033001

Spring & Container Assembly

$5.49

$

In Stock, only 4 left!

0

8

Homelite 308672023

Front Housing

$

$

Not available

9

Homelite 660970001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

10

Homelite 308671042

Front Housing Assembly

Note: (Inc Key Nos 3-8; Plus Key Nos 10, 11 and 25 from pages 2 & 3)

$21.99

$

Usually ships in 3-7 days

0

11

Homelite 518504001

Rear Housing

$4.99

$

Usually ships in 3-7 days

0

12

Homelite 660466001

Screw (M4 x 8 mm)

$1.99

$

In Stock, Qty 7

0

13

Homelite 901551001

Intake Gasket

$1.99

$

In Stock, only 3 left!

0

14

Homelite 518497001

Heat Dam

$3.99

$

In Stock, only 1 left!

0

15

Homelite 518685001

Heat Dam Deflector

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308054068

Carburetor

$

$

Not available

18

Homelite 518766001

Choke Base

$

$

Not available

19

Homelite 660454001

Screw (M5 x 70 mm)

$1.49

$

In Stock, only 3 left!

0

20

Homelite 660638003

Screw (10-24 x 2-3/16 in)
(Superseded to PS03999)

$

$

Not available

21

Homelite 850108008

Ignition Module

$32.99

$

Usually ships in 3-7 days

0

22

Homelite 308863001

Lead Assembly

$

$

Not available

23

Homelite 901452001

Muffler Gasket

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308990016

Muffler Assembly

$28.99

$

Usually ships in 3-7 days

0

25

Homelite 308675039

Fuel Tank Assembly w/Cap
(Superseded to 308675051)

$

$

Not available

26

Homelite 638442001

Heat Shield

$4.49

$

In Stock, only 1 left!

0

27

Homelite 660970002

Screw (M4 x 10 mm Shoulder)

$1.99

$

In Stock, only 4 left!

0

28

Homelite 308811004

Flywheel Assembly

$

$

Not available

29

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

30

Homelite 638348001

Drive Connector

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 901550001

Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 4 left!

0

32

Homelite 638337005

Crankcase Cover

$6.49

$

Usually ships in 3-7 days

0

33

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

Homelite 900849012

Starter Rope (42 in)

$1.99

$

In Stock, only 3 left!

0

Homelite 988000725

Operator's Manual

$

$

Currently unavailable
