GM 09000 - Green Machine Blower Vacuum Figure A Parts Diagram

Blower Vacuum

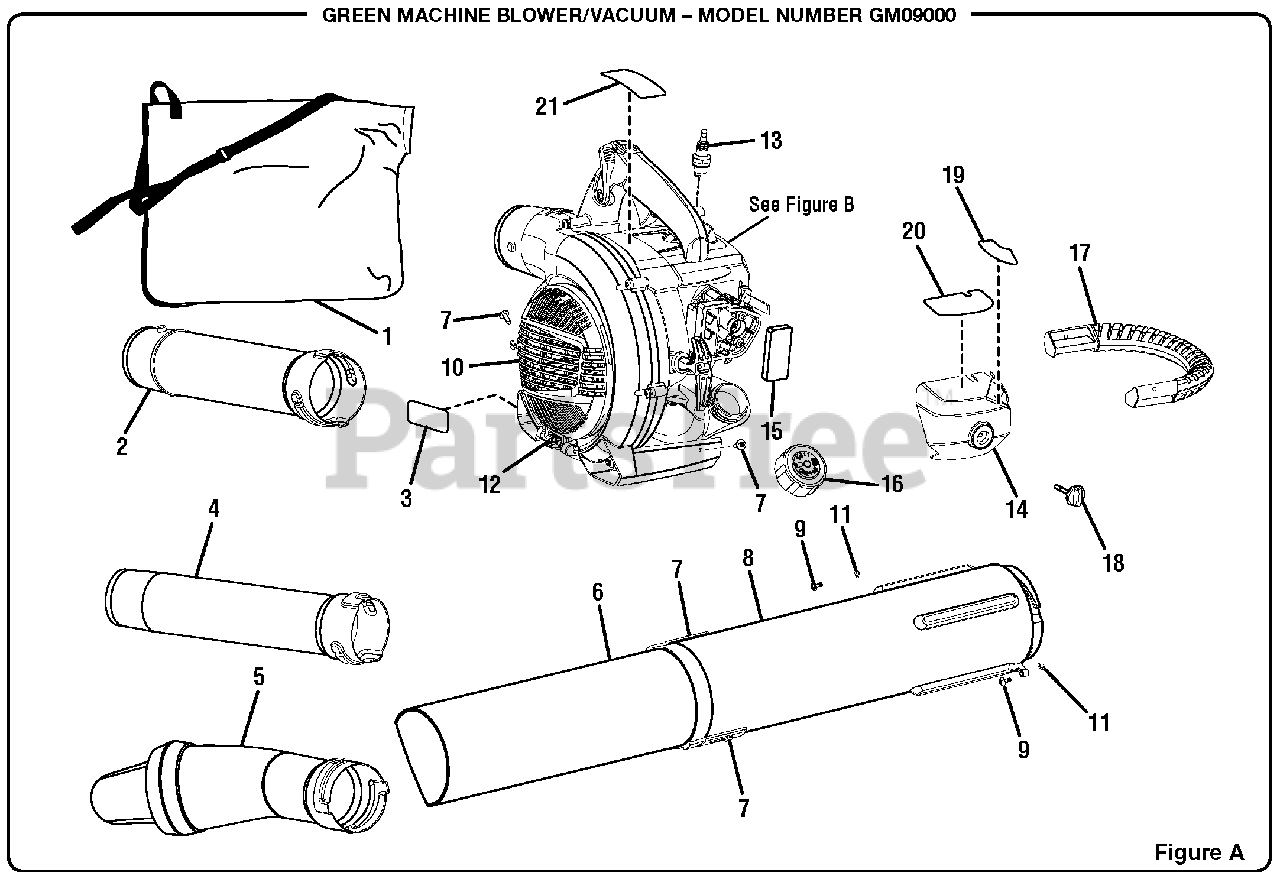

Figure A Parts Diagram

  • Title

1

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$23.99

$

In Stock, only 1 left!

0

2

Homelite 570543002

Upper Blower Tube
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

3

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 580537002

Sweeper Nozzle
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

5

Homelite 580896002

Vacuum Bag Adaptor

$30.99

$

Usually ships in 3-7 days

0

6

Homelite 570562002

Lower Vacuum Tube

$

$

Not available

7

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

8

Homelite 580892002

Upper Vacuum Tube

$12.99

$

In Stock, only 1 left!

0

9

Homelite 660880001

Screw (1/4-20 x 3/4 in.)

$1.99

$

In Stock, only 2 left!

0

10

Homelite 521500001

Vacuum Door

$

$

Not available

11

Homelite 650027001

E-Ring

$1.99

$

In Stock, only 4 left!

0

12

Homelite 678726001

Vacuum Door Spring

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 870174001

Spark Plug (RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

14

Homelite 310311006

Air Filter Cover

$4.49

$

In Stock, only 1 left!

0

15

Homelite 901696001

Filter

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 310816005

Fuel Cap Assembly

$

$

Not available

17

Homelite 521504002

Vacuum Handle

$3.99

$

In Stock, only 1 left!

0

18

Homelite 590461006

Knob

$1.99

$

In Stock, only 2 left!

0

19

Homelite 940868001

Choke Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 941716002

Starting Label

$

$

Not available

21

Homelite 940657043

Warning Label

$

$

Not available

Homelite 988000894

Operator's Manual

Note: Not Shown

$

$

Not available
