GLT 900 - Poulan String Trimmer ENGINE ASSEMBLY Parts Diagram

String Trimmer

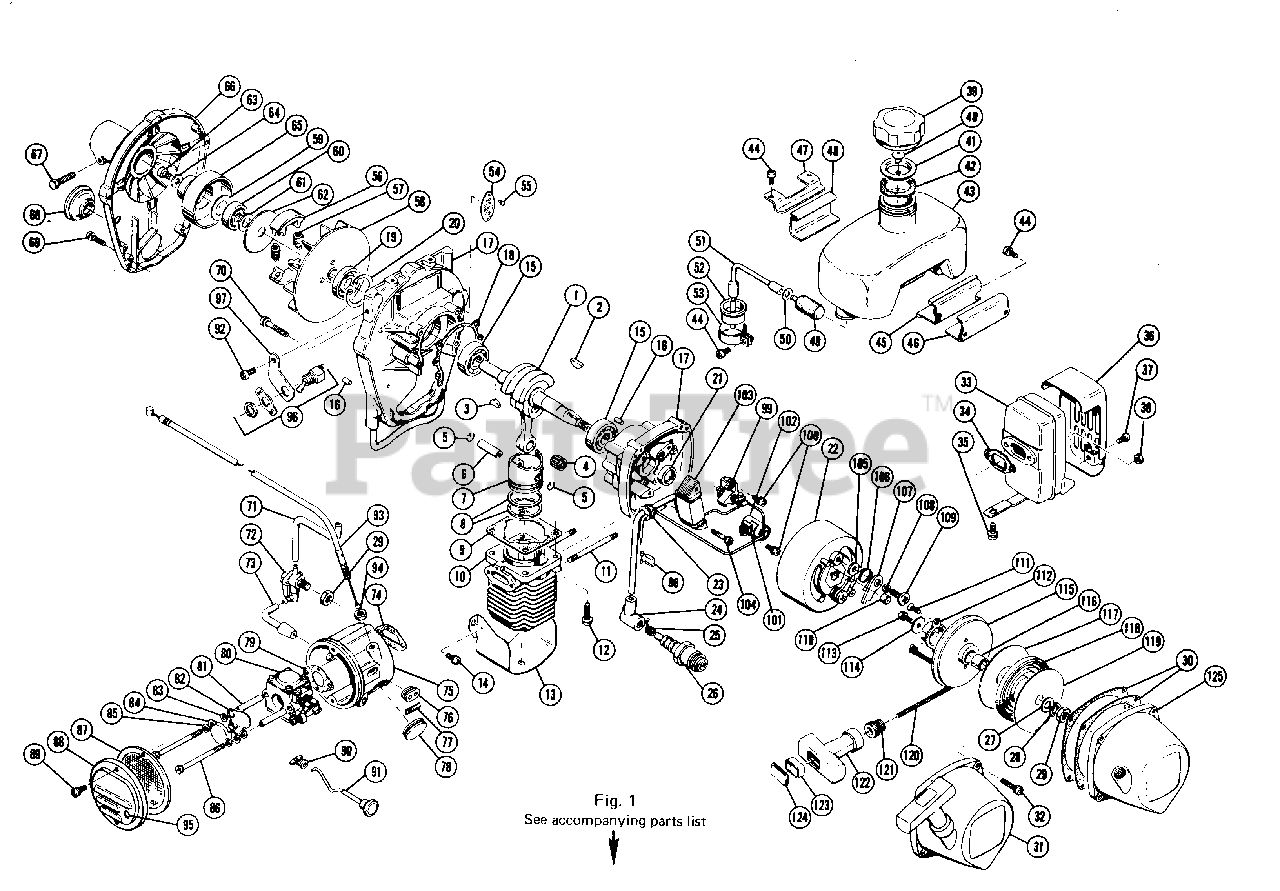

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Poulan 530091431

Crankshaft

$

$

Not available

2

Poulan 530091432

Woodruff key

$

$

Not available

3

Poulan 530091433

Woodruff key

$

$

Not available

4

Poulan 530091434

Roller bearing

$

$

Not available

5

Poulan 530091435

Circlip

$

$

Not available

6

Poulan 530091436

Piston pin

$

$

Not available

7

Poulan 530091437

Piston

$

$

Not available

8

Poulan 530091438

Piston ring

$

$

Not available

9

Poulan 530091439

Cylinder packing

$

$

Not available

10

Poulan 530091441

Cylinder

$

$

Not available

11

Poulan 530091685

Stud bolt

$

$

Not available

12

Poulan 530091686

Screw

$

$

Not available

13

Poulan 530091687

Cylinder cover

$

$

Not available

14

Poulan 530091688

Screw

$

$

Not available

15

Poulan 530091446

Ball bearing

$

$

Not available

16

Poulan 530091447

Knock pin

$

$

Not available

17

Poulan 530091689

Crankcase set

$

$

Not available

18

Poulan 530091449

Crankcase packing

$

$

Not available

19

Poulan 530091451

Oilseal

$

$

Not available

20

Poulan 530091452

Circlip

$

$

Not available

21

Poulan 530091453

Oilseal

$

$

Not available

22

Poulan 530091558

Flywheel

$

$

Not available

23

Poulan 530091454

Rubber bushing

$

$

Not available

24

Poulan 530091455

Spark plug cap

$

$

Not available

25

Poulan 530091456

Spark plug connector

$

$

Not available

26

Poulan 530030005

Spark plug
(Superseded to 952030150)

$3.99

$

In Stock, Qty 20+

0

27

Poulan 530091457

Washer

$

$

Not available

28

Poulan 530091458

Spring washer

$

$

Not available

29

Poulan 530091459

Nut

$

$

Not available

30

Poulan 530091461

Starter case packing

$

$

Not available

31

Poulan 530091691

Starter ass'y

$

$

Not available

32

Poulan 530091692

Screw

$

$

Not available

33

Poulan 530091694

Muffler

$

$

Not available

34

Poulan 530091465

Muffler gasket

$

$

Not available

34A

Poulan 530091694

Muffler assembly with spark arrestor (Not included as original equipment)

$

$

Not available

35

Poulan 530091693

Screw

$

$

Not available

36

Poulan 530091695

Muffler cover

$

$

Not available

37

Poulan 530091464

Screw

$

$

Not available

38

Poulan 530091467

Lock nut

$

$

Not available

39

Poulan 530091696

Fuel tank cap

$

$

Not available

40

Poulan 530091472

Check valve

$

$

Not available

41

Poulan 530091473

Check valve holder

$

$

Not available

42

Poulan 530091474

Fuel tank cap packing

$

$

Not available

43

Poulan 530091697

Fuel tank

$

$

Not available

44

Poulan 530091627

Screw

$

$

Not available

45

Poulan 530091477

Fitting rubber

$

$

Not available

46

Poulan 530091476

Fuel tank holder

$

$

Not available

47

Poulan 530091478

Fuel tank holder

$

$

Not available

48

Poulan 530091479

Rubber seat

$

$

Not available

49

Poulan 530091481

Fuel strainer

$

$

Not available

50

Poulan 530091482

Washer

$

$

Not available

51

Poulan 530091483

Fuel pipe (1)

$

$

Not available

52

Poulan 530091648

Fuel pipe connector

$

$

Not available

53

Poulan 530091698

Band

$

$

Not available

54

Model plate-not serviced

$

$

Not available

55

Rivet-not serviced

$

$

Not available

56

Poulan 530091496

Clutch shoe

$

$

Not available

57

Poulan 530091497

Clutch spring

$

$

Not available

58

Poulan 530091495

Cooling fan

$

$

Not available

59

Poulan 530091499

Spacer

$

$

Not available

60

Poulan 530091703

Ball bearing

$

$

Not available

61

Poulan 530091502

Clutch spacer

$

$

Not available

62

Poulan 530091498

Clutch plate

$

$

Not available

63

Poulan 530091505

H.S.H. bolt

$

$

Not available

64

Poulan 530091504

Washer

$

$

Not available

65

Poulan 530091503

Clutch

$

$

Not available

66

Poulan 530091704

Fan cover

$

$

Not available

67

Poulan 530091705

Bolt

$

$

Not available

68

Poulan 530091508

Spark plug cap cover

$

$

Not available

69

Poulan 530091706

Screw

$

$

Not available

70

Poulan 530091702

Screw

$

$

Not available

71

Poulan 530091483

Fuel pipe (O)

$

$

Not available

72

Poulan 530091699

Fuel cock

$

$

Not available

73

Poulan 530091701

Fuel pipe (O-C)

$

$

Not available

74

Poulan 530091707

Packing

$

$

Not available

75

Poulan 530091631

Carburetor case

$

$

Not available

76

Poulan 530091632

Grommet

$

$

Not available

77

Poulan 530091633

Caution label

$

$

Not available

78

Poulan 530091634

Rubber plug

$

$

Not available

79

Poulan 530019045

Gasket

$

$

Not available

80

Poulan 530035054

Carburetor ass'y

$

$

Not available

81

Poulan 530091708

Carburetor spacer

$

$

Not available

82

Poulan 530091635

Choke shutter

$

$

Not available

83

Poulan 530091636

Washer

$

$

Not available

84

Poulan 530091637

Plate

$

$

Not available

85

Poulan 530091638

Carburetor washer

$

$

Not available

86

Poulan 530091639

Bolt

$

$

Not available

87

Poulan 530091641

Air filter

$

$

Not available

88

Poulan 530091642

Air filter cap

$

$

Not available

89

Poulan 530091643

Screw

$

$

Not available

90

Poulan 530091644

Rubber bushing

$

$

Not available

91

Poulan 530091645

Choke rod

$

$

Not available

92

Poulan 530091494

Screw

$

$

Not available

93

Poulan 530091646

Throttle cable

$

$

Not available

94

Poulan 530091516

Nut

$

$

Not available

95

Poulan 530091647

Carburetor grommet

$

$

Not available

96

Poulan 530091406

Switch-toggle assembly (includes 97)

$12.99

$

Usually ships in 3-10 days

0

97

Poulan 530091362

Plate-switch mounting

$

$

Not available

98

Poulan 530091379

Terminal switch spade

$

$

Not available

99

Poulan 530091552

Contact point set

$

$

Not available

100

Poulan 530091445

Screw

$

$

Not available

101

Poulan 530091554

Oiler

$

$

Not available

102

Poulan 530091715

Condenser

$

$

Not available

103

Poulan 530091556

Ignition coil

$

$

Not available

104

Poulan 530091716

Screw

$

$

Not available

105

Poulan 530091651

Adjusting washer

$

$

Not available

106

Poulan 530091531

Dog spring

$

$

Not available

107

Poulan 530091532

Dog

$

$

Not available

108

Poulan 530091533

Dog spacer

$

$

Not available

109

Poulan 530091534

Screw

$

$

Not available

110

Poulan 530091652

Nylon cap

$

$

Not available

111

Poulan 530091535

Screw

$

$

Not available

112

Poulan 530091709

Pawl catcher

$

$

Not available

113

Poulan 530091711

Screw

$

$

Not available

114

Poulan 530091538

Washer

$

$

Not available

115

Poulan 530091539

Recoil drum

$

$

Not available

116

Poulan 530091541

Bushing

$

$

Not available

117

Poulan 530091542

Side plate

$

$

Not available

118

Poulan 530091543

Rewind spring

$

$

Not available

119

Poulan 530091544

Side plate

$

$

Not available

120

Poulan 530091545

Starter rope

$

$

Not available

121

Poulan 530091712

Rope guide

$

$

Not available

122

Poulan 530091547

Starter grip

$

$

Not available

123

Poulan 530091548

End piece

$

$

Not available

124

Poulan 530091549

Grip cap

$

$

Not available

125

Poulan 530091713

Starter case

$

$

Not available
