GLT 770 - Poulan String Trimmer ENGINE ASSEMBLY Parts Diagram

String Trimmer

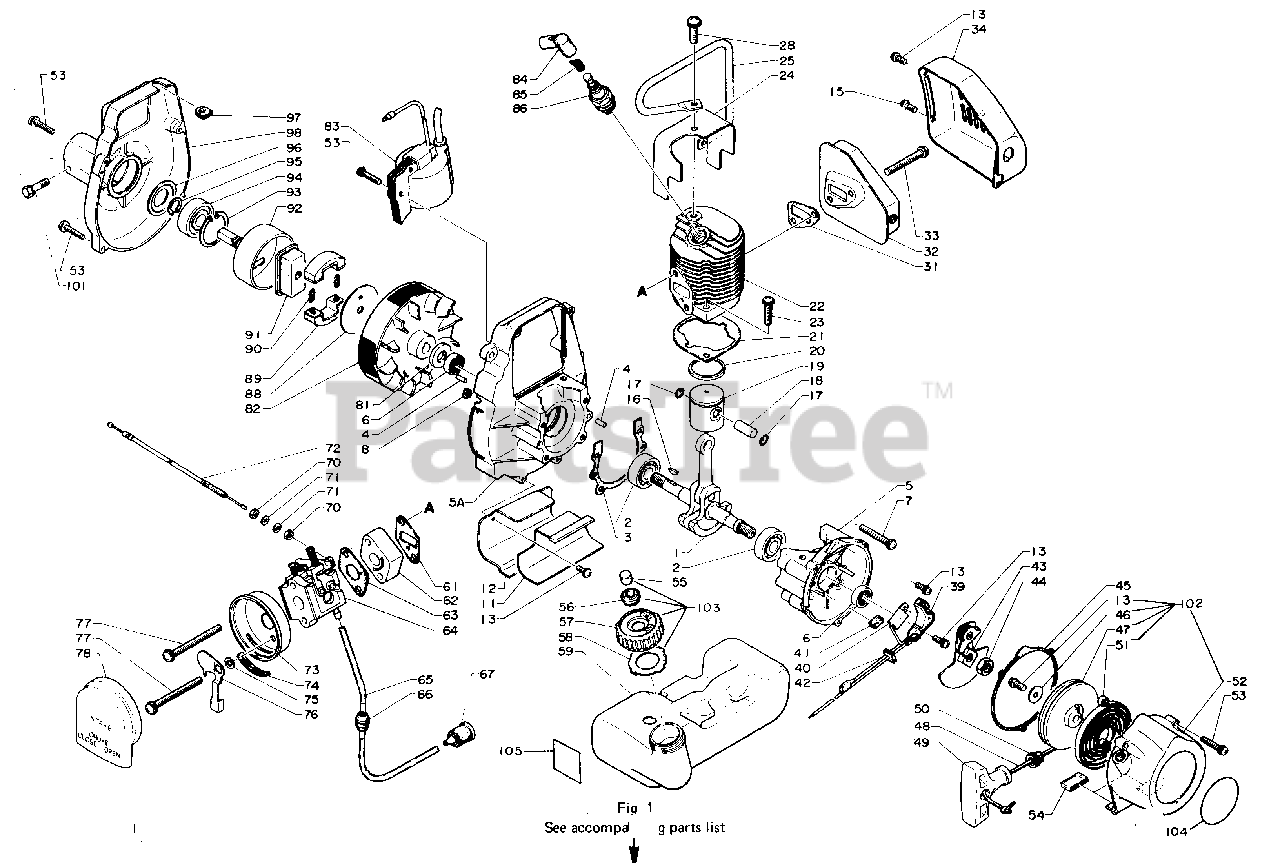

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Poulan 530091833

Crankshaft assembly

$

$

Not available

2

Poulan 530091955

Ball bearing 6200

$

$

Not available

3

Poulan 530091834

Gasket - crankcase

$

$

Not available

4

Poulan 530091447

Knock pin

$

$

Not available

5

Poulan 530091835

Crankcase set

$

$

Not available

6

Poulan 530091836

Oil seal

$

$

Not available

7

Poulan 530091905

Screw 5 x 30 w/W, SW

$

$

Not available

8

Poulan 530091837

Grommet

$

$

Not available

11

Poulan 530091839

Cushion - fuel tank

$

$

Not available

12

Poulan 530091841

Bracket

$

$

Not available

13

Poulan 530091445

Screw 4 x 10 w/W, SW

$

$

Not available

15

Poulan 530091842

Screw 4 x 14 w/W, SW

$

$

Not available

16

Poulan 530091843

Woodruff key

$

$

Not available

17

Poulan 530091435

Circlip - piston pin

$

$

Not available

18

Poulan 530091844

Piston pin

$

$

Not available

19

Poulan 530091845

Piston

$

$

Not available

20

Poulan 530091846

Piston ring

$

$

Not available

21

Poulan 530091847

Gasket - cylinder base

$

$

Not available

22

Poulan 530091848

Cylinder

$

$

Not available

23

Poulan 530091849

Screw 6 x 22 w/W, SW

$

$

Not available

24

Poulan 530091851

Cylinder cover

$

$

Not available

25

Poulan 530091852

Guard

$

$

Not available

28

Poulan 530091939

Screw 5 x 14 w/W, SW

$

$

Not available

31

Poulan 530091853

Gasket - muffler

$

$

Not available

32

Poulan 530091854

Muffler

$

$

Not available

33

Poulan 530091855

Screw 5 x 40 w/W, SW

$

$

Not available

34

Poulan 530091856

Muffler cover

$

$

Not available

39

Poulan 530091857

Breaker point set

$

$

Not available

40

Poulan 530091858

Condenser

$

$

Not available

41

Poulan 530091859

Oil pad

$

$

Not available

42

Poulan 530091861

Grommet

$

$

Not available

43

Poulan 530091862

Ratchet assembly

$

$

Not available

44

Poulan 530091459

Nut 8

$

$

Not available

45

Poulan 530091863

Gasket - starter case

$

$

Not available

46

Poulan 530091538

Washer

$

$

Not available

47

Poulan 530091865

Recoil drum

$

$

Not available

48

Poulan 530091866

Starter rope

$

$

Not available

49

Poulan 530091867

Starter handle

$

$

Not available

50

Poulan 530091546

Rope guide

$

$

Not available

51

Poulan 530091868

Rewind spring

$

$

Not available

52

Poulan 530091869

Starter case

$

$

Not available

53

Poulan 530091463

Screw 4 x 20 w/W, SW

$

$

Not available

54

Poulan 530091871

Cushion - fuel tank

$

$

Not available

55

Poulan 530091927

Filter - check valve

$

$

Not available

56

Poulan 530091926

Check valve

$

$

Not available

57

Poulan 530091925

Cap - fuel tank

$

$

Not available

58

Poulan 530091928

Gasket - fuel tank cap

$

$

Not available

59

Poulan 530091872

Fuel tank

$

$

Not available

61

Poulan 530091873

Gasket

$2.49

$

Usually ships in 3-10 days

0

62

Poulan 530091874

Insulator

$

$

Not available

63

Poulan 530091875

Gasket

$

$

Not available

64

Poulan 530035075

Carburetor assembly

$

$

Not available

65

Poulan 530091876

Fuel pipe

$

$

Not available

66

Poulan 530091877

Grommet - fuel pipe

$

$

Not available

67

Poulan 530091878

Fuel strainer

$

$

Not available

70

Poulan 530091516

Nut 6

$

$

Not available

71

Poulan 530091482

Washer 6

$

$

Not available

72

Poulan 530091818

Throttle cable

$

$

Not available

73

Poulan 530091881

Case - air cleaner

$

$

Not available

74

Poulan 530091882

Grommet

$

$

Not available

75

Poulan 530091883

Washer

$

$

Not available

76

Poulan 530091884

Choke shutter

$

$

Not available

77

Poulan 530091885

Screw 5 x 57 w/W, SW

$

$

Not available

78

Poulan 530091886

Air filter

$

$

Not available

81

Poulan 530091887

Washer

$

$

Not available

82

Poulan 530091888

Flywheel

$

$

Not available

83

Poulan 530091889

Ignition coil

$

$

Not available

84

Poulan 530091455

Cap - spark plug

$

$

Not available

85

Poulan 530091456

Coil spring - plug cap

$

$

Not available

86

Poulan 530030005

Spark plug
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

88

Poulan 530091891

Side plate

$

$

Not available

89

Poulan 530091892

Clutch plate

$

$

Not available

90

Poulan 530091893

Clutch spring

$

$

Not available

91

Poulan 530091894

Clutch boss

$

$

Not available

92

Poulan 530091895

Clutch drum

$

$

Not available

93

Poulan 530091452

Circlip 32

$

$

Not available

94

Poulan 530091896

Ball bearing 6201

$

$

Not available

95

Poulan 530091897

Circlip 11

$

$

Not available

96

Poulan 530091898

Stopper

$

$

Not available

97

Poulan 530091899

Grommet

$

$

Not available

98

Poulan 530091901

Fan cover

$

$

Not available

101

Poulan 530092028

Bolt 5 x 20 w/W, SW

$

$

Not available

102

Poulan 530091864

Recoil starter assembly, includes 13, 46, 47, 48, 49, 50, 51 & 52

$

$

Not available

103

Poulan 530091924

Cap assembly - fuel tank includes 55, 56, 57 & 58

$

$

Not available

104

Poulan 530024259

Decal starter housing

$

$

Not available

105

Poulan 530024426

Decal starting instructions

$

$

Not available
