GHT 195 LE - Weed Eater Hedge Trimmer, Type 4 Engine Type 4 Parts Diagram

Hedge Trimmer, Type 4

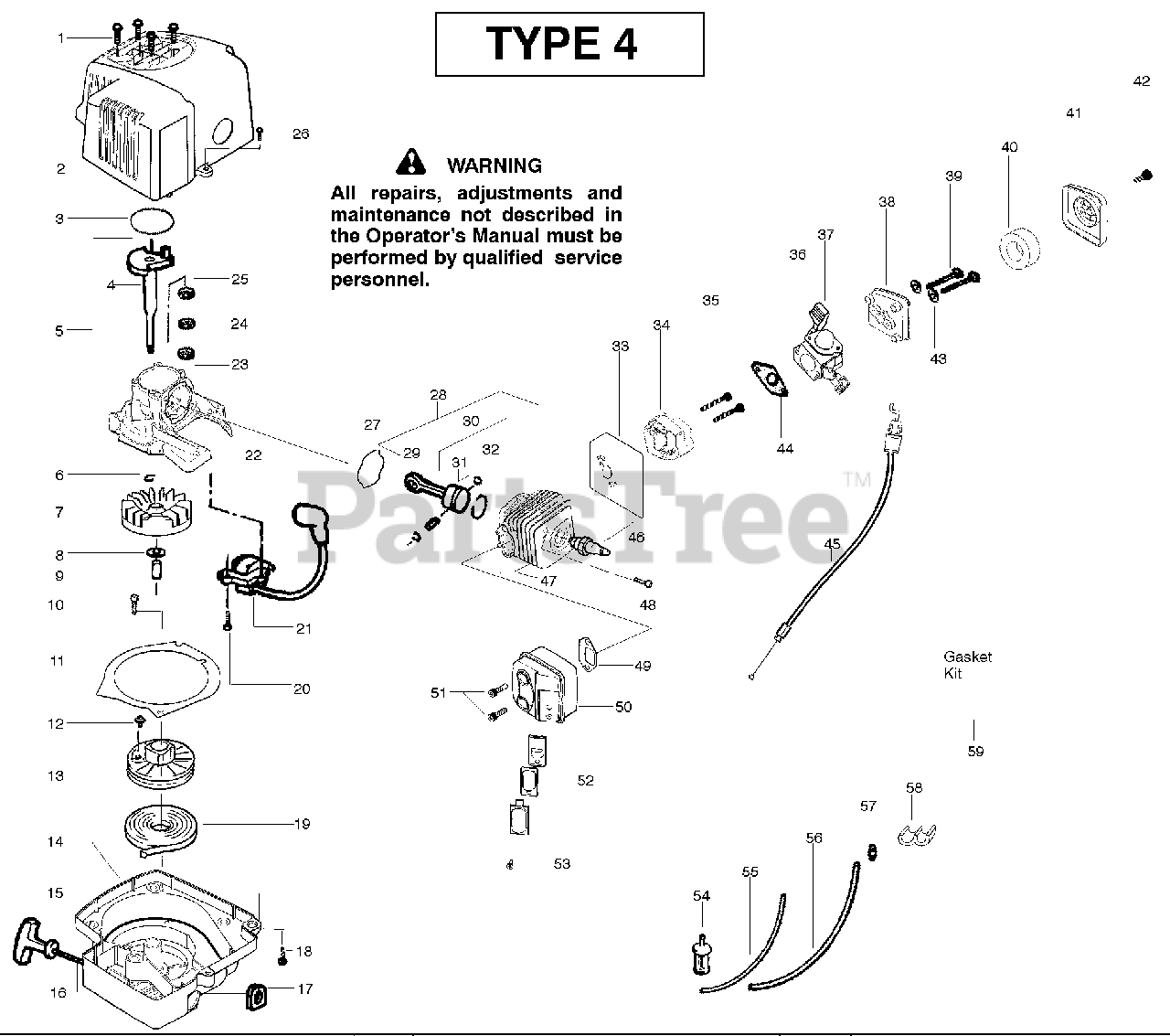

Engine Type 4 Parts Diagram

  • Title

1

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

2

Poulan 530058573

Assy-Shroud/H'shield

$

$

Not available

3

Poulan 530071486

O-Ring-C'case (kit)

$10.99

$

Usually ships in 3-10 days

0

4

Poulan 530012571

Assy-Crankshaft
(Superseded to 545145801)

$24.99

$

Usually ships in 3-10 days

0

5

Poulan 530071681

Assy-C/case-C/shaft

Note: (Incl. #4,6 & 22-25)

$

$

Not available

6

Poulan 530015941

Ring-Retainer-C'shaft

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530071487

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

8

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530055729

Spacer-Flywheel

$9.22

$

Usually ships in 3-10 days

0

10

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530055681

Plate-Baffle

$

$

Not available

12

Poulan 530015882

Screw

$

$

Not available

13

Poulan 530069353

Kit-Starter Pulley

Note: (Incl.# 12)

$

$

Not available

14

Poulan 545037404

Assy-Fan Housing

$

$

Not available

15

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

17

Poulan 530019182

Grommet-Ignition Module

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530016386

Screw-(f/hsg to shrd)

$8.99

$

In Stock, only 1 left!

0

19

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

20

Poulan 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

21

Poulan 530054137

Ignition Module

$

$

Not available

22

Poulan 530012510

Assy-Crankcase

$

$

Not available

23

Poulan 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

24

Poulan 530019264

Seal-Crankcase

$7.49

$

In Stock, only 1 left!

0

25

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

26

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

27

Poulan 530071486

Seal-Cylinder (kit)

$10.99

$

Usually ships in 3-10 days

0

28

Poulan 530071785

Kit-Piston/Rod Assy.

Note: (Incl. 29 & 30)

$47.99

$

Usually ships in 3-10 days

0

29

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

30

Poulan 530071833

Kit-Piston

Note: (Incl. 31 & 32)

$37.99

$

Usually ships in 3-10 days

0

31

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

32

Poulan 530055120

Ring-Piston
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

33

Poulan 530071486

Gasket-Carb. Adapt.(kit)

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 530057634

Adapter-Carburetor

$12.99

$

Usually ships in 3-10 days

0

35

Poulan 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530071633

Kit-Carburetor Ass'y. (C1U-W13A)

$53.99

$

In Stock, only 1 left!

0

37

Poulan 530071718

Kit-Choke Lever

$20.99

$

In Stock, only 4 left!

0

38

Poulan 530055680

Air Box

$4.99

$

In Stock, only 2 left!

0

39

Poulan 530016429

Screw

$6.49

$

In Stock, Qty 6

0

40

Poulan 530047932

Air Filter Foam

$5.99

$

In Stock, only 1 left!

0

41

Poulan 530055679

Air Filter Cover

$

$

Not available

42

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 6

0

43

Poulan 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

44

Poulan 530071486

Gasket-Carburetor(kit)

$10.99

$

Usually ships in 3-10 days

0

45

Poulan 530058756

Assy-Throttle Cable

$20.99

$

Usually ships in 3-10 days

0

46

Poulan 952030249

Spark Plug(RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

47

Poulan 530012500

Cylinder

$20.99

$

Usually ships in 3-10 days

0

48

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 7

0

49

Poulan 530071486

Gasket-Muffler (kit)

$10.99

$

Usually ships in 3-10 days

0

50

Poulan 530071682

Kit-Muffler

Note: (incl. # 49,51.52,53)

$

$

Not available

51

Poulan 530016338

Bolt-Muffler

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530071544

Kit-Spark Arrestor

$

$

Not available

53

Poulan 530015241

Screw

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530095992

Assy-Pick-up

$9.99

$

In Stock, Qty 11

0

55

Poulan 530069247

Kit-Fuel Line(small)

$7.99

$

In Stock, Qty 20+

0

56

Poulan 530069216

Kit-Fuel Line(large)

$11.99

$

In Stock, Qty 20+

0

57

Poulan 530023877

Fitting-Fuel Line

$5.99

$

In Stock, Qty 18

0

58

Poulan 530016103

Clip-Retainer

$6.49

$

In Stock, Qty 5

0

59

Poulan 530071486

Kit-Gasket

Note: (Incl. #3,27,33,44,49)

$10.99

$

Usually ships in 3-10 days

0

59

Poulan 545186732

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0
