GHT 195 LE - Weed Eater Hedge Trimmer, Type 4 Cutting Equipment Type 4 Parts Diagram

Hedge Trimmer, Type 4

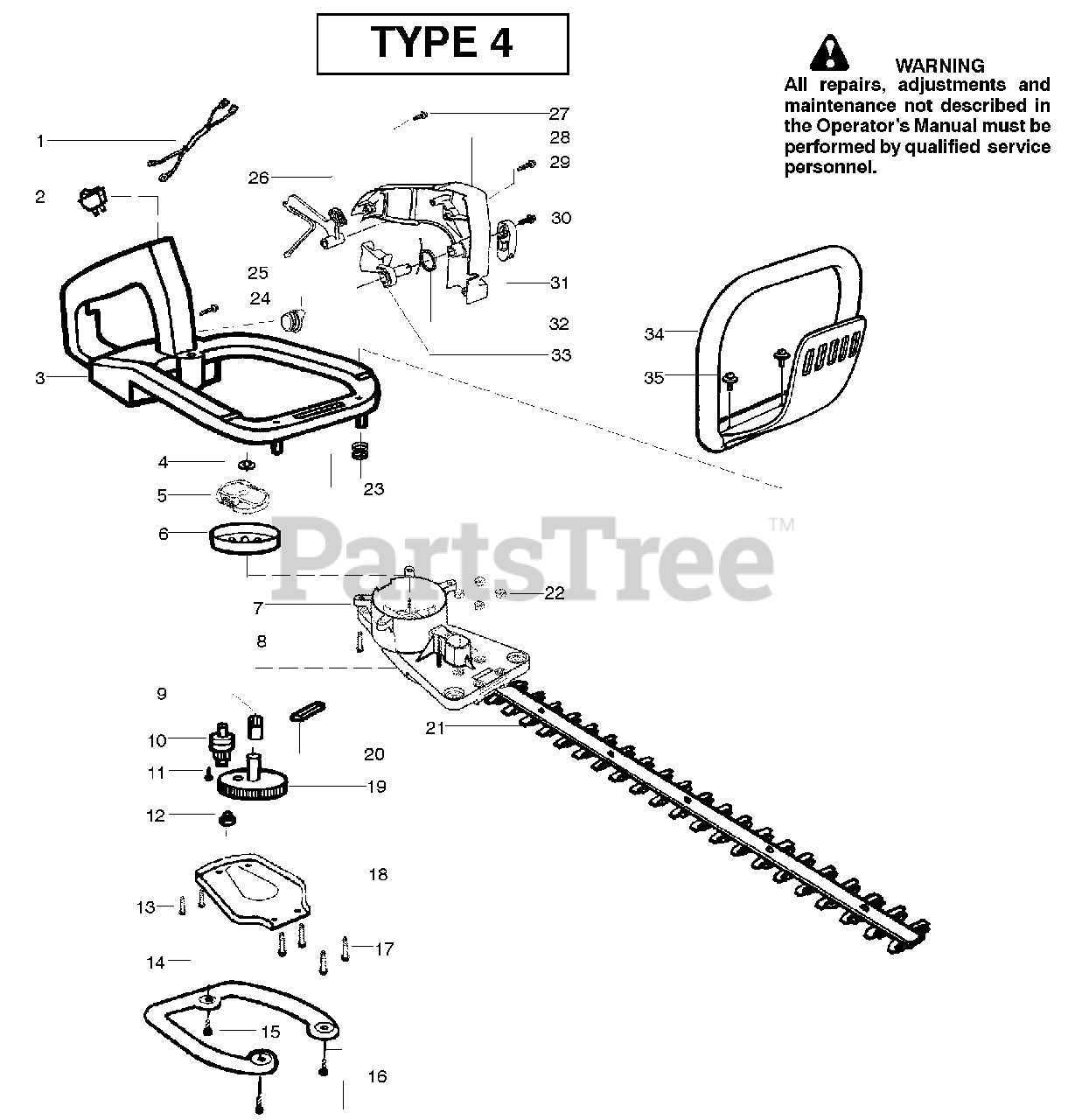

Cutting Equipment Type 4 Parts Diagram

  • Title
1

Poulan 530054133

Assy-Leadwire/Switch
(Superseded to 545172901)

Note: (Incl.#2)

$13.84

$

Usually ships in 3-10 days

0

2

Poulan 530029954

Switch-Ignition

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530071656

Assy-Rear Handle & Tank
(Superseded to 530071655)

$

$

Not available

4

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 5

0

5

Poulan 530071803

Kit-Clutch Assy.
(Superseded to 530057740)

$24.99

$

Usually ships in 3-10 days

0

6

Poulan 530150583

Assy-Drum

$13.99

$

Usually ships in 3-10 days

0

7

Poulan 530071931

Assy-Gear Box

Note: (incl.# 9-11,13,17,22)

$

$

Not available

$6.49

$

In Stock, only 3 left!

0

9

Poulan 530016013

Bearing-Gear

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530096009

Assy-Pinion

$24.99

$

Usually ships in 3-10 days

0

11

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

12

Poulan 530032121

Bushing-Blade

$

$

Not available

13

$6.49

$

In Stock, Qty 8

0

14

Poulan 530036046

Plate-Isolator

$7.49

$

Usually ships in 3-10 days

0

15

$6.49

$

In Stock, only 1 left!

0

16

$4.99

$

In Stock, only 1 left!

0

17

$6.49

$

In Stock, Qty 5

0

18

Poulan 530029916

Cover-Gear Box Plate

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530071690

Kit-Drive Gear Ass'y.

Note: (Incl. #12)

$

$

Not available

20

Poulan 530029948

Seal-Blade (Felt)

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530403228

Assy-Blade 19"

$

$

Not available

$

$

Not available

23

$3.99

$

In Stock, only 4 left!

0

24

Poulan 530014871

Assy-Fuel Cap
(Superseded to 577858601)

$9.49

$

In Stock, Qty 6

0

25

$6.49

$

In Stock, only 1 left!

0

26

Poulan 530053900

Lockout-Throttle

$

$

Not available

27

$4.99

$

In Stock, only 1 left!

0

28

Poulan 545008001

Kit-Handle Cover

$

$

Not available

29

$6.49

$

In Stock, Qty 8

0

30

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530057818

Lever-Trigger

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530036123

Spring-Trigger

$3.99

$

In Stock, only 4 left!

0

33

$3.99

$

In Stock, only 2 left!

0

34

Poulan 530094992

Handle-Front

$

$

Not available

35

$3.99

$

Usually ships in 3-10 days

0
