GH 30 (UT-26155) - Green Machine Hedge Trimmer Gearcase - Blades Parts Diagram

Hedge Trimmer

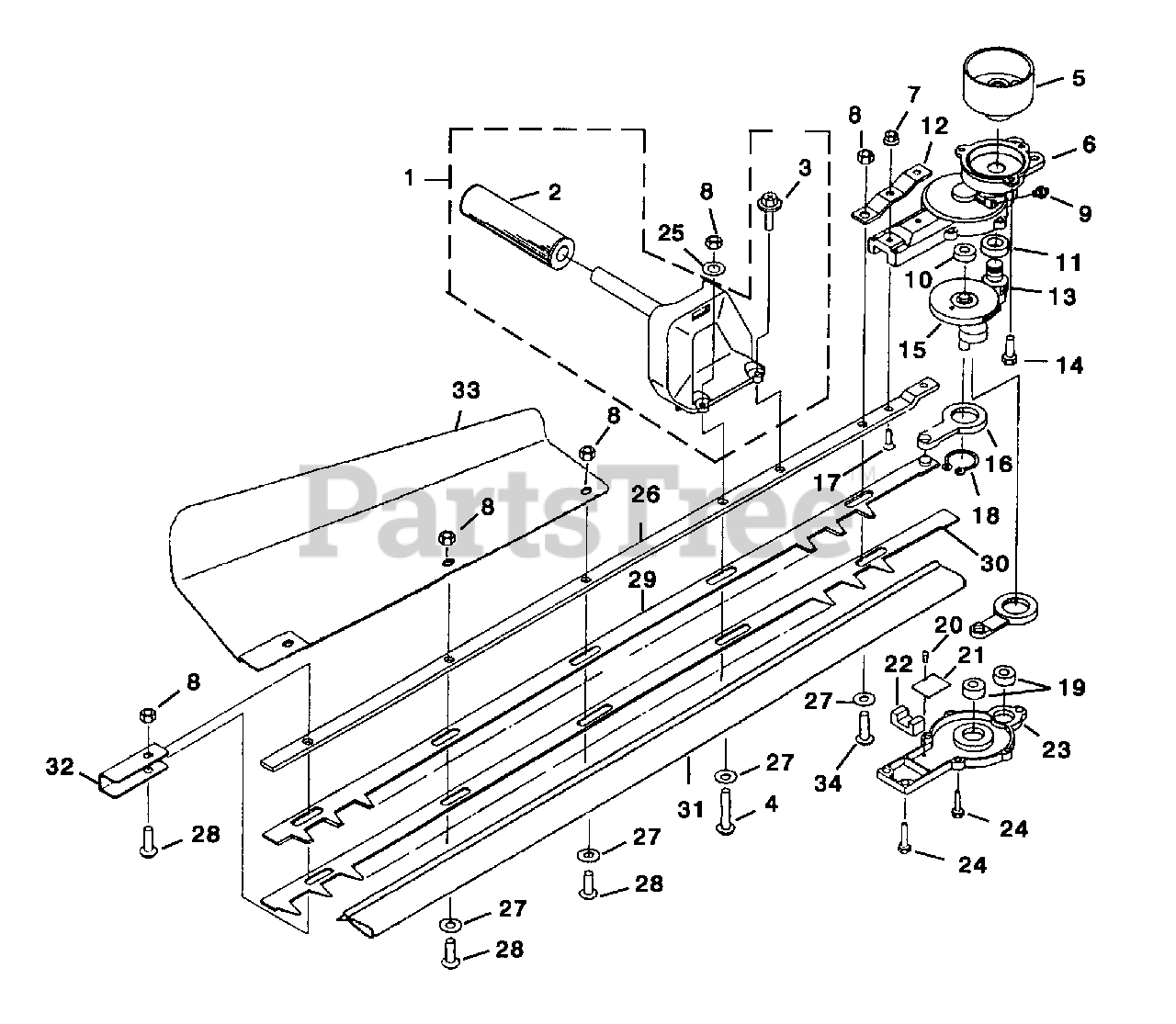

Gearcase - Blades Parts Diagram

  • Title
1

Homelite UP00581

FRONT HANDLE ASSEMBLY

$

$

Not available

$

$

Not available

3

Homelite PS01014

SCREW (M5 x 20 SW & PW)

Note: Torque Specs: 36 - 44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

4

Homelite PS01015

SCREW (L-29)

$

$

Not available

5

Homelite PS01016

DRUM-Clutch

$

$

Not available

6

Homelite PS01017

CASE-Upper

$

$

Not available

7

Homelite PS00895

NUT-Flange (MS)

$

$

Not available

8

Homelite PS00913

NUT (M6)

Note: Torque Specs: 62 - 78 In/Lbs, 7.0 - 8.8 Nm

$

$

Not available

9

Homelite PS00897

NIPPLE-Grease (M6)

$

$

Not available

10

$

$

Not available

11

$

$

Not available

12

Homelite PS01023

PLATE-Reinforcing

$

$

Not available

13

Homelite PS01024

GEAR-Pinion

$

$

Not available

14

Homelite PS00896

BOLT (M6 x 15 W SW)

$

$

Not available

15

Homelite PS01026

GEAR CRANK ASSEMBLY

$

$

Not available

$

$

Not available

17

Homelite PS01028

SCREW (MS x 20)

Note: Torque Specs: 36 - 44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

18

Homelite PS00904

SNAP RING

$

$

Not available

19

$

$

Not available

20

Homelite PS00907

SCREW (M3 x 5)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite PS00908

PLATE-Rod Slide

$

$

Not available

$

$

Not available

23

Homelite PS00910

LOWER CASE

$

$

Not available

24

Homelite PS00911

BOLT (M5 x 16 W SW)

Note: Torque Specs: 36 - 44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

25

$

$

Not available

26

Homelite PS01038

GUIDE PLATE

$

$

Not available

27

Homelite PS00915

WASHER-Blade Side

$

$

Not available

28

Homelite PS01046

SCREW (L-22)

$

$

Not available

29

Homelite PS01041

BLADE-Upper

$

$

Not available

30

Homelite PS01042

BLADE-Lower

$

$

Not available

31

Homelite PS01043

BLADE COVER

$

$

Not available

32

Homelite PS01044

BLADE-End Reinforcer

$

$

Not available

33

Homelite PS01045

RECEIVER PLATE

$

$

Not available

34

Homelite PS01046

SCREW (L-22)

$

$

Not available
