GH 30 (UT-26155) - Green Machine Hedge Trimmer Exhaust System Parts Diagram

Hedge Trimmer

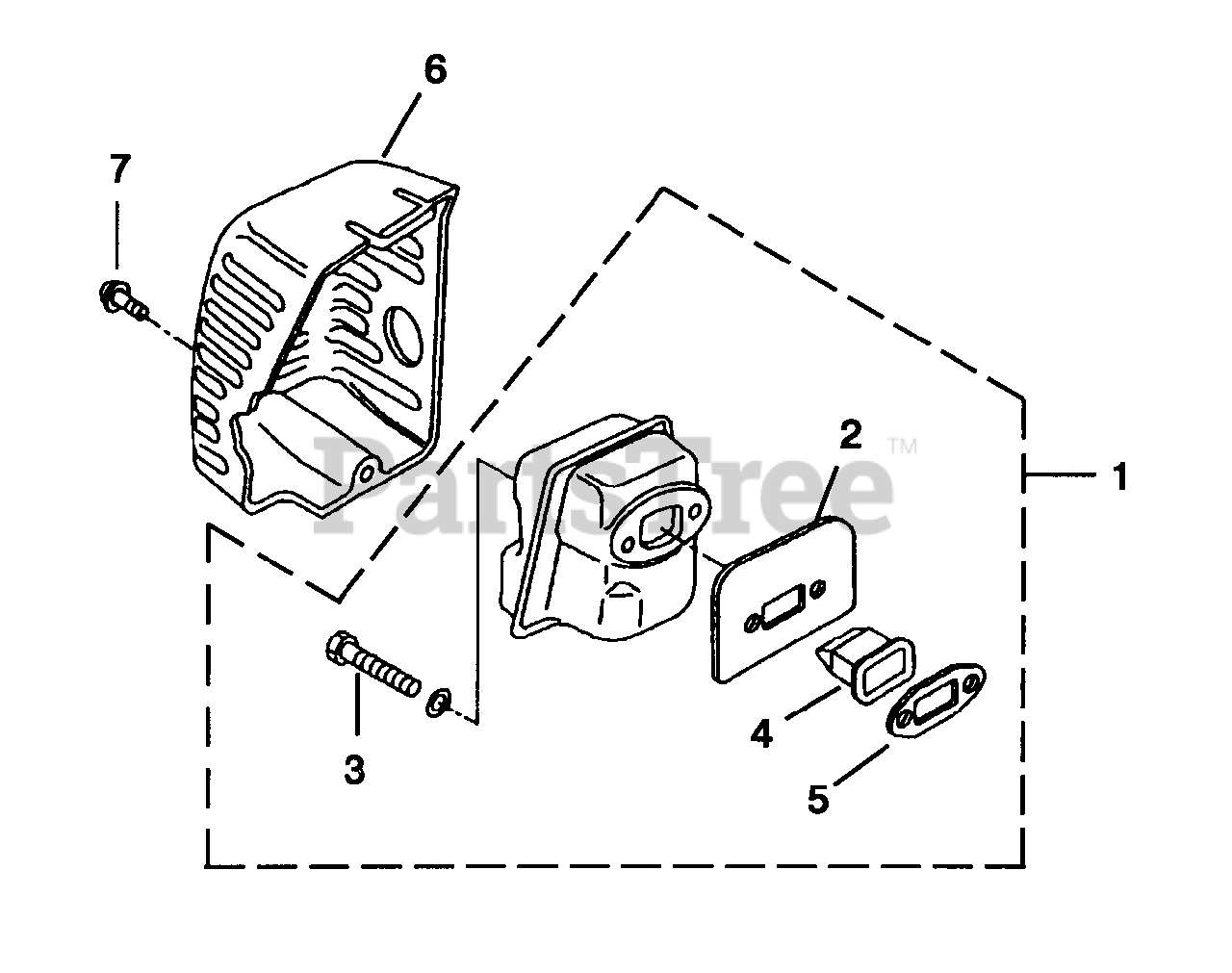

Exhaust System Parts Diagram

  • Title

1

Homelite UP00547

MUFFLER KIT

$

$

Not available

2

Homelite PS00858

GASKET-Muffler

$

$

Not available

3

Homelite PS00859

SCREW-Socket Hd (MS x 50)

Note: Torque Specs: 61-69 In/Lbs, 6.9 - 7.8 Nm

$

$

Not available

4

Homelite PS01367

SPARK ARRESTOR SCREEN

$

$

Not available

5

Homelite PS01368

GASKET-Muffler

$

$

Currently unavailable

6

Homelite PS00860

MUFFLER COVER

$

$

Not available

7

Homelite PS00861

SCREW ASSEMBLY (M5 x 16)

Note: Torque Specs: 31-39 In/Lbs, 3.5 - 4.4 Nm; Red 262 Loctite Required

$

$

Not available
