GH 24 (UT-26154) - Green Machine Hedge Trimmer Gearcase - Blades Parts Diagram

Hedge Trimmer

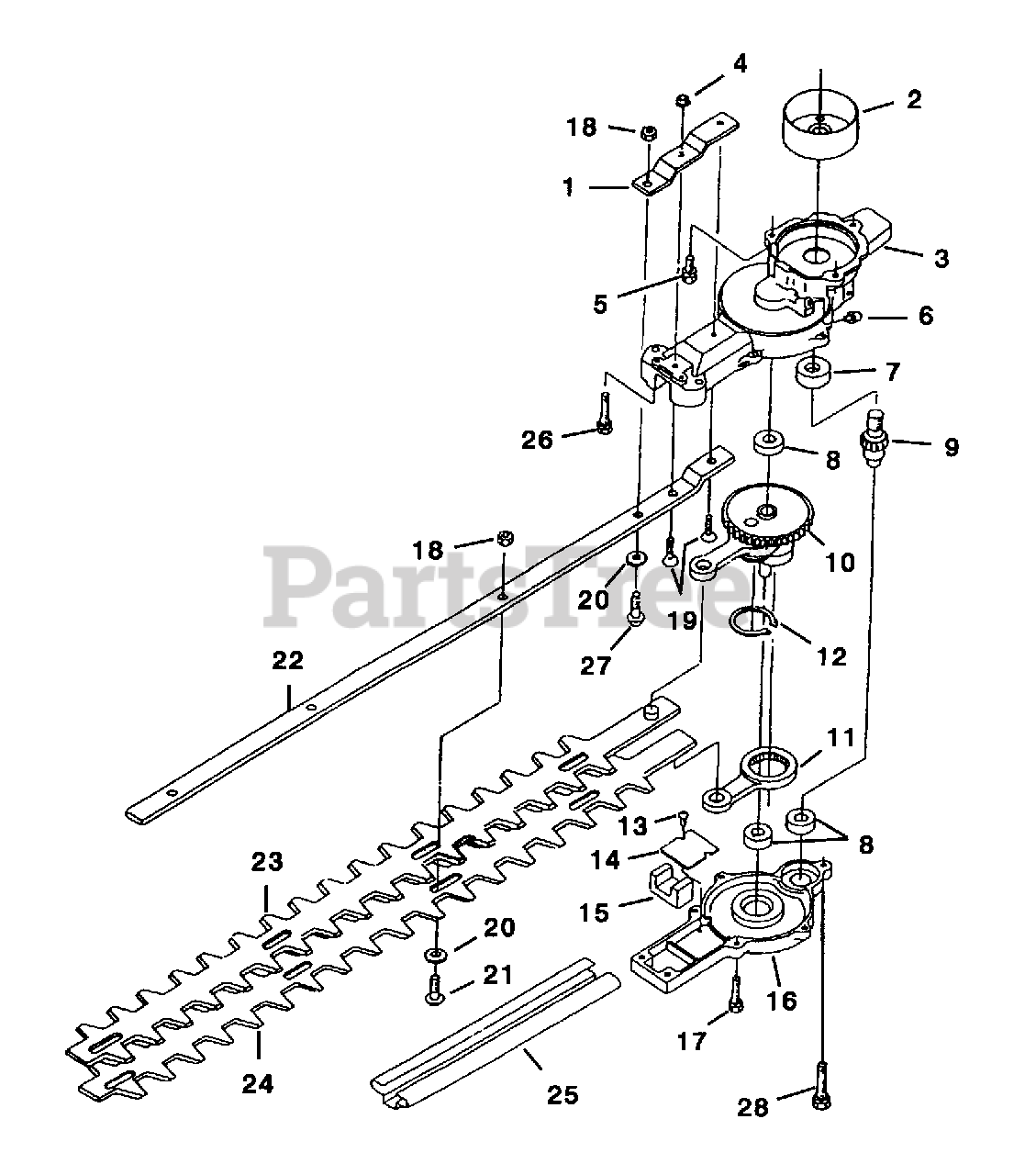

Gearcase - Blades Parts Diagram

  • Title

1

Homelite PS01023

REINFORCING PLATE

$

$

Not available

2

Homelite PS01016

DRUM-Clutch

$

$

Not available

3

Homelite PS01017

CASE-Upper

$

$

Not available

4

Homelite PS00895

FLANGE NUT (M5)

Note: Torque Specs: 33 - 37 In/Lbs, 3.7 - 4.2 Nm

$

$

Not available

5

Homelite PS00896

BOLT (M6 x 15 W SW)

Note: Torque Specs: 40 - 48 In/Lbs, 4.5 - 5.4 Nm

$

$

Not available

6

Homelite PS00897

NIPPLE-Grease (M6)

Note: Torque Specs: 26 - 34 In/Lbs, 2.9 - 3.8 Nm

$

$

Not available

7

Homelite PS01022

BEARING

$

$

Not available

8

Homelite PS00899

BEARING

$

$

Not available

9

Homelite PS00901

GEAR-Pinion
(Superseded to PS01024)

$

$

Not available

10

Homelite PS00902

GEAR-Crank
(Superseded to PS01026)

$

$

Not available

11

Homelite PS00903

ROD

$

$

Not available

12

Homelite PS00904

SNAP RING

$

$

Not available

13

Homelite PS00907

SCREW (M3 x 5)

Note: Torque Specs: 11 - 15 In/Lbs, 1.2 - 1.7 Nm

$2.49

$

Usually ships in 3-7 days

0

14

Homelite PS00908

PLATE-Rod Slide

$

$

Not available

15

Homelite PS00909

FELT

$

$

Not available

16

Homelite PS00910

CASE-Lower

$

$

Not available

17

Homelite PS00911

BOLT (M5 x 16 W SW)

Note: Torque Specs: 36 - 44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

18

Homelite PS00913

U-NUT (M6)

Note: Torque Specs: 62 - 78 In/Lbs, 7.0 - 8.8 Nm

$

$

Not available

19

Homelite PS00916

SCREW (M5 x 20)

Note: Torque Specs: 36 - 44 In/Lbs, 4.1 - 5.0 Nm

$

$

Not available

20

Homelite PS00915

WASHER-Blade Side

$

$

Not available

21

Homelite PS00898

SCREW (L-19)

$

$

Not available

22

Homelite PS00917

GUIDE PLATE

$

$

Not available

23

Homelite PS00918

BLADE-Upper

$

$

Not available

24

Homelite PS00919

BLADE-Lower

$

$

Not available

25

Homelite PS00920

COVER-Blade

$

$

Not available

26

Homelite PS00891

SCREW (M6 x 35 W SW & PW)

Note: Torque Specs: 39 - 47 In/Lbs, 4.4 - 5.3 Nm

$

$

Not available

27

Homelite PS01046

SCREW (L-22)

$

$

Not available

28

Homelite PS00888

SCREW (M6 X 40 W SW & PW)

Note: Torque Specs: 39 - 47 In/Lbs, 4.4 - 5.3 Nm

$

$

Not available
