GH 24 (UT-26154) - Green Machine Hedge Trimmer Air Filter - Carburetor - Fuel Tank Parts Diagram

Hedge Trimmer

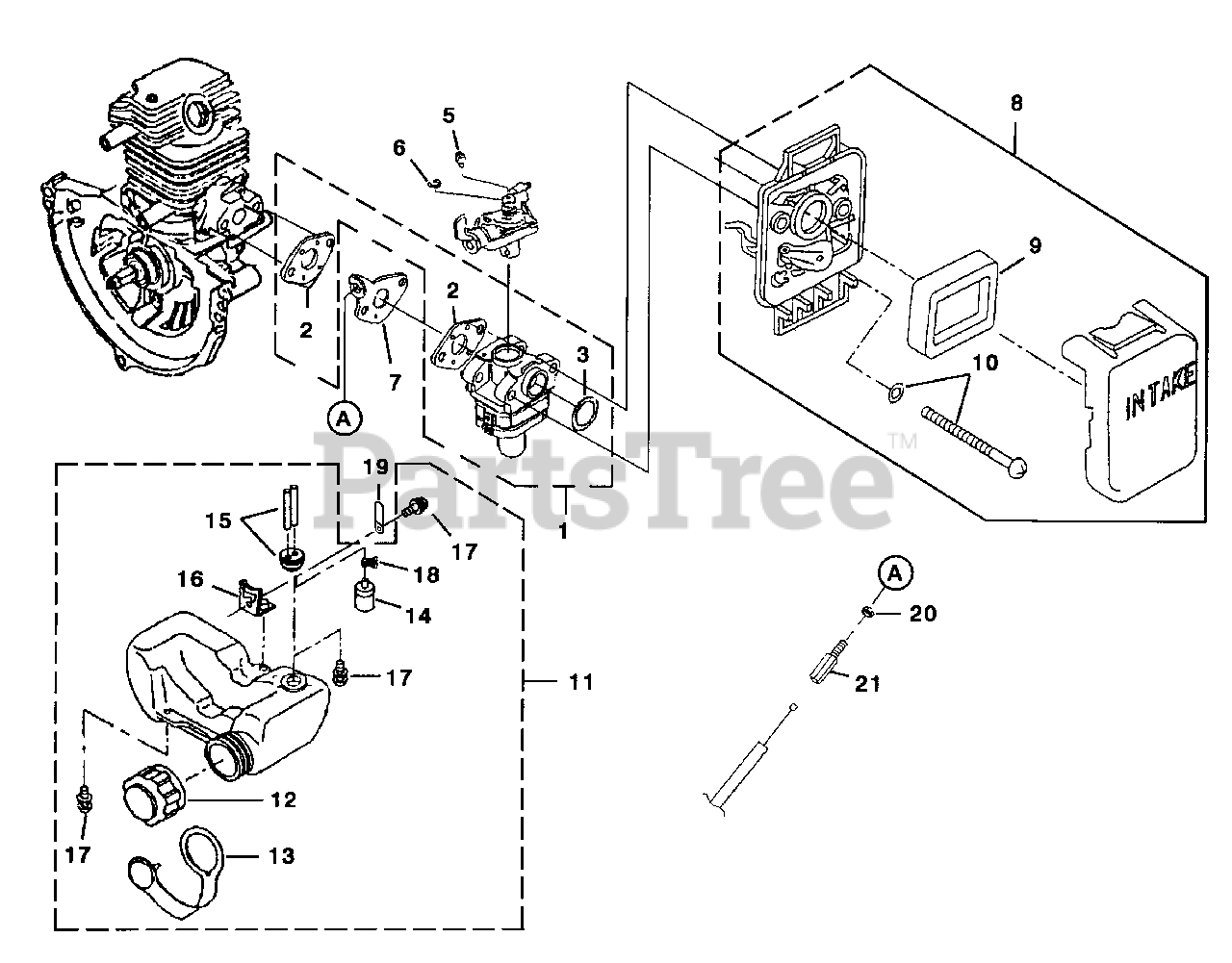

Air Filter - Carburetor - Fuel Tank Parts Diagram

  • Title

1

Homelite UP05429

CARBURETOR ASSEMBLY

$

$

Not available

2

Homelite PS00851

GASKET-Carburetor

$

$

Not available

3

Homelite PS00866

O-RING

$

$

Not available

5

Homelite PS00868

SWIVEL

$

$

Not available

6

Homelite PS00870

E-RING

$

$

Not available

7

Homelite PS03022

BRACKET-Cable

$

$

Not available

8

Homelite UP05431

AIR FILTER ASSEMBLY

$

$

Not available

9

Homelite UP02949

AIR FILTER

$32.99

$

Usually ships in 3-7 days

0

10

Homelite PS00874

SCREW ASSEMBLY (M5 x 65)

Note: Torque Specs: 18-26 In/Lbs, 2.0 - 2.9 Nm

$

$

Not available

11

Homelite UP05433

FUEL TANK ASSEMBLY

$

$

Not available

12

Homelite UP05432

CAP-Fuel
(Superseded to UP02946)

$

$

Not available

13

Homelite PS00522

RETAINER-Fuel Cap
(Superseded to UP02946)

$

$

Not available

14

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

15

Homelite PS00957

FUEL LINE ASSEMBLY
(Superseded to PS00834)

$

$

Not available

16

Homelite PS00958

BRACKET-Fuel Tank

$

$

Not available

17

Homelite PS00959

SCREW ASSEMBLY (MS x 16)

Note: Torque Specs: 18-26 In/Lbs, 2.0 - 2.9 Nm

$

$

Not available

18

Homelite PS00956

CLAMP-Hose

$

$

Currently unavailable

19

Homelite PS01430

CLAMP

$

$

Not available

20

Homelite PS00780

NUT-Cable Adj.

$

$

Not available

21

Homelite PS00543

SCREW-Cable Adj.

$

$

Not available
