GH 24 (UT-26152) - Green Machine Hedge Trimmer Handles Parts Diagram

Hedge Trimmer

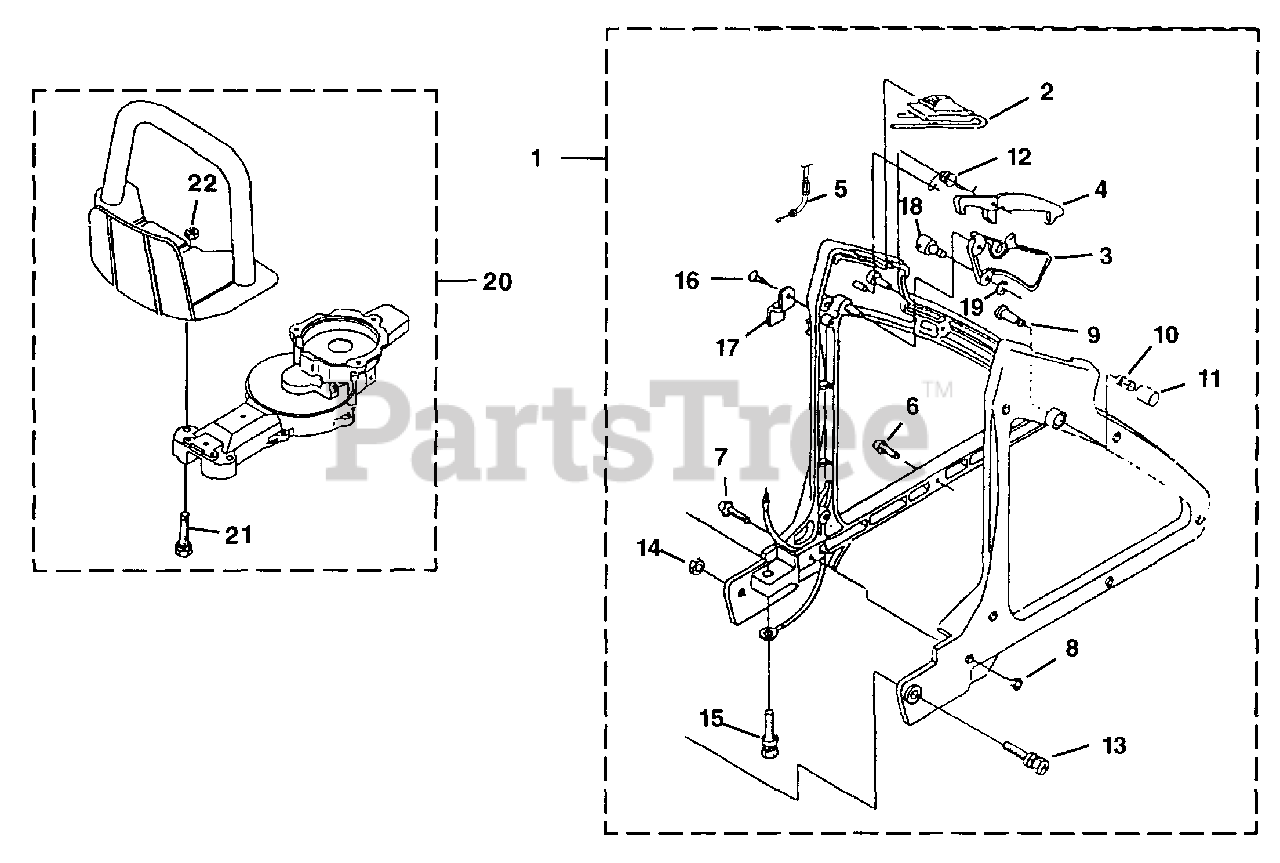

Handles Parts Diagram

  • Title

1

Homelite UP00551

REAR HANDLE COMPLETE

$

$

Not available

2

Homelite PS00875

SWITCH ASSEMBLY

$

$

Not available

3

Homelite PS00876

TRIGGER-Throttle

$

$

Not available

4

Homelite PS00877

LATCH-Throttle

$

$

Not available

5

Homelite PS00878

CASLE - Throttle

$

$

Not available

6

Homelite PS00879

SCREW (M4 x 16 W SW)

Note: (Torque Specs: 7-11 In/Lbs., .8-1.2 Nm)

$

$

Not available

7

Homelite PS00880

SCREW (M4 x 30 W SW)

Note: (Torque Specs: 7-11 In/Lbs., .8-1.2 Nm)

$

$

Not available

8

Homelite PS00881

NUT (M4)

$

$

Not available

9

Homelite PS00882

LOCK-Throttle Start

$

$

Not available

10

Homelite PS00883

SPRING-Throttle Lock

$

$

Not available

11

Homelite PS00884

BUTTON-Throttle Lock

$

$

Not available

12

Homelite PS00885

SPRING

$

$

Not available

13

Homelite PS00886

SCREW (M6 x 50 W SW & PW)

Note: (Torque Specs: 39-47 In/Lbs., 4.4-5.3 Nm)

$

$

Not available

14

Homelite PS00887

NUT (M6)

$

$

Not available

15

Homelite PS00888

SCREW (M6 x 40 W SW & PW)

Note: (Torque Specs: 39-47 In/Lbs., 4.4-5.3 Nm)

$

$

Not available

16

Homelite PS00889

SCREW (M4 x 10)

Note: (Torque Specs: 7-11 In/Lbs., .8-1.2 Nm)

$

$

Not available

17

Homelite PS00890

HOLDER-Cable

$

$

Not available

18

Homelite PS00894

CABLE-Swivel

$

$

Not available

19

Homelite PS00893

SNAP RING

$

$

Currently unavailable

20

Homelite UP00552

FRONT HANDLE ASSEMBLY

$

$

Not available

21

Homelite PS00891

SCREW (M6 x 35 W SW & PW)

Note: (Torque Specs: 39-47 In/Lbs., 4.4-5.3 Nm)

$

$

Not available

22

Homelite PS00887

NUT (M6)

$

$

Not available
