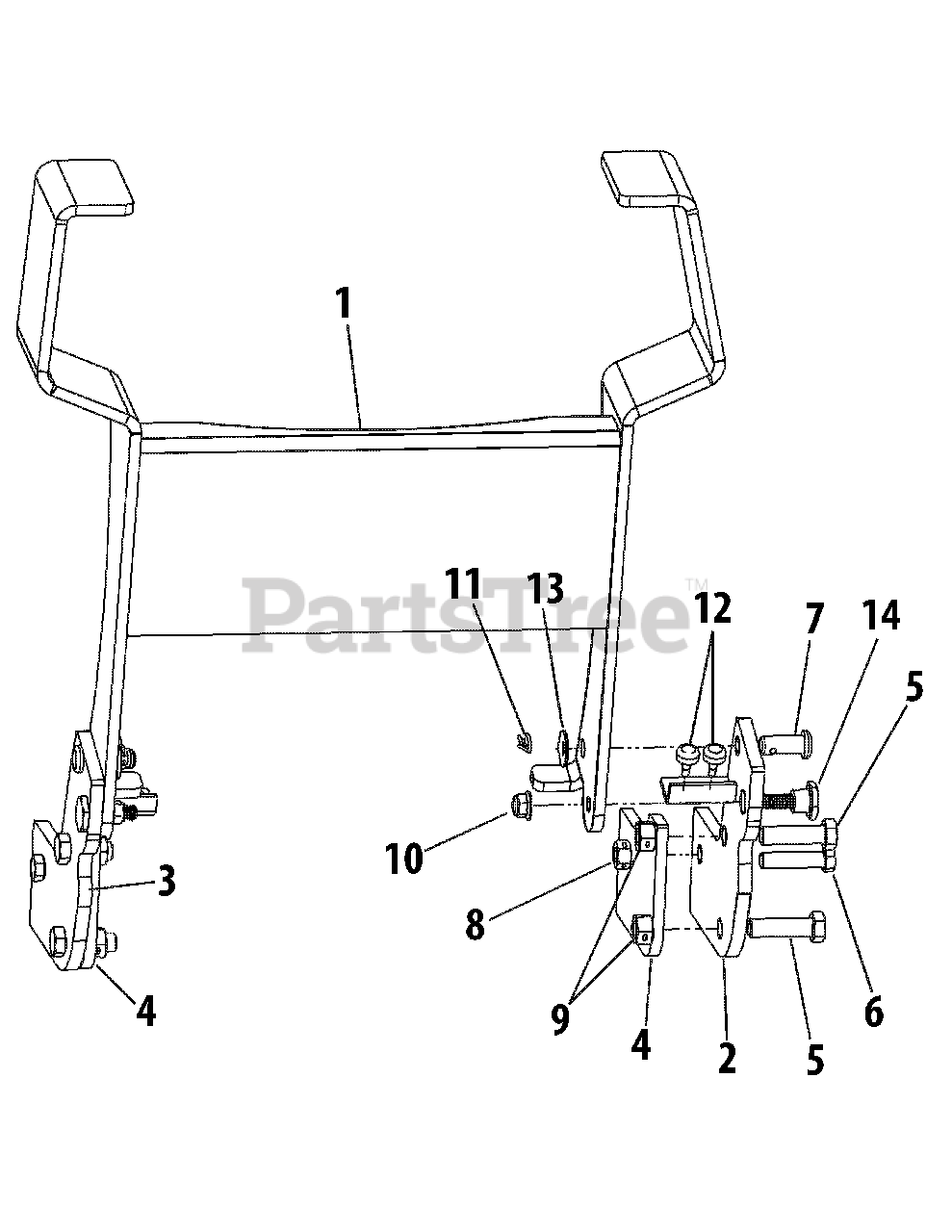

GG 10 (59A40010727) - Cub Cadet Yanmar Tractor Grill Guard General Assembly Parts Diagram

Tractor Grill Guard

General Assembly Parts Diagram

  • Title

1

Cub Cadet N/A

Grill Guard Frame

$

$

Currently unavailable

2

Cub Cadet 603-04542-0691

Bracket, Grille Guard Mounting LH

$

$

Not available

3

Cub Cadet 603-04545-0691

Bracket, Grille Guard Mounting RH

$

$

Not available

4

Cub Cadet 703-06496-0691

Spacer, Grille Guard

$

$

Not available

5

Cub Cadet 710-3067

Hex Screw, 1/2-13 x 1.75 Gr5

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-3238

Hex Screw Lock, 7/16-14 x 1.75 Gr5

$

$

Not available

7

Cub Cadet 911-0310

Pin, Clevis, .5 x 1.18
(Superseded to 711-0310)

$

$

Not available

8

Cub Cadet 712-0290

Nut, Hex Centerlock, 7/16-14 GrA

$4.99

$

In Stock, Qty 11

0

9

Cub Cadet 912-0384

Nut, Hex Centerlock,, 1/2-13 GrA

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 712-04065

Nut, Hex Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 914-04023

Pin, Internal Cotter
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 735-0271A

Bumper, Rubber

$8.99

$

In Stock, only 4 left!

0

13

Cub Cadet 936-0272

Washer, Flat, .51 x 1.0 x .06
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-1127

Screw, Shoulder, .625 x .442:3/8-16
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 11

0

Cub Cadet 777D11455

Label - Cub Yanmar

$

$

Not available
