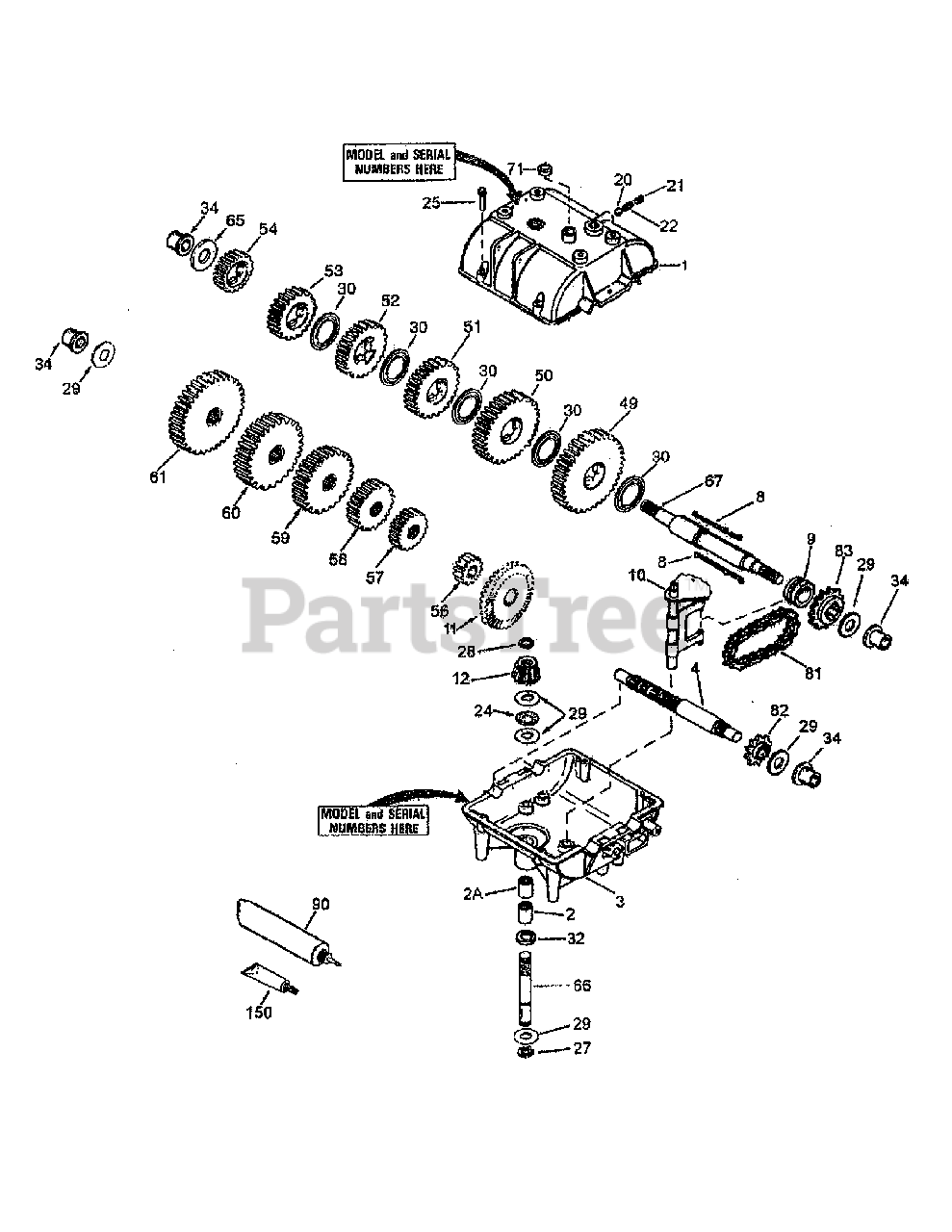

GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower Transmission Assembly Parts Diagram

Walk-Behind Mower

Transmission Assembly Parts Diagram

  • Title

1

Cub Cadet TC-772083A

Transmission Cover

$69.99

$

In Stock, only 4 left!

0

2

Cub Cadet TC-780086A

Needle Bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

2A

Cub Cadet TC-780142

Needle Bearing
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

3

Cub Cadet TC-770061A

Transmission Case
(Superseded to TC-799045)

$113.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-776134

Countershaft

$98.99

$

In Stock, only 1 left!

0

8

Cub Cadet TC-792089B

Shift Key

$35.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-784266

Shift Collar

$11.99

$

Usually ships in 3-12 days

0

10

Cub Cadet TC-784376

FORK ASSY-SHIFT W/ ROD

$62.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-778154

Bevel Gear (42 teeth)

$125.99

$

In Stock, only 1 left!

0

12

Cub Cadet TC-778176

Input Bevel Pinion (14 teeth-steel)

$38.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-792077A

Steel Ball, 5/16" dia.

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet TC-792078

Set Screw, 3/8-16 x 3/8"

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

24

Cub Cadet TC-780071

Thrust Bearing

$10.99

$

In Stock, Qty 8

0

25

Cub Cadet TC-792073A

Screw, 1.4-20 x 1-1/4"

$1.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet TC-780072

Washer

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet TC-780108

Washer

$4.49

$

In Stock, Qty 9

0

32

Cub Cadet TC-792001

O Ring

$4.49

$

In Stock, Qty 11

0

34

Cub Cadet TC-780105A

Flange Bushing

$8.49

$

In Stock, Qty 10

0

49

Cub Cadet TC-778125

Spur Gear (35 teeth)

$41.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-778239A

Spur Gear (32 teeth-steel)

$93.99

$

In Stock, only 2 left!

0

51

Cub Cadet TC-778124A

Spur Gear (30 teeth)

$34.99

$

In Stock, only 3 left!

0

52

Cub Cadet TC-778250

Spur Gear (27 teeth)

$48.99

$

In Stock, Qty 6

0

53

Cub Cadet TC-778122A

Spur Gear (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-778136

Spur Gear (15 teeth)

$24.99

$

In Stock, only 1 left!

0

57

Cub Cadet TC-778240

Spur Gear (18 teeth-steel)

$106.99

$

Usually ships in 3-12 days

0

58

Cub Cadet TC-778126A

Spur Gear (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-778249

Spur Gear (23 teeth)

$68.99

$

Usually ships in 3-12 days

0

60

Cub Cadet TC-778128A

Spur Gear (28 teeth)

$40.99

$

Usually ships in 3-12 days

0

65

Cub Cadet TC-780139

Thrust Washer

$4.49

$

In Stock, Qty 9

0

66

Cub Cadet TC-776135

Input Shaft (3-11/16" long)

$39.99

$

In Stock, Qty 6

0

67

Cub Cadet TC-776402

Shifter & Brake Shaft

$127.99

$

In Stock, Qty 5

0

71

Cub Cadet TC-788069

Square Cut Ring

$4.49

$

Usually ships in 3-12 days

0

81

Cub Cadet TC-786081

Roller Chain (No. 41 chain, 24 links)

$22.99

$

Usually ships in 3-12 days

0

82

Cub Cadet TC-786082

Sprocket (9 teeth)

$15.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-786083

Sprocket (18 teeth)

$20.99

$

In Stock, only 1 left!

0

90

Cub Cadet TC-788067C

Grease (32 oz. bottle Bentonite)

$

$

Not available

150

Cub Cadet TC-510334

Gasket Eliminator (Loctite #515)

$12.99

$

Usually ships in 3-12 days
