GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Piston & Crankshaft Parts Diagram

Walk-Behind Mower

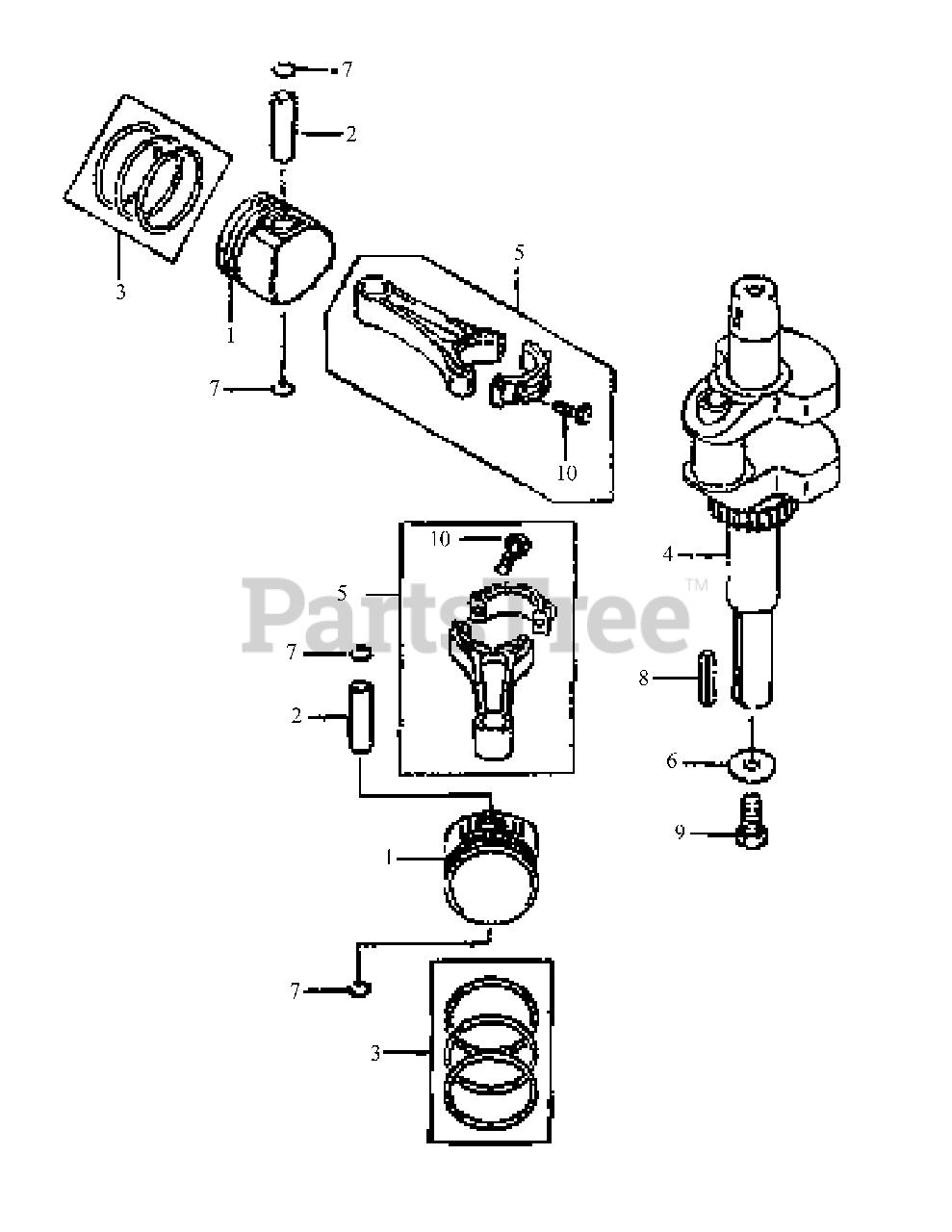

FH500V-AS02 Piston & Crankshaft Parts Diagram

  • Title
1

Cub Cadet KM-13001-7008

Piston, Engine

$74.99

$

In Stock, only 2 left!

0

2

$4.99

$

In Stock, Qty 12

0

3

Cub Cadet KM-13008-6055

Ring, Set Piston

$60.99

$

In Stock, Qty 14

0

$

$

Not available

5

Cub Cadet KM-13251-7004

Rod, Connecting

$58.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-92022-1982

Washer 12.5x32x3.2

$5.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-92033-7002

Ring, Snap
(Superseded to KM-92033-0780)

$0.99

$

In Stock, Qty 11

0

$4.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92151-7010

Bolt 7/16-20 unf

$1.49

$

In Stock, only 1 left!

0

10

Cub Cadet KM-130G0630

Bolt, Flange

$1.99

$

In Stock, Qty 15

0
