GF 1748 (55AE234M150) - Cub Cadet Walk-Behind Mower FH500V-AS02 Lubrication System Parts Diagram

Walk-Behind Mower

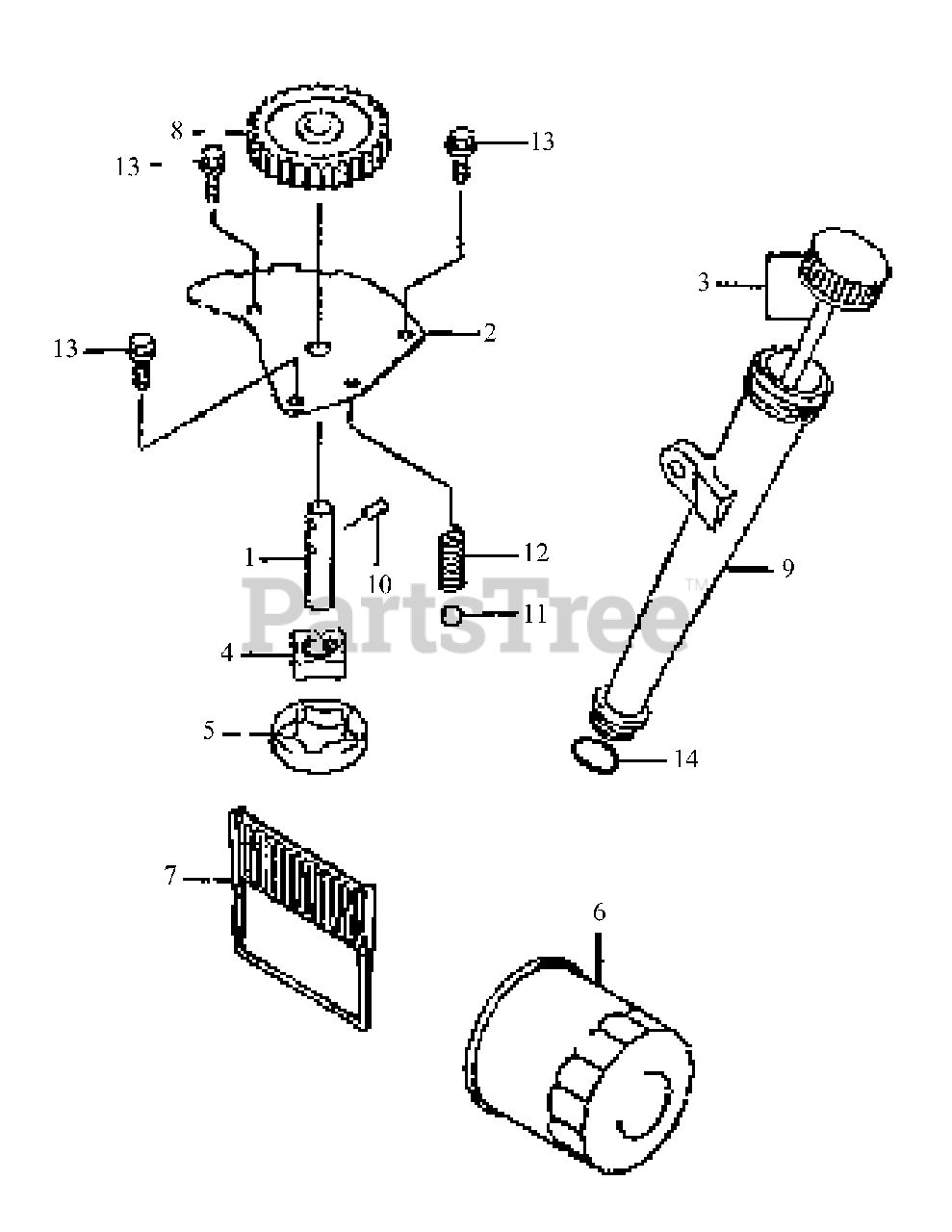

FH500V-AS02 Lubrication System Parts Diagram

  • Title

1

Cub Cadet KM-13107-2099

Shaft, Oil Pump
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-13270-7004

Plate

$

$

Not available

3

Cub Cadet KM-14075-7009

Cap Assembly
(Superseded to KM-14075-0708)

$10.99

$

In Stock, Qty 11

0

4

Cub Cadet KM-16154-2053

Rotor, Pump In

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-16154-2054

Rotor, Pump Out

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet KM-49065-7010

Filter, Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-49065-7001

Filter, Oil Screen

$3.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-59051-7004

Gear, Spur
(Superseded to KM-59051-6001)

$

$

Not available

9

Cub Cadet KM-59231-7005

Filler

$5.99

$

In Stock, Qty 5

0

10

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

12

Cub Cadet KM-92145-7002

Spring

$

$

Not available

13

Cub Cadet KM-130BA0612

Bolt, Flange

$1.99

$

In Stock, Qty 18

0

14

Cub Cadet KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0
