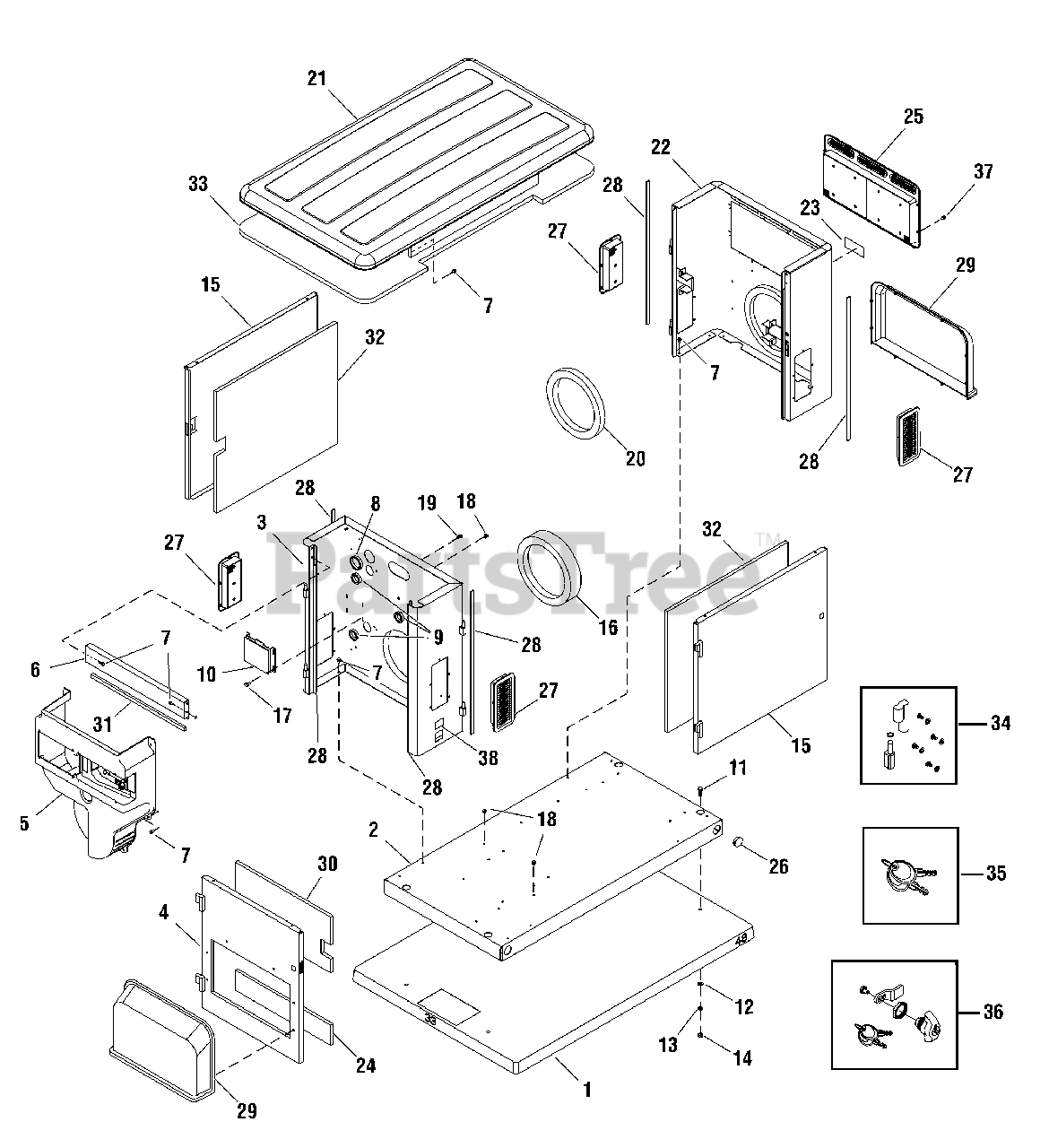

GEN30L (040267-0) - Rheem 20kW Home Standby Generator Enclosure (202991) Parts Diagram

20kW Home Standby Generator

Enclosure (202991) Parts Diagram

  • Title

1

Briggs & Stratton 197275GS

PAD, Mounting

$257.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton X203030GS

BASE

$403.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203084GS

BULKHEAD

$390.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 202107GS

DOOR

$

$

Not available

5

Briggs & Stratton 198910GS

DUCT

$256.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 202112GS

SUPPORT, Rail

$72.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4300GS

SCREW
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

8

Briggs & Stratton 203015GS

BUSHING, Snap, 2"

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197493GS

BUSHING, Snap, 1-1/2"

$3.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198338GS

REGULATOR, VLTG
(Superseded to 707157)

$423.99

$

Usually ships in 2-12 days

0

11

-----

* CAPSCREW, Hex Head, 3/8 - 16 x 1

$

$

Not available

12

-----

* WASHER, Flat, 3/8 - M10

$

$

Not available

13

-----

* WASHER, Lock 3/8

$

$

Not available

14

-----

* NUT, 3/8 - 16

$

$

Not available

15

Briggs & Stratton 202108GS

DOOR

$256.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 202956GS

SEAL
(Superseded to 770041)

$182.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192778GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 195733GS

MOUNT, Tie Wrap

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 192940GS

RETAINER, Hose

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 202957GS

SEAL
(Superseded to 770424)

$74.99

$

In Stock, Qty 7

0

21

Briggs & Stratton 202109GS

ROOF

$605.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 203085GS

BULKHEAD

$806.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 200409GS

DECAL, Warning Hot

$11.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 203303GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 198926GS

VENT

$132.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 198460GS

PLUG, Dome

$3.49

$

In Stock, Qty 13

0

27

Briggs & Stratton 198927GS

VENT

$20.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 198888GS

SEAL

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 194694GS

COVER, Air Intake Engine

$

$

Not available

30

Briggs & Stratton 203302GS

INSULATION

$35.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 197312GS

SEAL

$4.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 196397GS

INSULATION

$48.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 195597GS

INSULATION

$117.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 198890GS

KIT, Door, Hinge

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 207652GS

SET, Latch Key, Plain

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 198889GS

KIT, Door Latch

$48.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292GS

SCREW, Self Drill, 10 - 16 x 3/4
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 203845GS

DECAL, LPG

$13.99

$

Usually ships in 2-12 days

0
