GEN16AD-E (040356-02) - Rheem 16kW Home Standby Generator Alternator (80011208) Parts Diagram

16kW Home Standby Generator

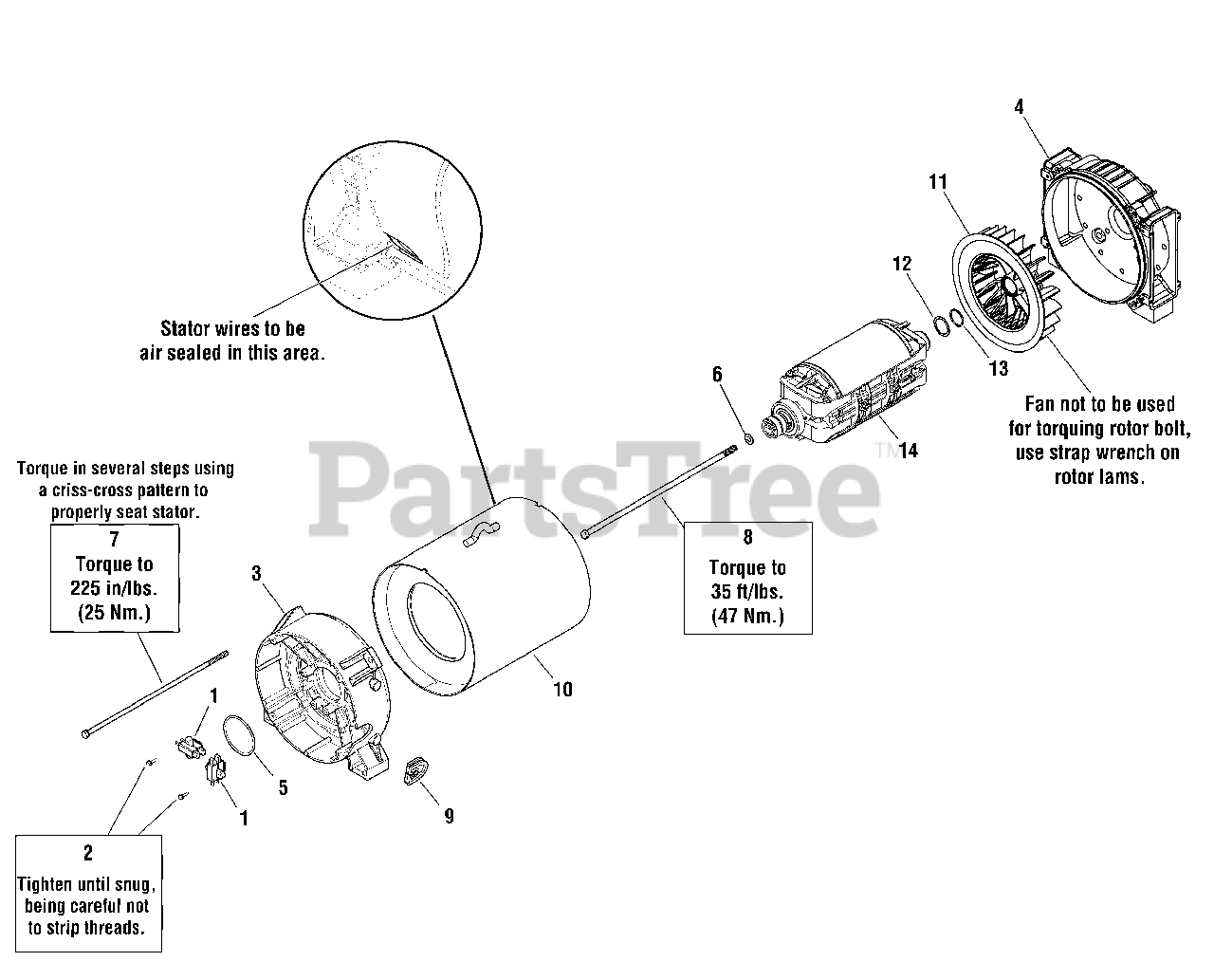

Alternator (80011208) Parts Diagram

  • Title

1

Briggs & Stratton 66386GS

BRUSH ASSEMBLY

Note: (Qty 1 required after Serial No. 1022101612)

$23.99

$

In Stock, Qty 20+

0

2

Briggs & Stratton 66849GS

TAPTITE

Note: (Qty 2 required after Serial No. 1022101612)

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195234GS

RBC

$193.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 195235GS

ADAPTER, Engine

$148.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 199888GS

O-RING

$8.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 203200GS

WASHER

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 315199GS

SCREW

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 315204GS

BOLT

$24.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 315440GS

GROMMET

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 316176GS

STATOR

$2822.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 319105GS

FAN

$55.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 319110GS

WASHER

$7.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 319111GS

O-RING

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 706411

ROTOR

$1435.99

$

Usually ships in 2-12 days

0
