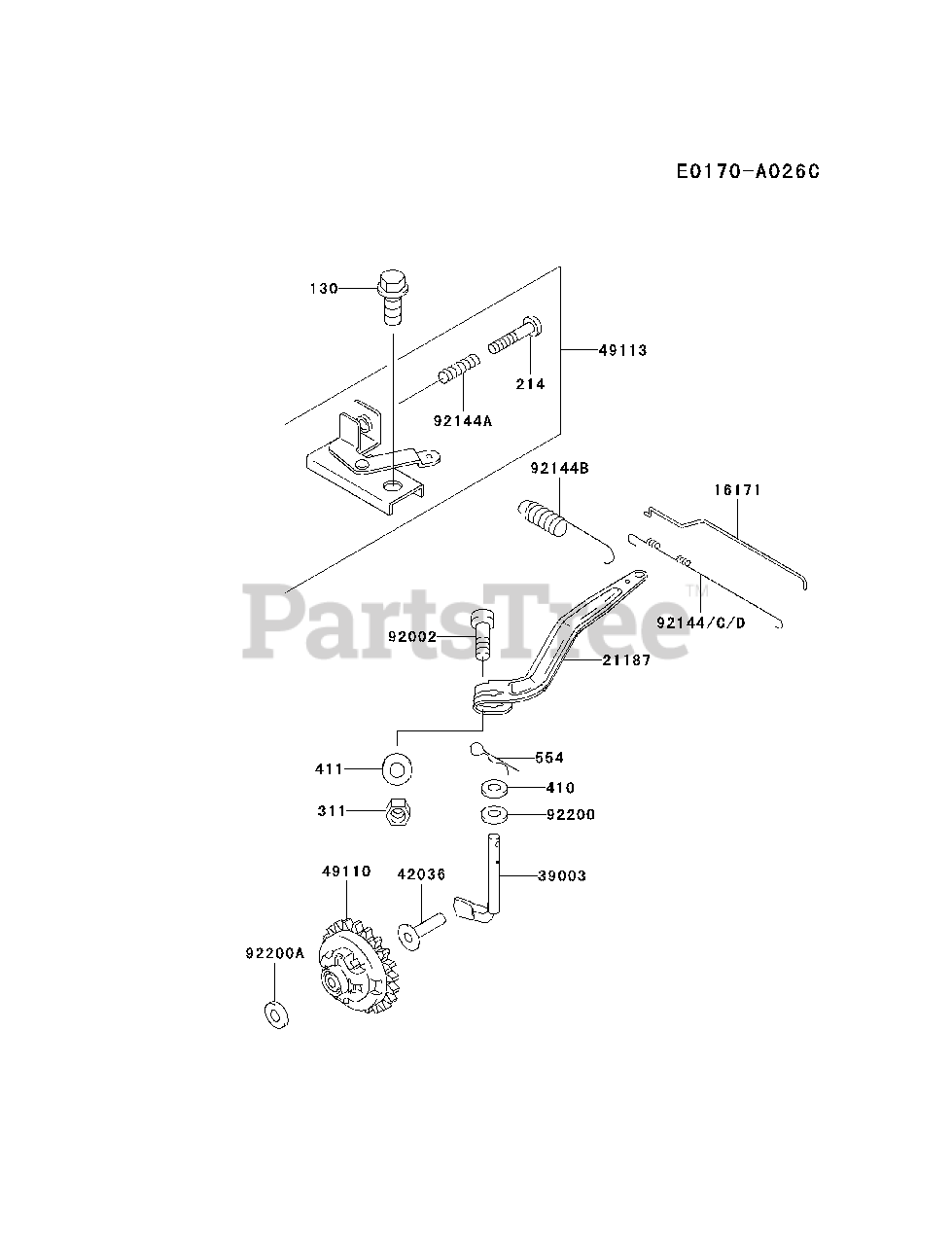

GE 5000 AS (GEF00A-BS00) - Kawasaki Generator CONTROL-EQUIPMENT Parts Diagram

Generator

CONTROL-EQUIPMENT Parts Diagram

  • Title

16171

Kawasaki 16171-2061

LINK,THROTTLE

$3.99

$

Usually ships in 2-5 days

0

21187

Kawasaki 21187-2061

ARM-ASSY

$6.99

$

Usually ships in 2-5 days

0

39003

Kawasaki 39003-2076

ARM-PIVOT
(Superseded to 39003-2067)

$8.49

$

Usually ships in 2-5 days

0

42036

Kawasaki 42036-2060

SLEEVE
(Superseded to 42036-2059)

$4.99

$

In Stock, Qty 10

0

49110

Kawasaki 49110-2069

GOVERNOR-ASSY
(Superseded to 49110-2085)

$12.99

$

Usually ships in 2-5 days

0

49113

Kawasaki 49113-2082

PANEL-COMP-CONTROL

$

$

Not available

92002

Kawasaki 92002-2269

BOLT

$1.99

$

In Stock, Qty 6

0

92144

Kawasaki 92144-2256

SPRING
(Superseded to 92144-2340)

$5.49

$

In Stock, Qty 10

0

92144A

Kawasaki 92144-2266

SPRING

$5.49

$

Usually ships in 2-5 days

0

92144B

Kawasaki 92144-2280

SPRING

$8.49

$

Usually ships in 2-5 days

0

92144D

Kawasaki 92144-2340

SPRING

$5.49

$

In Stock, Qty 10

0

92200

Kawasaki 92200-2029

WASHER,6.5X11.5X2.0

$0.99

$

In Stock, only 2 left!

0

92200A

Kawasaki 92200-2036

WASHER

$1.49

$

In Stock, Qty 12

0

130

Kawasaki 130B0812

BOLT-FLANGED
(Superseded to 130AA0812)

$0.99

$

Usually ships in 2-5 days

0

214

Kawasaki 214B0525

SCREW-PAN+-
(Superseded to 214AA0525)

$4.49

$

In Stock, Qty 9

0

311

Kawasaki 311B0600

NUT-HEX
(Superseded to 311AA0600)

$0.99

$

In Stock, Qty 20+

0

410

Kawasaki 410B0600

W-PLAIN-S
(Superseded to 410AA0600)

$1.49

$

In Stock, Qty 5

0

411

Kawasaki 411B0600

WASHER-PLAIN
(Superseded to 411AA0600)

$4.49

$

In Stock, Qty 12

0

554

Kawasaki 554A0600

PIN-SNAP
(Superseded to 554DA0600)

$1.49

$

In Stock, only 3 left!

0
