GE 2900 A (GEW90A-AS01) - Kawasaki Generator CARBURETOR Parts Diagram

Generator

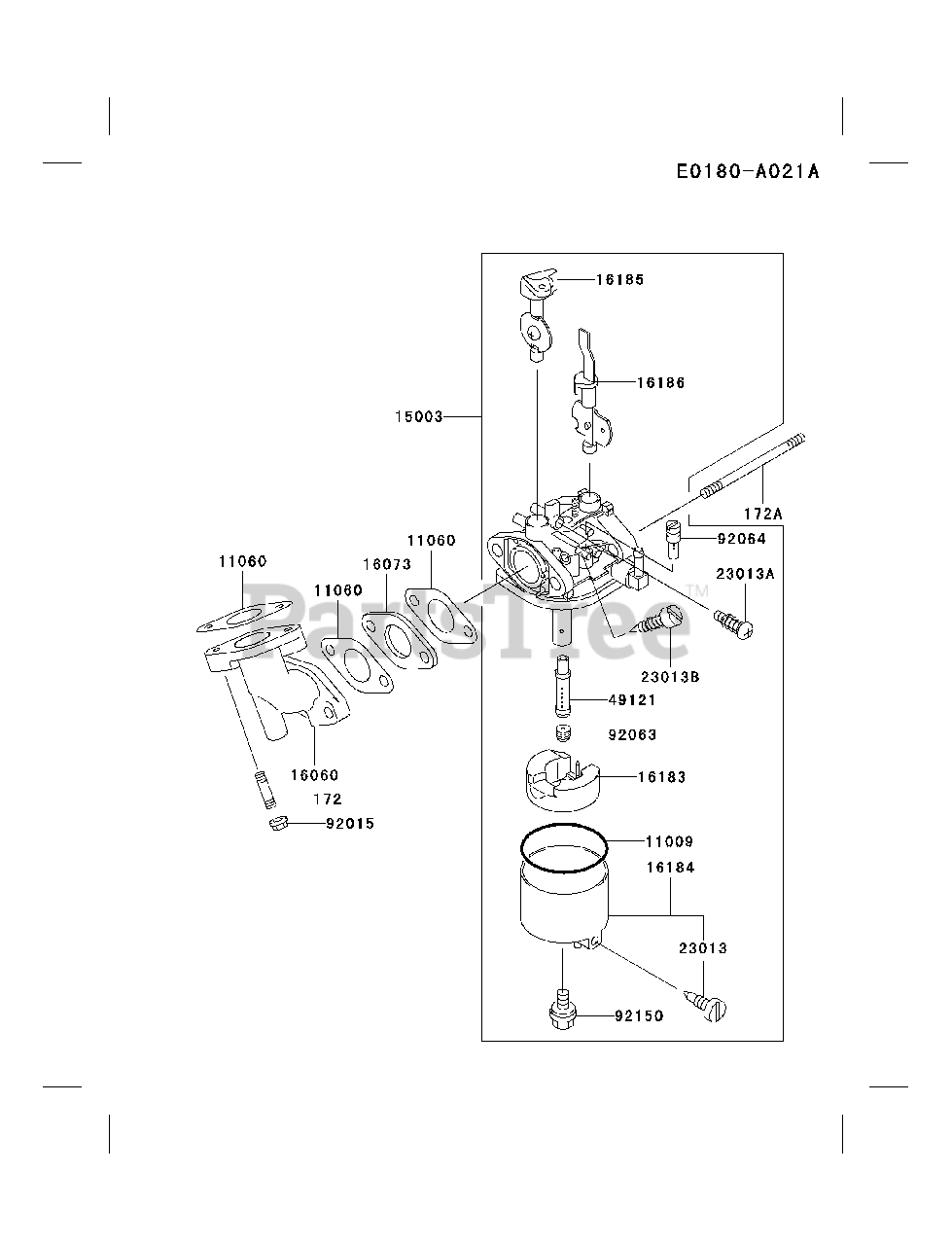

CARBURETOR Parts Diagram

  • Title

11009

Kawasaki 11009-2919

GASKET

$10.99

$

In Stock, Qty 16

0

11060

Kawasaki 11060-2051

GASKET,CARBURETOR
(Superseded to 11009-2142)

$1.99

$

In Stock, Qty 20+

0

15003

Kawasaki 15003-2265

CARBURETOR-ASSY.

$

$

Not available

16060

Kawasaki 16060-2154

PIPE-INTAKE

$23.99

$

Usually ships in 2-5 days

0

16073

Kawasaki 16073-2147

INSULATOR
(Superseded to 16073-2180)

$2.49

$

In Stock, only 2 left!

0

16183

Kawasaki 16183-2001

FLOAT-ASSY
(Superseded to 16183-2005)

$49.99

$

Usually ships in 2-5 days

0

16184

Kawasaki 16184-2002

CHAMBER-ASSY-FLOAT

$50.99

$

Usually ships in 2-5 days

0

16185

Kawasaki 16185-2001

VALVE-ASSY-THROTTLE

$59.99

$

Usually ships in 2-5 days

0

16186

Kawasaki 16186-2019

VALVE-ASSY-CHOKE

$

$

Not available

23013

Kawasaki 23013-2053

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

23013A

Kawasaki 23013-2054

SCREW-ASSY

$8.49

$

Usually ships in 2-5 days

0

23013B

Kawasaki 23013-2055

SCREW-ASSY

$11.99

$

Usually ships in 2-5 days

0

49121

Kawasaki 49121-2145

NOZZLE-MAIN

$19.99

$

Usually ships in 2-5 days

0

92015

Kawasaki 92015-1193

NUT
(Superseded to 92015-1367)

$4.49

$

In Stock, Qty 20+

0

92063

Kawasaki 92063-2232

JET-MAIN,#72

$11.99

$

Usually ships in 2-5 days

0

92064

Kawasaki 92064-2082

JET-PILOT,#42

$20.99

$

Usually ships in 2-5 days

0

92150

Kawasaki 92150-2209

BOLT

$7.49

$

In Stock, only 1 left!

0

172

Kawasaki 172G0618

BOLT-STUD
(Superseded to 172BA0618)

$1.49

$

In Stock, only 1 left!

0

172A

Kawasaki 172G0673

BOLT-STUD
(Superseded to 172BA0673)

$1.99

$

Usually ships in 2-5 days

0
