GE 25 (UT-26102) - Green Machine Edger Throttle & Front Handle Parts Diagram

Edger

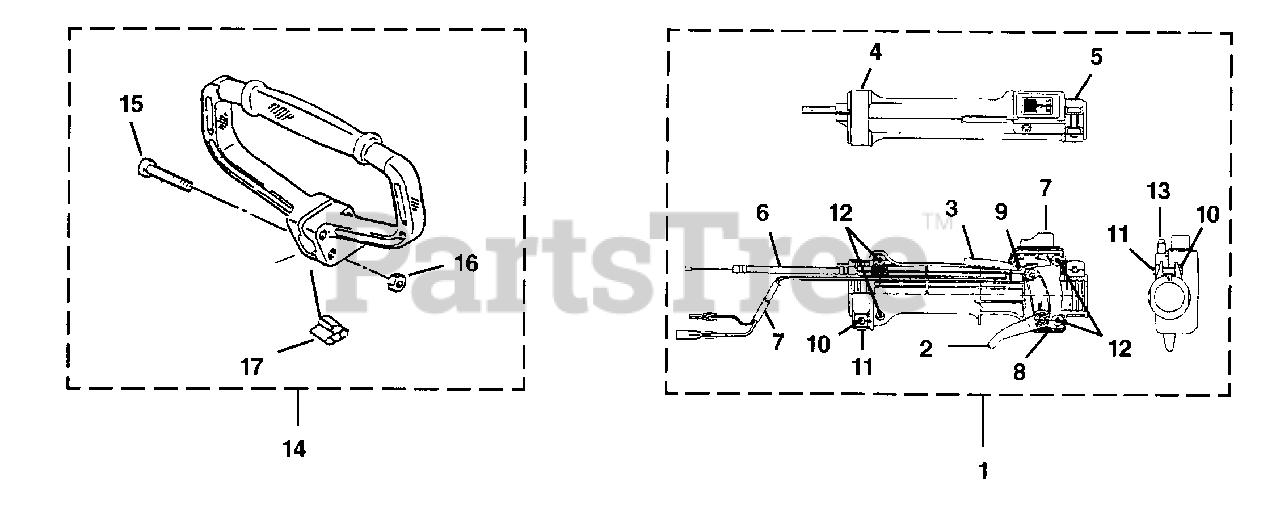

Throttle & Front Handle Parts Diagram

  • Title

1

Homelite UP00467

CONTROL LEVER ASSEMBLY

$

$

Not available

2

Homelite PS00461

THROTTLE-Trigger

$

$

Not available

3

Homelite PS00462

LATCH-Trigger

$

$

Not available

4

Homelite PS00463

CLAMP

$

$

Not available

5

Homelite PS00464

CLAMP

$

$

Not available

6

Homelite PS00561

CABLE-Throttle

$

$

Not available

7

Homelite PS00564

SWITCH ASSEMBLY

$

$

Not available

8

Homelite PS00466

SPRING

$

$

Not available

9

Homelite PS00467

SPRING

$

$

Not available

10

Homelite PS00468

SCREW

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

11

Homelite PS00469

NUT

$

$

Not available

12

Homelite PS00470

SCREW-Tapping

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

13

Homelite PS01032

LOCK-Throttle Start

$

$

Not available

14

Homelite UP00600

HANDLE ASSEMBLY

$

$

Not available

15

Homelite PS00799

BOLT, Cross Recessed

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

16

Homelite PS00861

NUT, Flange

$

$

Not available

17

Homelite PS01148

SPACER

$

$

Not available
