GE 25 (UT-26102) - Green Machine Edger Starter Parts Diagram

Edger

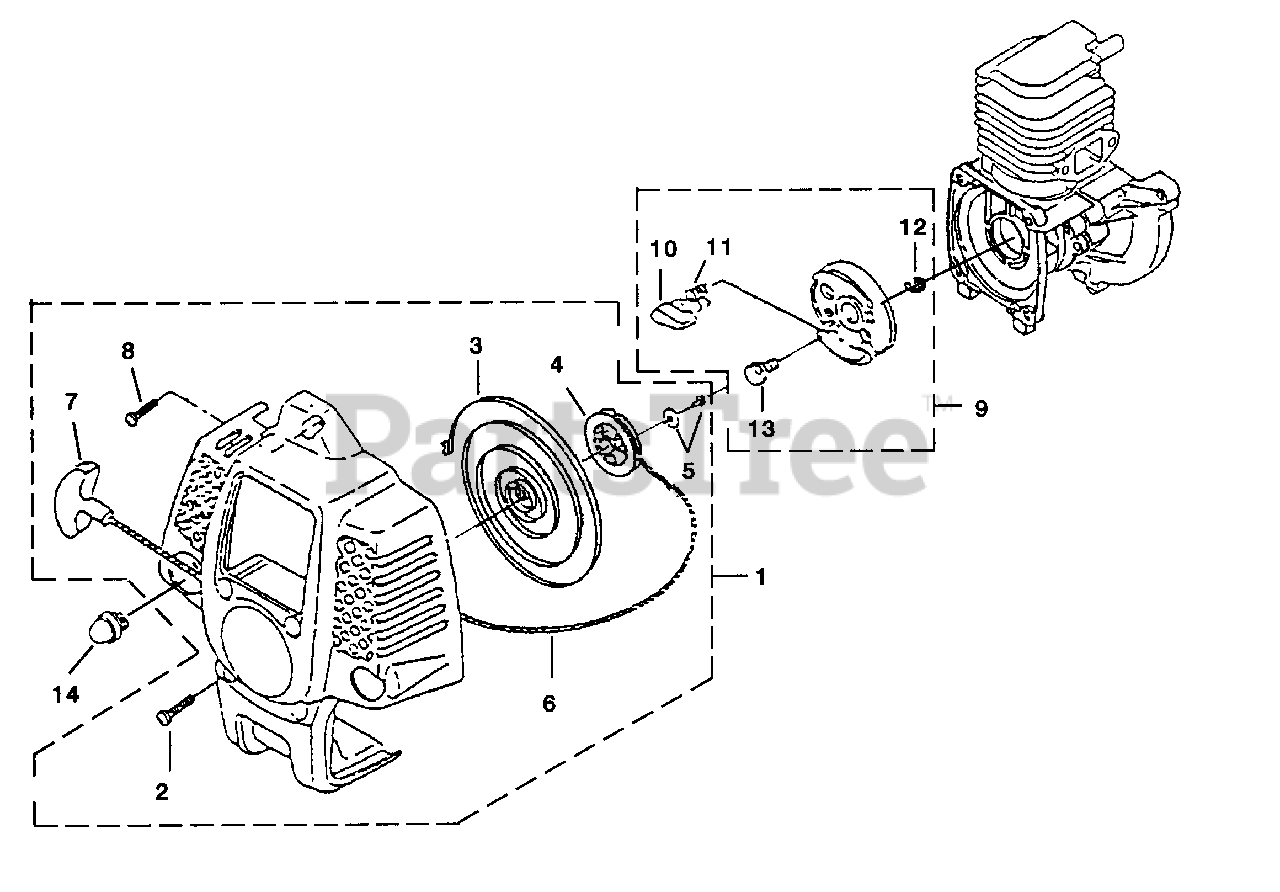

Starter Parts Diagram

  • Title

1

Homelite UP02900

STARTER COMPLETE

$

$

Not available

2

Homelite PS00845

SCREW-Socket Hd (M5 x 18 W SW)

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm

$

$

Not available

3

Homelite PS00565

SPRING

$

$

Not available

4

Homelite PS00566

PULLEY

$

$

Not available

5

Homelite PS00567

SCREW, Set

$

$

Not available

6

Homelite PS00475

ROPE-Starter

$

$

Not available

7

Homelite PS00568

GRIP

$

$

Not available

8

Homelite PS00715

SCREW-Tapping (M5 x 18)

Note: Torque Specs 15-25 In/Lbs, 1.7-2.8 Nm

$

$

Not available

9

Homelite UP00469

STARTER CUP ASSEMBLY

$

$

Not available

10

Homelite PS00712

RATCHET

$

$

Not available

11

Homelite PS00478

SPRING-Return

$

$

Not available

12

Homelite PS00479

E-CLIP

$8.49

$

Usually ships in 3-7 days

0

13

Homelite PS00569

BOLT ASSEMBLY

$2.49

$

Usually ships in 3-7 days

0

14

Homelite PS00650

PRIMER BULB
(Superseded to UP04033)

$

$

Not available
