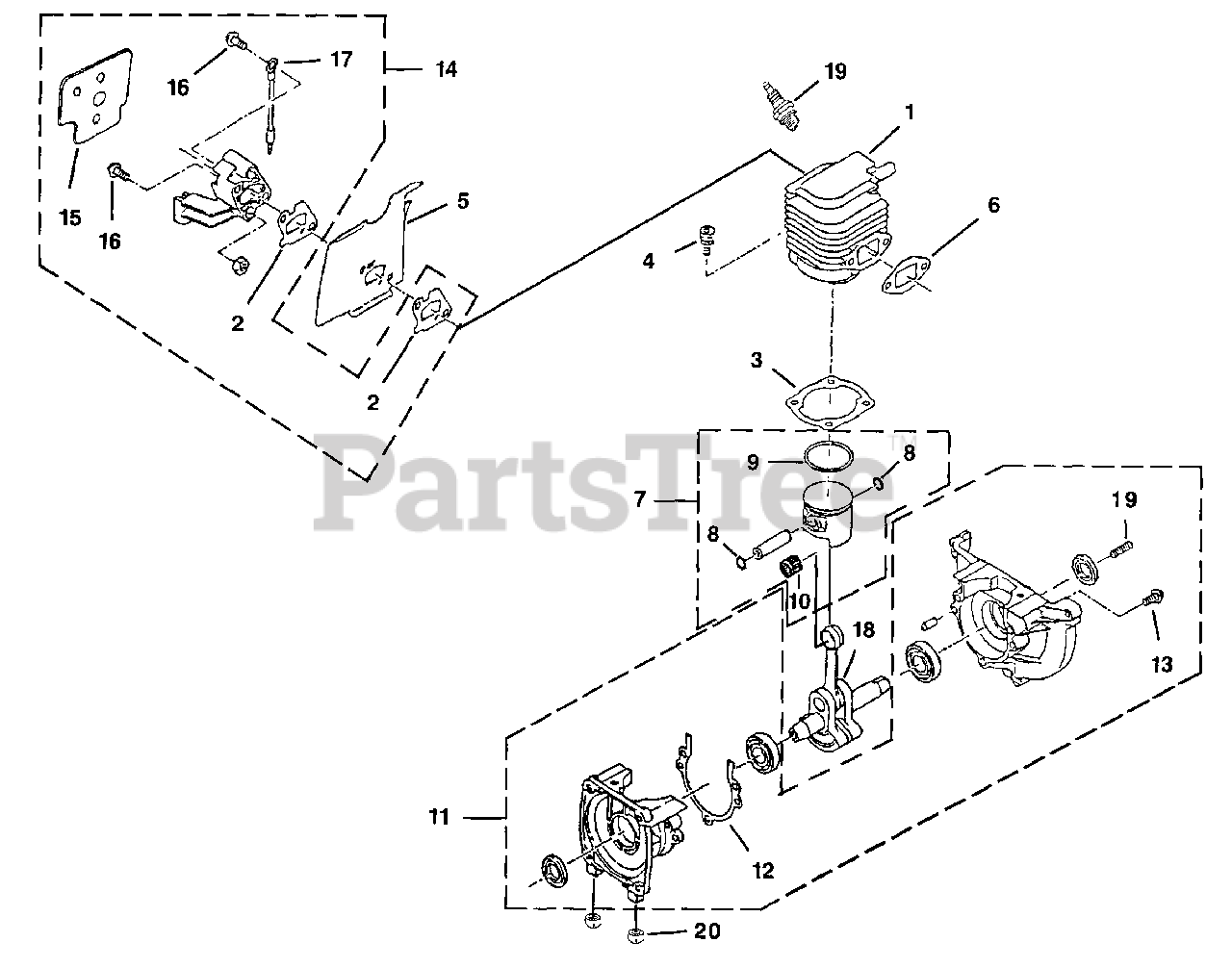

GE 25 (UT-26102) - Green Machine Edger Engine Parts Diagram

Edger

Engine Parts Diagram

  • Title

1

Homelite UP00568

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

4

Homelite PS00840

SCREW-Socket HD (M5 x 20 W SW)

Note: Torque Specs 54-70 In/Lbs, 6.1-7.9 Nm

$2.49

$

Usually ships in 3-7 days

0

5

Homelite PS00685

INSULATOR-Carburetor

$15.99

$

Usually ships in 3-7 days

0

6

Homelite PS00674

GASKET-Muffler

$

$

Not available

7

Homelite UP00492

PISTON ASSEMBLY

$

$

Not available

8

Homelite PS00843

RING-Retaining

$

$

Not available

9

Homelite PS00677

RING-Piston

$

$

Not available

10

Homelite PS00488

BEARING, Wrist Pin

$

$

Not available

11

Homelite UP00472

CRANKCASE ASSEMBLY

$

$

Currently unavailable

12

Homelite PS00823

GASKET-Crankcase

$

$

Not available

13

Homelite PS00824

SCREW (M5 x 25)

Note: Torque Specs 32-48 In/Lbs, 3.6-7.9 Nm

$2.49

$

Usually ships in 3-7 days

0

14

Homelite UP00561

HEAT DAM ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

15

Homelite PS00610

GASKET-Carburetor

$

$

Not available

16

Homelite PS00852

SCREW-Socket Hd

Note: Torque Specs 54-70 In/Lbs, 6.1-7.9 Nm

$2.49

$

Usually ships in 3-7 days

0

17

Homelite PS00608

WIRE-Ground

$

$

Currently unavailable

18

Homelite PS00645

CRANKSHAFT COMPLETE

$

$

Not available

19

Homelite PS01147

STUD, Crankshaft

$

$

Not available

20

Homelite UP00481

RUBBER BUMPER KIT

$

$

Not available
