GE 25 (UT-26102) - Green Machine Edger Driveshaft Housing & Blade Guard Parts Diagram

Edger

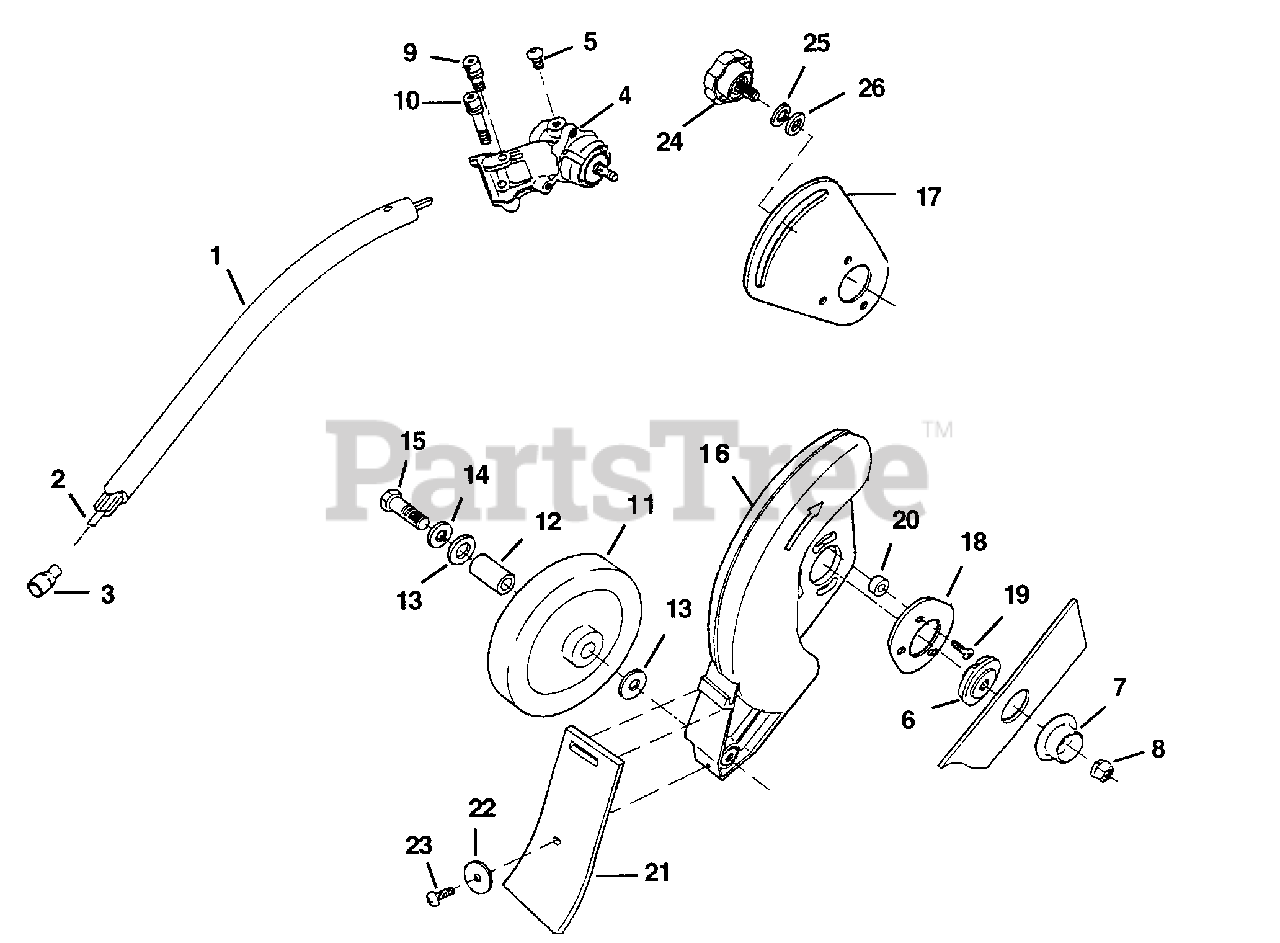

Driveshaft Housing & Blade Guard Parts Diagram

  • Title

1

Homelite UP00559

DRIVESHAFT ASSEMBLY

$

$

Not available

2

Homelite PS00725

SHAFT, Flexible

$

$

Currently unavailable

3

Homelite PS00795

SPACER, Flex Shaft

$

$

Not available

4

Homelite UP00570

GEAR HEAD

$

$

Not available

5

Homelite PS00552

BOLT, Oil (M6 x 8)

Note: Torque Specs 61-91 In/Lbs, 6.9-10.3 Nm

$

$

Not available

6

Homelite PS00555

WASHER, Flange

$

$

Not available

7

Homelite PS00556

WASHER, Cupped

$

$

Not available

8

Homelite PS00452

NUT(MB)

Note: Torque Specs 148-164 In/Lbs, 16.7-18.5 Nm

$

$

Not available

9

Homelite PS00554

SCREW, Socket Hd (M5 x 25)

Note: Torque Specs 44-60 In/Lbs, 5.0-6.8 Nm

$

$

Not available

10

Homelite PS00553

SCREW, Socket Hd (M5 x 12)

Note: Torque Specs 44-60 In/Lbs, 5.0-6.8 Nm

$

$

Not available

11

Homelite UP00572

WHEEL ASSEMBLY

$

$

Not available

12

Homelite PS01040

SPACER

$

$

Not available

13

Homelite PS00767

WASHER

$

$

Not available

14

Homelite PS01039

WASHER, Spring

$

$

Not available

15

Homelite PS00496

BOLT, Hex Hd (M5 x 50)

Note: Torque Specs 7-17 In/Lbs, .8-1.9 Nm

$

$

Not available

16

Homelite UP00574

BLADE GUARD ASSEMBLY

$

$

Not available

17

Homelite PS00672

PLATE, Adjusting

$

$

Currently unavailable

18

Homelite PS00575

PLATE, Mounting

$

$

Not available

19

Homelite PS01371

SCREW (M5 x 16)

Note: Torque Specs 20-30 In/Lbs, 2.3-3.4 Nm; Red 262 Loctite Required

$

$

Not available

20

Homelite PS01373

SPACER

$

$

Not available

21

Homelite PS01374

DEFLECTOR

$

$

Not available

22

Homelite PS00536

WASHER

$

$

Not available

23

Homelite PS00683

SCREW, Pan Hd

$

$

Not available

24

Homelite PS00580

KNOB, Depth Adjust

$

$

Not available

25

Homelite PS01039

WASHER, Lock

$

$

Not available

26

Homelite PS00767

WASHER, Flat

$

$

Not available
