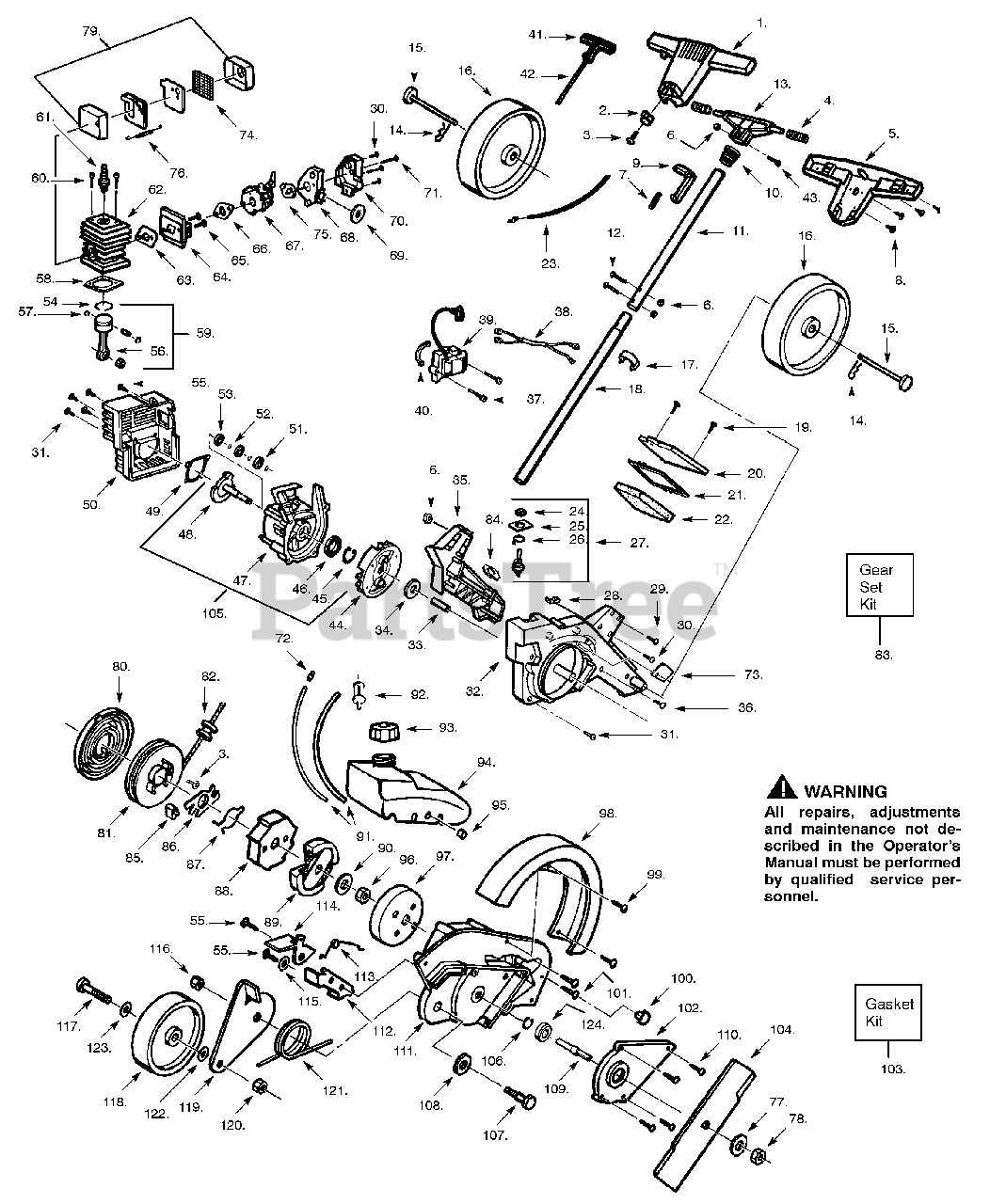

GE 21 - Weed Eater Edger Product Complete Parts Diagram

Edger

Product Complete Parts Diagram

  • Title
1

Poulan 530036677

Upper Handle

$8.99

$

Usually ships in 3-10 days

0

2

Poulan 530036985

Handle Eyelet

$1.99

$

Usually ships in 3-10 days

0

$6.49

$

In Stock, only 1 left!

0

4

Poulan 530036981

Spring Isolator

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 530036676

Lower Handle

$6.99

$

Usually ships in 3-10 days

0

6

Poulan 530015768

Locknut-Coupling/Shaft

$6.49

$

In Stock, only 2 left!

0

7

Poulan 530036982

Throttle Spring

$1.99

$

Usually ships in 3-10 days

0

8

Poulan 503210719

Screw-Handle

$2.49

$

In Stock, only 1 left!

0

9

Poulan 530036673

Throttle Trigger

$

$

Not available

10

Poulan 530036984

Handle Spring

$2.99

$

Usually ships in 3-10 days

0

11

Poulan 530095104

Upper Handle Tube

$15.99

$

Usually ships in 3-10 days

0

12

Poulan 530015999

Screw-Shaft

$1.99

$

Usually ships in 3-10 days

0

13

Poulan 530036983

Coupling-Handle

$2.99

$

Usually ships in 3-10 days

0

14

Poulan 530016002

Bridgepin

$

$

Not available

15

Poulan 530015997

Axle Pin

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530095126

Rear Wheel

$

$

Not available

17

Poulan 530015982

Tube Clamp

$

$

Not available

18

Poulan 530095103

Lower Handle Tube

$15.99

$

Usually ships in 3-10 days

0

19

Poulan 530015983

Screw-Filter Cover

$1.99

$

Usually ships in 3-10 days

0

20

Poulan 530036632

Air Filter Cover Type 1 & 2

$

$

Not available

20

Poulan 530036631

Air Filter Cover Type 3

$3.99

$

In Stock, only 2 left!

0

21

$6.49

$

In Stock, only 1 left!

0

22

Poulan 530036664

Air Filter Foam

$

$

Not available

23

Poulan 530036674

Throttle Cable

$15.99

$

Usually ships in 3-10 days

0

24

Poulan 530016038

Boot w/Nut

$

$

Not available

25

Poulan 530038474

Switch Indicating Plate
(Superseded to 530053920)

$13.99

$

In Stock, only 1 left!

0

26

Poulan 530037066

Grounding Terminal

$1.99

$

Usually ships in 3-10 days

0

27

Poulan 530014707

Switch Grounding Assy

Note: (Incl. 24-26)

$

$

Not available

28

Poulan 530015922

Speed Nut

$6.49

$

In Stock, Qty 5

0

29

Poulan 530015774

Screw-Fan Housing

$6.49

$

In Stock, only 1 left!

0

30

Poulan 530015886

Screw-Fan Housing

$6.49

$

In Stock, only 3 left!

0

31

Poulan 530016386

Screw-Fan Housing/Shroud

$8.99

$

In Stock, only 1 left!

0

32

Poulan 530047945

Fan Housing Kit

Note: (Incl. 73 & 101)

$

$

Not available

33

Poulan 530036927

Flywheel Spacer

$3.99

$

In Stock, Qty 9

0

34

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 530038301

Axle Cover

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530015940

Screw-Fan Housing

$6.49

$

In Stock, Qty 8

0

37

Poulan 530015954

Screw-Ignition Module

$4.99

$

Usually ships in 3-10 days

0

38

Poulan 530014655

Switch Wire Ass'y.

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

40

Poulan 530036145

Spacer-Ignition Module

$3.99

$

In Stock, only 3 left!

0

41

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

42

Poulan 530069421

Rope Kit

$

$

Not available

43

Poulan 530015774

Screw-Coupling

$6.49

$

In Stock, only 1 left!

0

44

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

45

Poulan 530015945

Retaining Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 530019179

C'case Seal

$

$

Not available

47

Poulan 530014861

Crankcase Ass'y.

Note: (Incl. 45, 46, 51 & 52)

$

$

Not available

48

Poulan 530014864

Crankshaft Ass'y.

$21.99

$

Usually ships in 3-10 days

0

49

Poulan 530019181

Gasket-Crankcase

$6.49

$

In Stock, only 3 left!

0

50

$14.99

$

Usually ships in 3-10 days

0

51

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

52

Poulan 530015941

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

54

Poulan 530036404

Piston Ring

$

$

Not available

55

Poulan 530015934

Screw-Shroud

$4.99

$

In Stock, only 1 left!

0

56

Poulan 530069615

Connecting Rod Ass'y.

Note: (Incl. 53)

$24.99

$

Usually ships in 3-10 days

0

57

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

58

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, only 3 left!

0

59

Poulan 530069621

Piston Kit

Note: (Incl. 54)

$36.99

$

Usually ships in 3-10 days

0

60

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

61

Poulan 530030075

Spark Plug (RCJ-8Y)

$

$

Not available

62

Poulan 530069619

Cylinder Kit
(Superseded to 530012353)

$

$

Not available

63

Poulan 530019185

Gasket-Cylinder/Carb Adaptor
(Superseded to 530019233)

$3.99

$

In Stock, only 1 left!

0

64

Poulan 530036646

Carb. Adaptor

$2.49

$

In Stock, only 1 left!

0

65

Poulan 530016014

Screw-Carb Adaptor

$6.49

$

In Stock, only 3 left!

0

66

Poulan 530019194

Carb. Gasket

$6.49

$

In Stock, only 4 left!

0

67

Poulan 530035328

Carburetor w/Choke Type 1 & 2 (WT-242)

$

$

Not available

67

Poulan 530069654

Carburetor w/Choke Type 3 (WT-308)
(Superseded to 530071634)

$66.99

$

In Stock, only 1 left!

0

67

Poulan 530071634

Carburetor w/Choke Type 3 (WT-630)

$66.99

$

In Stock, only 1 left!

0

68

Poulan 530036626

Air Box Base

$3.99

$

Usually ships in 3-10 days

0

69

Poulan 530019190

Foam Seal

$

$

Not available

70

Poulan 530036622

Airbox Cover

$3.99

$

Usually ships in 3-10 days

0

71

Poulan 530015887

Screw-Airbox Cover

$4.99

$

In Stock, only 2 left!

0

72

Poulan 530023877

Fuel Line Fitting

$5.99

$

In Stock, Qty 18

0

73

Poulan 530038308

Fuel Line Retainer

$

$

Not available

74

Poulan 530036180

Muffler Screen

$

$

Not available

75

Poulan 530019144

Gasket-Carb.

$3.99

$

In Stock, only 1 left!

0

76

Poulan 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 5

0

77

Poulan 530016033

Washer-Blade

$

$

Not available

78

Poulan 530016032

Nut-Blade

$6.49

$

Usually ships in 3-10 days

0

79

Poulan 530069660

Muffler Kit

Note: (Incl. 73-78)

$15.99

$

Usually ships in 3-10 days

0

80

Poulan 530037229

Starter Spring
(Superseded to 545008006)

$

$

Not available

81

Poulan 530069418

Starter Pulley Kit

Note: (Incl. 3, 83 & 85)

$12.99

$

In Stock, only 3 left!

0

82

$1.99

$

In Stock, Qty 7

0

83

Poulan 530071258

Gear Set Kit

$24.99

$

Usually ships in 3-10 days

0

84

Poulan 530019199

Gasket-Tube

$1.99

$

Usually ships in 3-10 days

0

85

Poulan 530027162

Starter Dog

$6.49

$

In Stock, only 2 left!

0

86

Poulan 530042073

Starter Cam

$3.99

$

In Stock, Qty 9

0

87

Poulan 530042072

Starter Dog Wire

$

$

Not available

88

Poulan 530036922

Starter Cup

$4.99

$

Usually ships in 3-10 days

0

89

Poulan 530014832

Clutch Ass'y.

$

$

Not available

90

Poulan 530015127

Washer-Belleville

$6.49

$

In Stock, only 2 left!

0

91

Poulan 530069599

Fuel Line Kit

$7.49

$

In Stock, Qty 5

0

92

Poulan 530014815

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

93

Poulan 530014347

Fuel Cap Ass'y.

$9.49

$

In Stock, Qty 15

0

94

Poulan 530058793

Fuel Tank Ass'y.

$

$

Not available

95

Poulan 530036792

Fuel Tank Isolator

$7.49

$

Usually ships in 3-10 days

0

$5.99

$

Usually ships in 3-10 days

0

97

Poulan 530036665

Drum Clutch

$

$

Not available

98

Poulan 530095082

Front Shield

$

$

Not available

99

$6.49

$

Usually ships in 3-10 days

0

100

Poulan 530036935

Dustplug

$

$

Not available

101

Poulan 530015770

Screw-Bearing Holder

$

$

Not available

102

Poulan 530036934

Bearing Holder Ass'y. Type 1

$60.99

$

Usually ships in 3-10 days

0

102

Poulan 530037367

Bearing Holder Ass'y. Type 2 & 3

$

$

Not available

103

Poulan 530069624

Gasket Kit

Note: (Incl. 21,49,58,63,66,& 75)

$

$

Not available

104

$6.49

$

Usually ships in 3-10 days

0

105

Poulan 530014906

C'case & C'shaft Ass'y.
(Superseded to 530071625)

Note: (Incl. 45-48, & 51-53)

$

$

Not available

106

Poulan 530037625

Retainer Ring

$

$

Not available

107

Poulan 530016067

Shoulder Bolt

$2.49

$

Usually ships in 3-10 days

0

108

$2.49

$

Usually ships in 3-10 days

0

109

Poulan 530095070

Drive Shaft

$24.99

$

Usually ships in 3-10 days

0

110

$6.49

$

In Stock, Qty 16

0

111

Poulan 530014894

Gear Box Ass'y.

$

$

Not available

112

Poulan 530036675

Back Plate

$4.99

$

Usually ships in 3-10 days

0

113

$3.99

$

Usually ships in 3-10 days

0

114

Poulan 530036683

Height Lever

$4.99

$

Usually ships in 3-10 days

0

115

Poulan 530027163

Retainer-Starter Pulley

$

$

Not available

116

Poulan 530016063

Nut-Swing Arm

$1.99

$

Usually ships in 3-10 days

0

117

Poulan 530015981

Bolt-Front Wheel

$4.99

$

Usually ships in 3-10 days

0

118

Poulan 530095125

Front Wheel

$

$

Not available

119

Poulan 530037279

Swing Arm

$6.49

$

Usually ships in 3-10 days

0

120

Poulan 530015515

Locknut-Swing Arm

$4.99

$

In Stock, only 1 left!

0

121

Poulan 530036884

Front Axle Spring

$2.49

$

In Stock, only 1 left!

0

122

Poulan 530001717

Washer-Thrust

$3.99

$

In Stock, only 1 left!

0

123

Poulan 530015151

Washer-Flat

$

$

Not available

124

Poulan 530016042

Washer-Thrust

$

$

Not available

124

Poulan 530-068542

Operator Manual Type 1 & 2

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

124

Poulan 545-117553

Operator Manual Type 3 French/English

Note: Not Shown

$

$

Not available

124

Poulan 530-036662

Starting Instruction Decal Type I

Note: Not Shown

$

$

Not available

124

Poulan 530-037580

Starting Instruction Decal Type 2

Note: Not Shown

$

$

Not available

124

Poulan 530-056387

Starting Instruction Decal Type 3 French/English

Note: Not Shown

$

$

Not available

124

Poulan 530-036658

Blade Shield Decal

Note: Not Shown

$

$

Not available

124

Poulan 530-031111

Hex Wrench 5/32

Note: Not Shown

$4.99

$

In Stock, only 1 left!

0
