GE 21 - Weed Eater Edger Carburetor Assembly Parts Diagram

Edger

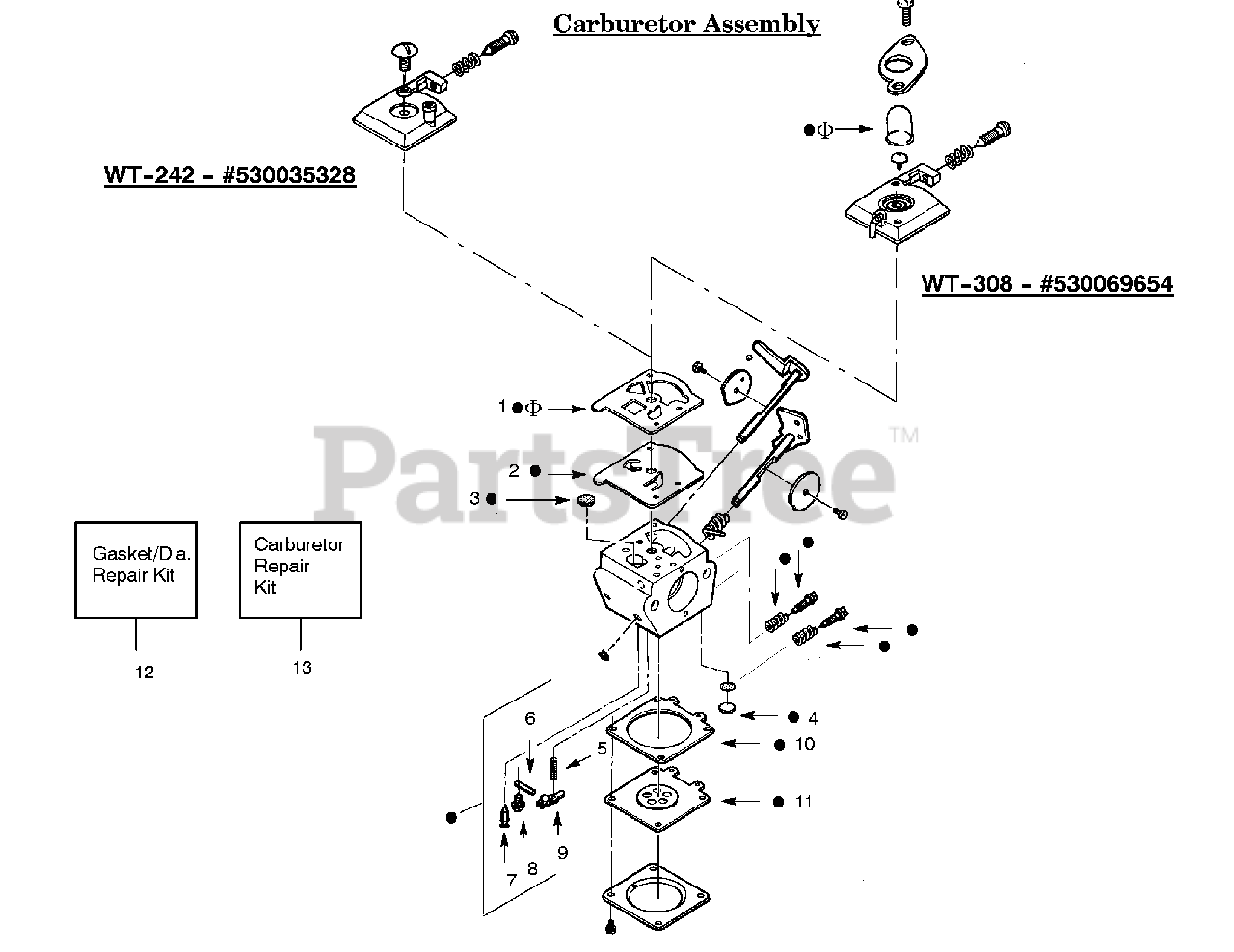

Carburetor Assembly Parts Diagram

Poulan 530035328

WT-242

$

$

Not available

Poulan 530069654

WT-308
(Superseded to 530071634)

$66.99

$

Usually ships in 3-10 days

0

1

Poulan 530035164

Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, Qty 5

0

2

Poulan 530035166

Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 15

0

3

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530035162

Welch Plug

$

$

Not available

5

Poulan 530035139

Metering Lever Spring
(Superseded to 530035188)

$4.99

$

In Stock, Qty 10

0

6

Poulan 530035250

Metering Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

7

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 7

0

8

Poulan 530035236

Metering Lever Pin Screw

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

10

Poulan 530035320

Metering Diaphragm Gasket

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 9

0

12

Poulan 530035313

Gasket/Diaphragm Kit

Note: (Incl. 1, 2, 10 & 11)

$

$

Not available

13

Poulan 530035312

Carburetor Repair Kit WT-242

Note: (Includes 1-12)

$30.99

$

Usually ships in 3-10 days

0

13

Poulan 530069658

Carburetor Repair Kit WT-308

Note: These parts are illustrated for clarity. Order complete assembly.

$

$

Not available
