GD410 VAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) FLYWHEEL Parts Diagram
Engine, Made in Japan

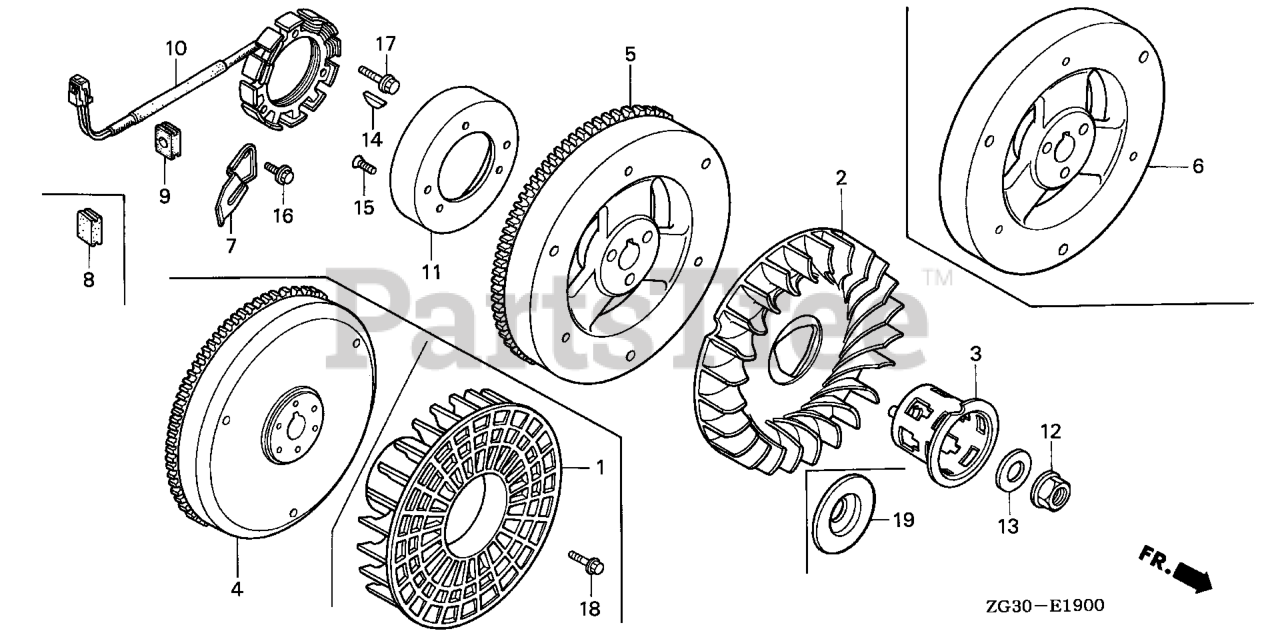

FLYWHEEL Parts Diagram
Honda 19511-ZG3-000
FAN, COOLING (Honda Code 3625514).
$54.99
$
Usually ships in 3-6 days
Honda 28451-ZG3-004
SEE PART DETAILS - PRI; PULLEY, STARTER (Honda Code 4799417).
$44.99
$
Usually ships in 3-6 days
Honda 31100-ZG3-801
FLYWHEEL (SEL)
$
$
Not available
Honda 31511-ZG3-800
CLAMP, WIRE (Honda Code 3620416).
$8.99
$
Usually ships in 3-6 days
Honda 31512-ZG3-000
GROMMET, WIRE (Honda Code 3620424).
$3.99
$
Usually ships in 3-6 days
Honda 31601-ZG3-801
STATOR (1.7A) (Honda Code 3620432).
$162.99
$
Usually ships in 3-6 days
Honda 31610-ZG3-801
ROTOR (4MAG) (Honda Code 3620457).
$140.99
$
Usually ships in 3-6 days
Honda 90201-ZG3-000
NUT, FLANGE (20MM) (Honda Code 3620747).
$13.99
$
Usually ships in 3-6 days
Honda 90401-ZG3-000
WASHER (20MM) (Honda Code 3620770).
$17.99
$
Usually ships in 3-6 days
Honda 90741-ZG3-000
KEY, WOODRUFF (50X7) (Honda Code 3621000).
$13.99
$
Usually ships in 3-6 days
Honda 93600-06012-0A
SEE PART DETAILS - PRI; SCREW, FLAT (6X12) (Honda Code 1354745).
$1.49
$
Usually ships in 3-6 days
Honda 95701-06012-00
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.
$2.49
$
In Stock, Qty 19
Honda 90015-ZG3-000
BOLT, FLANGE (6X22) (Honda Code 3620671).
$1.99
$
Usually ships in 3-6 days
