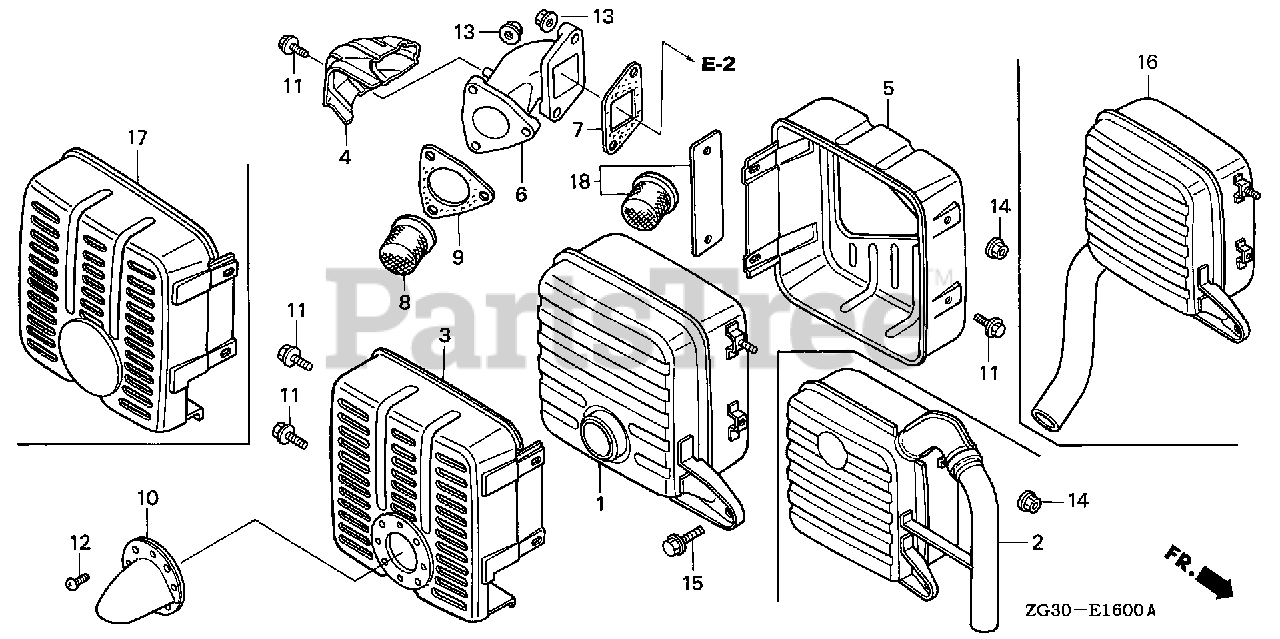

GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) MUFFLER (1) Parts Diagram

Engine, Made in Japan

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZG3-003

MUFFLER

$314.99

$

Usually ships in 3-6 days

0

3

Honda 18321-ZG3-003

PROTECTOR A, MUFFLER

$74.99

$

Usually ships in 3-6 days

0

4

Honda 18323-ZG3-800

PROTECTOR, EX. PIPE (NOT AVAILABLE)

Note: Use up to Engine SN 1009311.

$

$

Currently unavailable

5

Honda 18325-ZG3-003

PROTECTOR B, MUFFLER

$74.99

$

Usually ships in 3-6 days

0

6

Honda 18331-ZG3-000

PIPE, EX.

Note: Use from Engine SN 1009311.

$160.99

$

Usually ships in 3-6 days

0

6

Honda 18331-ZG3-800

PIPE, EX.

Note: Use up to Engine SN 1009310.

$130.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZG3-800

GASKET, EX. PIPE (NON-ASBESTOS)

$10.99

$

Usually ships in 3-6 days

0

8

Honda 18355-ZG3-000

ARRESTER, SPARK

Note: Use up to Engine SN 1009311.

$28.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZG3-800

GASKET, MUFFLER (NON-ASBESTOS)

$11.99

$

Usually ships in 3-6 days

0

10

Honda 18431-ZG3-800

DEFLECTOR, MUFFLER

Note: (Optional).

$36.99

$

Usually ships in 3-6 days

0

11

Honda 90002-ZG3-000

BOLT, FLANGE (5X8)

Note: Use up to Engine SN 1009311.

$2.49

$

Usually ships in 3-6 days

0

12

Honda 93500-05008-0B

SCREW, PAN (5X8)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94050-08020

NUT, FLANGE (8MM)

$2.99

$

Usually ships in 3-6 days

0

15

Honda 95701-08020-00

BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0
