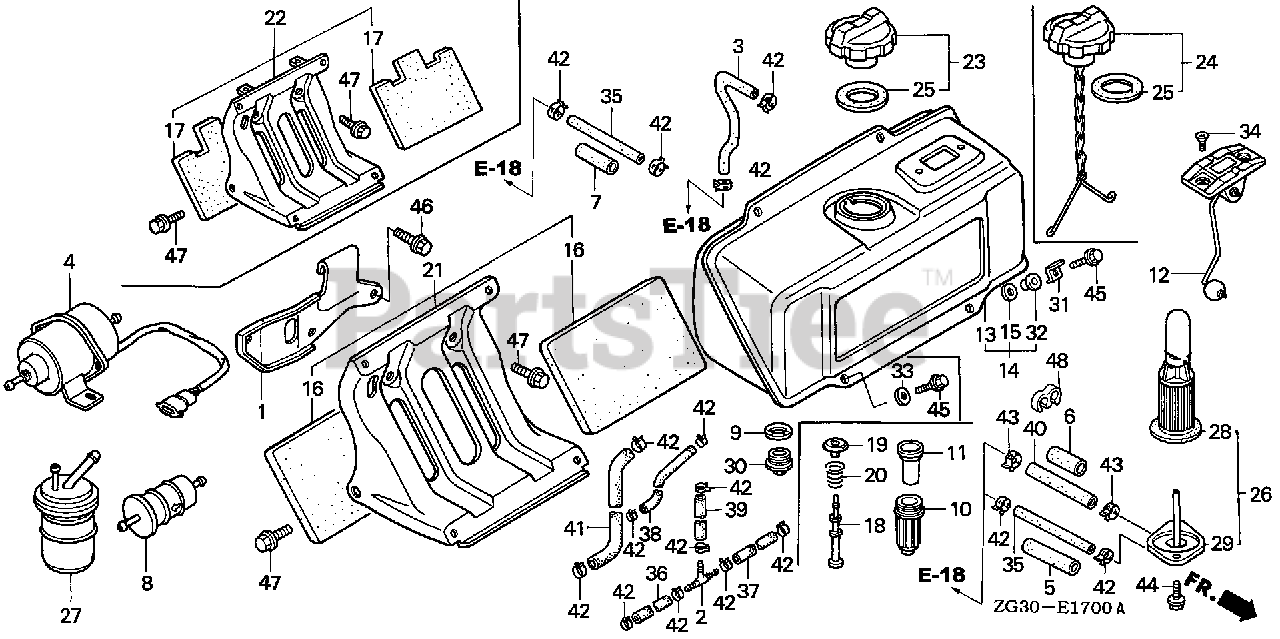

GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 11911-ZG3-000

HANGER, ENGINE

$13.99

$

Usually ships in 3-6 days

0

3

Honda 16346-ZG3-000

TUBE, FUEL

$6.49

$

Usually ships in 3-6 days

0

5

Honda 16854-ZG3-000

RUBBER, SUPPORTER (9X48)

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16857-ZG3-000

RUBBER, SUPPORTER (B)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 16858-ZG3-000

RUBBER, SUPPORTER (9X30)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 16963-443-901

GASKET

$11.99

$

Usually ships in 3-6 days

0

12

Honda 17505-ZG3-801

GAUGE ASSY., FUEL

Note: Use from Engine SN 1009311.

$

$

Not available

13

Honda 17510-ZG3-000ZC

TANK, FUEL (4.5L) *R8* (BRIGHT RED)

Note: Use up to Engine SN 1009310.

$292.99

$

Usually ships in 3-6 days

0

13

Honda 17510-ZG3-800ZC

TANK, FUEL *R280* (GAUGE) (POWER RED)

Note: Use from Engine SN 1009311.

$267.99

$

Usually ships in 3-6 days

0

16

Honda 17535-ZG3-000

SEAT, TANK STAY

$14.99

$

Usually ships in 3-6 days

0

21

Honda 17560-ZG3-000

STAY, FUEL TANK

$131.99

$

Usually ships in 3-6 days

0

23

Honda 17620-ZG3-003

CAP, FUEL FILLER

Note: Use from Engine SN 1009311.

$33.99

$

Usually ships in 3-6 days

0

24

Honda 17620-ZG3-801

CAP, FUEL FILLER

Note: Use up to Engine SN 1009310.

$

$

Not available

25

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

$

$

Not available

26

Honda 17670-ZG3-013

FILTER ASSY., FUEL

$109.99

$

Usually ships in 3-6 days

0

28

Honda 17682-ZG3-003

STRAINER

$61.99

$

Usually ships in 3-6 days

0

29

Honda 17687-ZG3-013

BODY, STRAINER

$56.99

$

Usually ships in 3-6 days

0

30

Honda 90021-ZG3-003

BOLT, DRAIN

$14.99

$

Usually ships in 3-6 days

0

31

Honda 90407-ZG3-000

WASHER, SPECIAL (6MM) (NOT AVAILABLE)

Note: Use up to Engine SN 1004184.

$

$

Not available

31

Honda 90407-ZG3-010

WASHER, SPECIAL (6MM)

Note: Use from Engine SN 1004185.

$

$

Not available

34

Honda 93600-05010-0A

SCREW, FLAT (5X10)

Note: Use from Engine SN 1009311.

$1.49

$

In Stock, Qty 10

0

35

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

$54.99

$

In Stock, only 1 left!

0

40

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (95001-80001-(95001-80001-60M)

$35.99

$

Usually ships in 3-6 days

0

42

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, only 4 left!

0

43

Honda 95002-41250-08

CLAMP, TUBE (D12.5)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

45

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

47

Honda 95701-08022-00

BOLT, FLANGE (8X22)

$2.99

$

In Stock, Qty 7

0
