GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) CYLINDER HEAD COVER Parts Diagram

Engine, Made in Japan

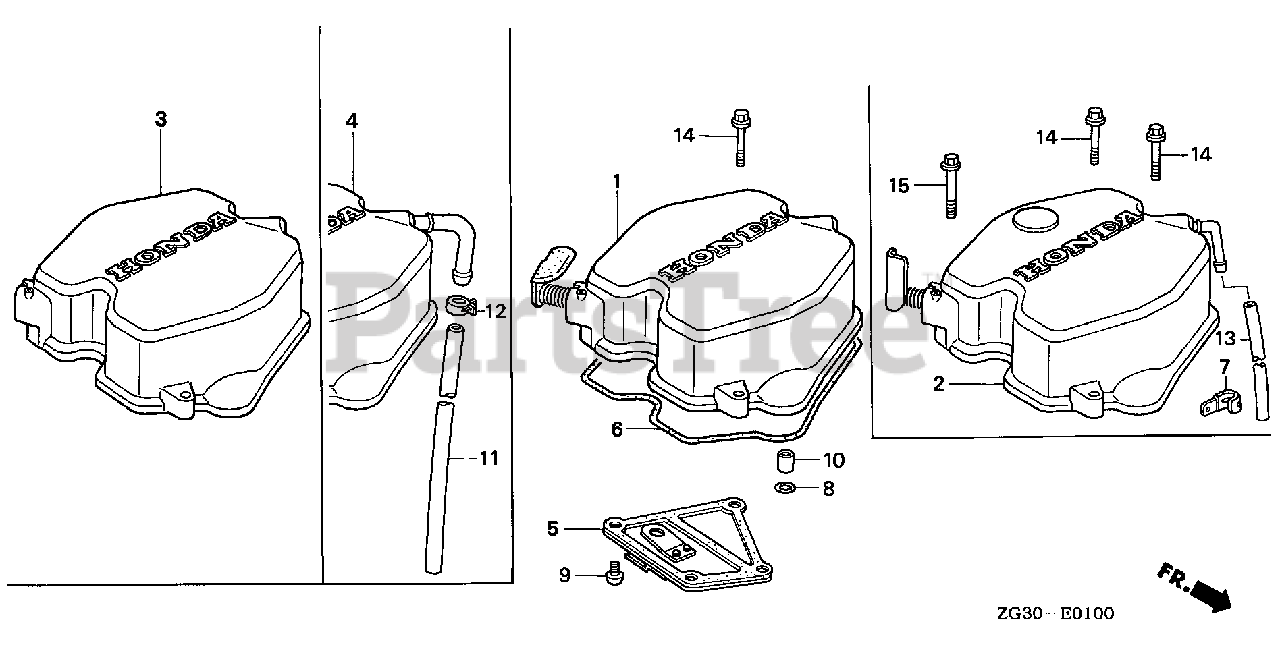

CYLINDER HEAD COVER Parts Diagram

  • Title

1

Honda 04101-ZG3-800

COVER, CYLINDER HEAD (SEL)

Note: Use up to Engine SN 1001551.

$102.99

$

Usually ships in 3-6 days

0

1

Honda 12310-ZG3-802

COVER, CYLINDER HEAD (SEL)

Note: Use from Engine SN 1001552.

$91.99

$

Usually ships in 3-6 days

0

5

Honda 12380-ZG3-000

PLATE, BREATHER

$32.99

$

Usually ships in 3-6 days

0

6

Honda 12391-ZG3-000

O-RING, HEAD COVER

$30.99

$

Usually ships in 3-6 days

0

8

Honda 51866-SA5-801

O-RING

$3.49

$

Usually ships in 3-6 days

0

9

Honda 90009-ZG3-000

SCREW, PAN (6X8)

Note: Use up to Engine SN 1011687.

$

$

Not available

9

Honda 93500-06008-0A

SCREW, PAN (6X8)

Note: Use from Engine SN 1011688.

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93500-06008-0H

SCREW, PAN (6X8)

Note: Use from Engine SN 1011688.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 94301-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 95701-06028-00

BOLT, FLANGE (6X28)

Note: Use up to Engine SN 1001159.

$2.49

$

In Stock, Qty 7

0

14

Honda 95701-06032-00

BOLT, FLANGE (6X32)

Note: Use from Engine SN 1001160.

$2.49

$

In Stock, Qty 5

0
