GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) CYLINDER Parts Diagram

Engine, Made in Japan

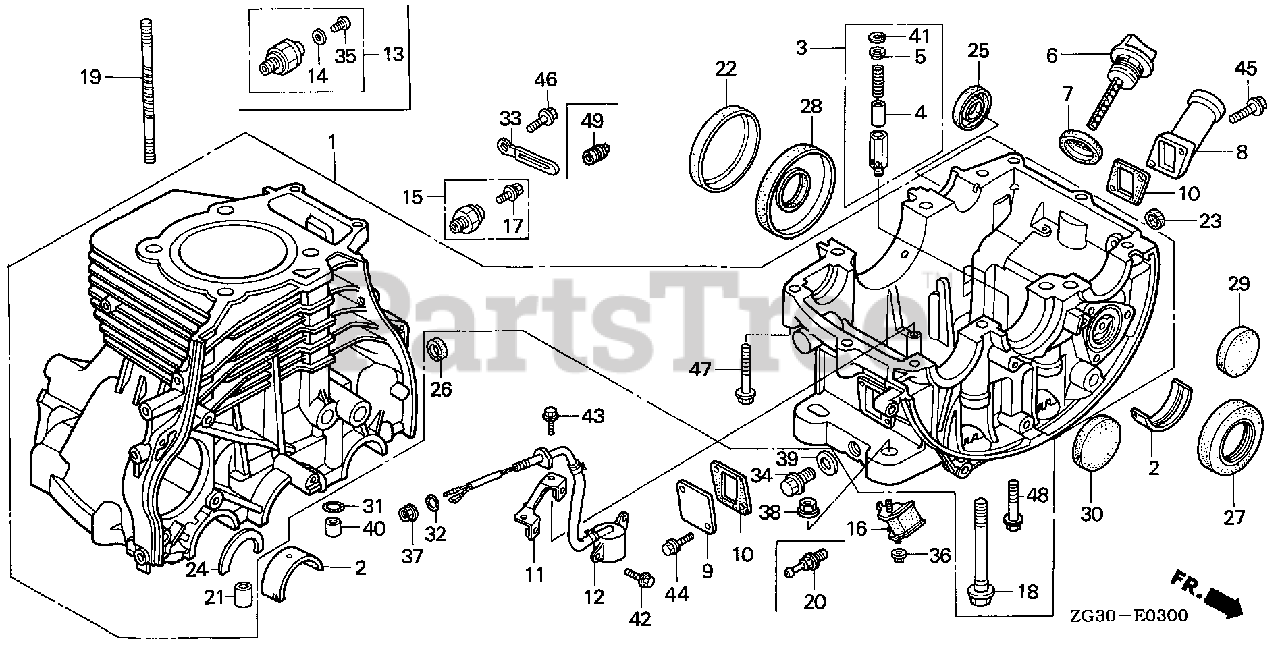

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZG3-Q10

CYLINDER ASSY. (Q-SEL)

$975.99

$

Usually ships in 3-6 days

0

2

Honda 13321-ZG3-003

BEARING A, MAIN (BLUE)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13322-ZG3-003

BEARING B, MAIN (BLACK)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13323-ZG3-003

BEARING C, MAIN (BROWN)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13324-ZG3-003

BEARING D, MAIN (GREEN)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13325-ZG3-003

BEARING E, MAIN (YELLOW)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13326-ZG3-003

BEARING F, MAIN (PINK)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13327-ZG3-003

BEARING G, MAIN (RED)

$26.99

$

Usually ships in 3-6 days

0

2

Honda 13332-ZG3-000

BEARING A, MAIN (UNDER SIZE 0.25) (BLACK)

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

2

Honda 13333-ZG3-000

BEARING B, MAIN (UNDER SIZE 0.25) (BROWN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13334-ZG3-000

BEARING C, MAIN (UNDER SIZE 0.25) (GREEN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13336-ZG3-000

BEARING A, MAIN (UNDER SIZE 0.50) (BLACK)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13337-ZG3-000

BEARING B, MAIN (UNDER SIZE 0.50) (BROWN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13338-ZG3-000

BEARING C, MAIN (UNDER SIZE 0.50) (GREEN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13342-ZG3-000

BEARING A, MAIN (UNDER SIZE 0.75) (BLACK)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13343-ZG3-000

BEARING B, MAIN (UNDER SIZE 0.75) (BROWN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13344-ZG3-000

BEARING C, MAIN (UNDER SIZE 0.75) (GREEN)

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

3

Honda 15220-413-020

VALVE ASSY., RELIEF (NOT AVAILABLE)

$

$

Not available

4

Honda 15231-413-020

VALVE, RELIEF

$28.99

$

Usually ships in 3-6 days

0

5

Honda 15233-413-000

SEAT, RELIEF VALVE (NOT AVAILABLE)

$

$

Not available

6

Honda 15620-ZG3-000

CAP, OIL FILLER

$11.99

$

Usually ships in 3-6 days

0

7

Honda 15625-ZE8-000

GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

8

Honda 15631-ZG3-000

EXTENSION, OIL FILLER

$46.99

$

Usually ships in 3-6 days

0

9

Honda 15634-ZG3-000

PLATE, EXTENSION

$16.99

$

Usually ships in 3-6 days

0

10

Honda 15635-ZG3-800

GASKET, EXTENSION OIL FILLER (NON-ASBESTOS)

$2.49

$

In Stock, Qty 5

0

18

Honda 90005-ZG3-003

BOLT-WASHER (11X115)

$10.99

$

Usually ships in 3-6 days

0

19

Honda 90020-ZG3-003

BOLT, STUD (10X103.5)

$13.99

$

Usually ships in 3-6 days

0

21

Honda 90715-PC6-000

PIN, DOWEL (13X20)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

26

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

27

Honda 91201-ZG3-003

OIL SEAL (40X67X10)

$17.99

$

Usually ships in 3-6 days

0

28

Honda 91202-ZG3-003

OIL SEAL (36X90X9)

$19.99

$

Usually ships in 3-6 days

0

29

Honda 91204-ZG3-000

PLUG, SEALING (47MM)
(Superseded to 91204-ZG3-003)

Note: Use up to Engine SN 1001159.

$11.99

$

Usually ships in 3-6 days

0

29

Honda 91204-ZG3-003

PLUG, SEALING (47MM)

Note: Use from Engine SN 1001160.

$11.99

$

Usually ships in 3-6 days

0

30

Honda 91205-ZG3-000

PLUG, SEALING (52MM)

$13.99

$

Usually ships in 3-6 days

0

31

Honda 91305-PE2-003

O-RING (9.8X1.9)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 92800-14000

BOLT, DRAIN PLUG (14MM)

$5.99

$

Usually ships in 3-6 days

0

39

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

40

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

41

Honda 94520-12000

CIRCLIP (INNER) (12MM)

$1.49

$

Usually ships in 3-6 days

0

44

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

45

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.49

$

In Stock, only 1 left!

0

48

Honda 95701-08040-00

BOLT, FLANGE (8X40)

Note: Use up to Engine SN 1000905.

$1.99

$

In Stock, Qty 20+

0

48

Honda 95701-08050-00

BOLT, FLANGE (8X50)

Note: Use from Engine SN 1000906.

$3.49

$

In Stock, Qty 5

0
