GD410 QAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-9999999) AIR CLEANER Parts Diagram

Engine, Made in Japan

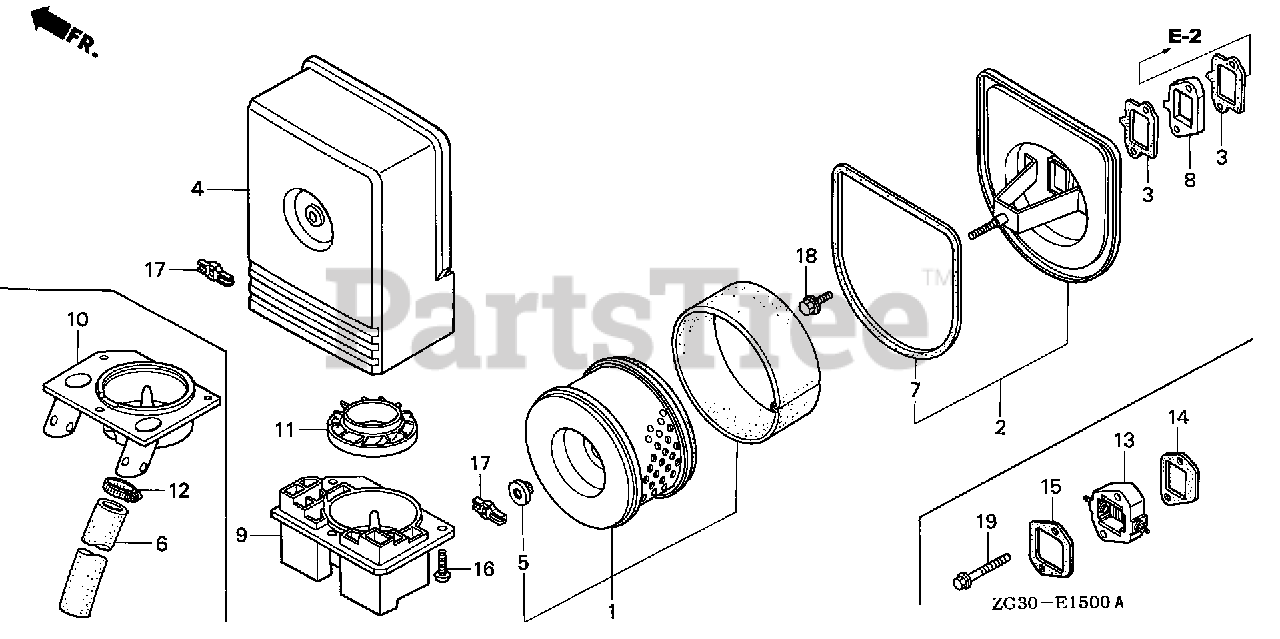

AIR CLEANER Parts Diagram

  • Title
1

Honda 17210-ZG3-505

ELEMENT, AIR CLEANER

$38.99

$

Usually ships in 3-6 days

0

2

Honda 17220-ZG3-003

HOUSING, AIR CLEANER

$72.99

$

Usually ships in 3-6 days

0

3

Honda 17228-ZG3-800

GASKET, AIR CLEANER (NON-ASBESTOS)

$4.99

$

Usually ships in 3-6 days

0

4

Honda 17230-ZG3-000

COVER, AIR CLEANER

$55.99

$

Usually ships in 3-6 days

0

5

Honda 17232-ZG3-003

GROMMET, AIR CLEANER

$6.99

$

Usually ships in 3-6 days

0

7

Honda 17406-ZG3-000

GASKET, AIR CLEANER HOUSING

$15.99

$

Usually ships in 3-6 days

0

9

Honda 17471-ZG3-010

SEE PART DETAILS - PRI; CASE, PRE CLEANER

$16.99

$

Usually ships in 3-6 days

0

11

Honda 17476-ZG3-003

GUIDE, PRE AIR CLEANER

$13.99

$

Usually ships in 3-6 days

0

16

Honda 90142-MB0-000

SCREW, PAN (5X16.5)

$3.49

$

In Stock, only 4 left!

0

17

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$10.99

$

In Stock, only 3 left!

0

18

Honda 95701-08022-00

BOLT, FLANGE (8X22)

$2.99

$

In Stock, Qty 7

0
