GD410 QAAE (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) STARTER MOTOR (1) Parts Diagram

Engine, Made in Japan

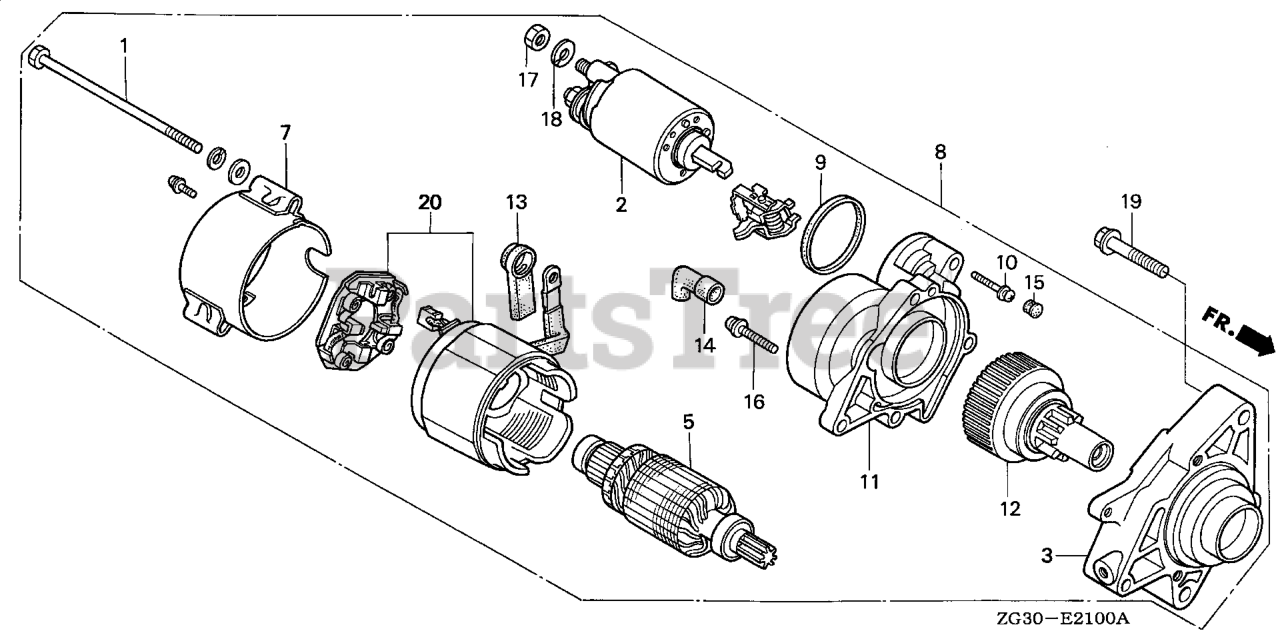

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31202-PC2-681

BOLT, THROUGH (Honda Code 1359157).

$

$

Not available

2

Honda 31204-ZG3-802

SWITCH ASSY., MAGNETIC (Honda Code 3625647).

$518.99

$

Usually ships in 3-6 days

0

3

Honda 31205-ZG3-801

COVER, GEAR (Honda Code 3625654).

$

$

Not available

5

Honda 31207-PH3-954

ARMATURE (N/A: SEE ASSEMBLY) (Honda Code 3562121).

$

$

Currently unavailable

7

Honda 31209-PH7-006

BRACKET, RR. (Honda Code 3625670).

$

$

Not available

8

Honda 31210-ZG3-804

STARTER MOTOR ASSY.

$1290.99

$

Usually ships in 3-6 days

0

9

Honda 31211-PC2-006

RING, SQUARE (MITSUBA) (NOT AVAILABLE)

$

$

Not available

10

Honda 31217-PC2-006

SCREW-WASHER (4X28) (MITSUBA) (Honda Code 1359322).

$5.99

$

Usually ships in 3-6 days

0

11

Honda 31229-PH7-026

SEE PART DETAILS - PRI; CASE, FR. (Honda Code 3736725).

$

$

Not available

12

Honda 31230-ZG3-801

GEAR ASSY. (Honda Code 3625704).

$

$

Not available

13

Honda 31235-PD2-016

SEE PART DETAILS - SUP; COVER, TERMINAL (Honda Code 1963537).

$

$

Currently unavailable

14

Honda 31251-PD2-026

TUBE, LABYRINTH

$

$

Currently unavailable

15

Honda 31252-PD2-006

SEE PART DETAILS - SUP; BUSH, RUBBER (Honda Code 1565969).

$

$

Not available

16

Honda 93892-06030-18

SCREW-WASHER (6X30)

$

$

Currently unavailable

17

Honda 94002-080000S

NUT,HEX 8MM
(Superseded to 94002-08000-0S)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0260331).

$1.49

$

Usually ships in 3-6 days

0

19

Honda 95701-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) Use up to Engine SN 1003236.

$1.99

$

In Stock, Qty 20+

0

20

Honda 31260-PP8-006

STATOR SET

$

$

Not available
