GD410 PA (GPA) - Honda Engine, Made in Japan (SN: GPA-1000001 - GPA-1021879) RECOIL STARTER (1) Parts Diagram

Engine, Made in Japan

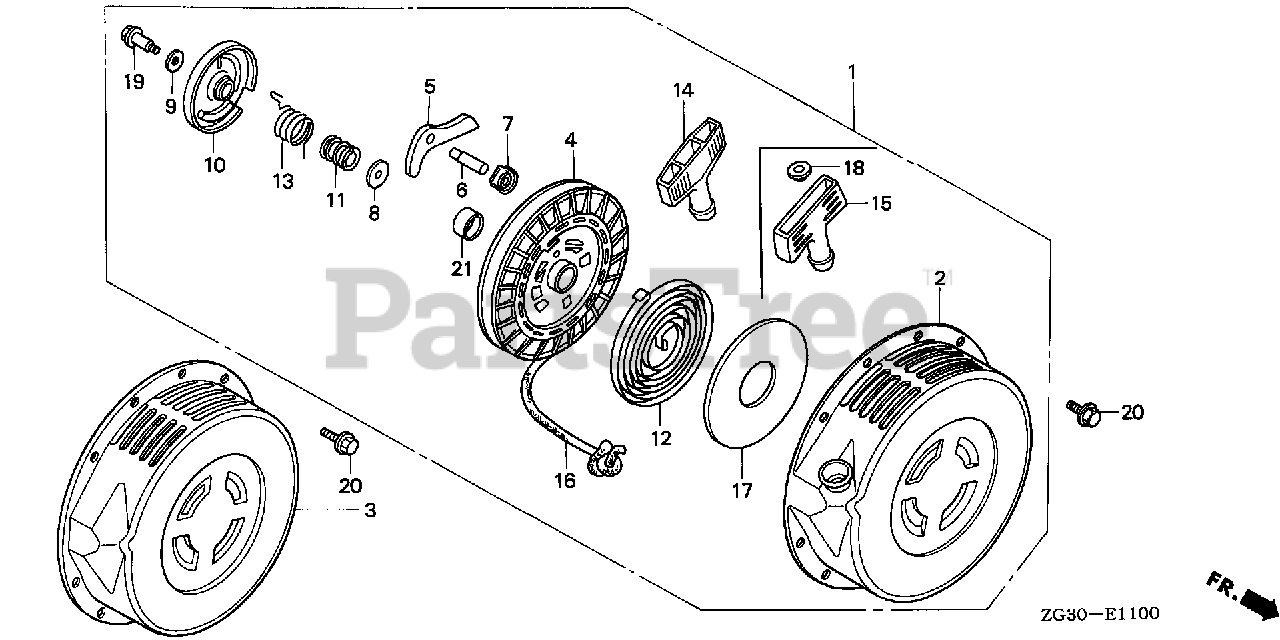

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZG3-014ZA

STARTER ASSY., RECOIL *NH116M* (URBAN SILVER METALLIC)

$115.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG3-003ZA

SEE PART DETAILS - SUP; CASE, STARTER *NH116M* (URBAN SILVER METALLIC)
(Superseded to 28410-ZG3-004)

Note: Use up to Engine SN 1000113.

$213.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG3-004

SEE PART DETAILS - PRI; CASE, STARTER

$213.99

$

Usually ships in 3-6 days

0

4

Honda 28420-ZE8-811

SEE PART DETAILS - SUP; REEL, STARTER
(Superseded to 28420-ZE8-812)

Note: Use up to Engine SN 1000113.

$60.99

$

In Stock, only 2 left!

0

4

Honda 28420-ZE8-812

SEE PART DETAILS - PRI; REEL, STARTER

$60.99

$

In Stock, only 2 left!

0

5

Honda 28422-ZG3-004

RATCHET, STARTER

$17.99

$

Usually ships in 3-6 days

0

6

Honda 28423-ZG3-004

SHAFT, RATCHET

$12.99

$

Usually ships in 3-6 days

0

7

Honda 28424-ZE1-712

PLATE, GUIDE

$5.49

$

Usually ships in 3-6 days

0

8

Honda 28431-ZG3-004

PLATE A, FRICTION

$9.49

$

Usually ships in 3-6 days

0

9

Honda 28432-ZG0-003

PLATE B, FRICTION

Note: Use up to Engine SN 1000113.

$2.99

$

Usually ships in 3-6 days

0

9

Honda 28432-883-T20

PLATE B, FRICTION

Note: Use from Engine SN 1000114.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 28434-ZE8-811

COVER, STARTER REEL
(Superseded to 28434-ZE8-812)

Note: Use up to Engine SN 1000113.

$11.99

$

Usually ships in 3-6 days

0

10

Honda 28434-ZE8-812

COVER, STARTER REEL

$11.99

$

Usually ships in 3-6 days

0

11

Honda 28441-ZG3-004

SPRING, FRICTION (D=13.0MM / L=16.3MM)

$4.49

$

Usually ships in 3-6 days

0

12

Honda 28442-ZE1-713

SPRING, RETURN

$22.99

$

In Stock, only 1 left!

0

13

Honda 28449-ZG3-004

SPRING, TORSION

$6.49

$

Usually ships in 3-6 days

0

14

Honda 28461-889-631

GRIP, STARTER

Note: Use up to Engine SN 1000113.

$11.99

$

In Stock, Qty 14

0

15

Honda 28461-ZG3-014

GRIP, STARTER

Note: Use from Engine SN 1000114.

$10.99

$

Usually ships in 3-6 days

0

16

Honda 28462-ZG3-003

ROPE, STARTER

Note: Use up to Engine SN 1000113.

$

$

Currently unavailable

16

Honda 28462-ZG3-004

ROPE, STARTER

Note: Use from Engine SN 1000114.

$26.99

$

Usually ships in 3-6 days

0

18

Honda 28469-ZE2-W01

REINFORCEMENT, GRIP

Note: Use from Engine SN 1000114.

$6.99

$

In Stock, only 1 left!

0

19

Honda 90003-ZG0-003

BOLT, REEL COVER (NOT AVAILABLE)

Note: Use up to Engine SN 1000113.

$

$

Not available

19

Honda 90003-ZG3-004

BOLT (6MM)

Note: Use from Engine SN 1000114.

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)
(Superseded to 95701-06008-00)

$4.49

$

In Stock, Qty 20+

0

21

Honda 91501-ZG3-004

COLLAR

$4.49

$

Usually ships in 3-6 days

0
