GD320 WA (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) CONTROL Parts Diagram

Engine, Made in Japan

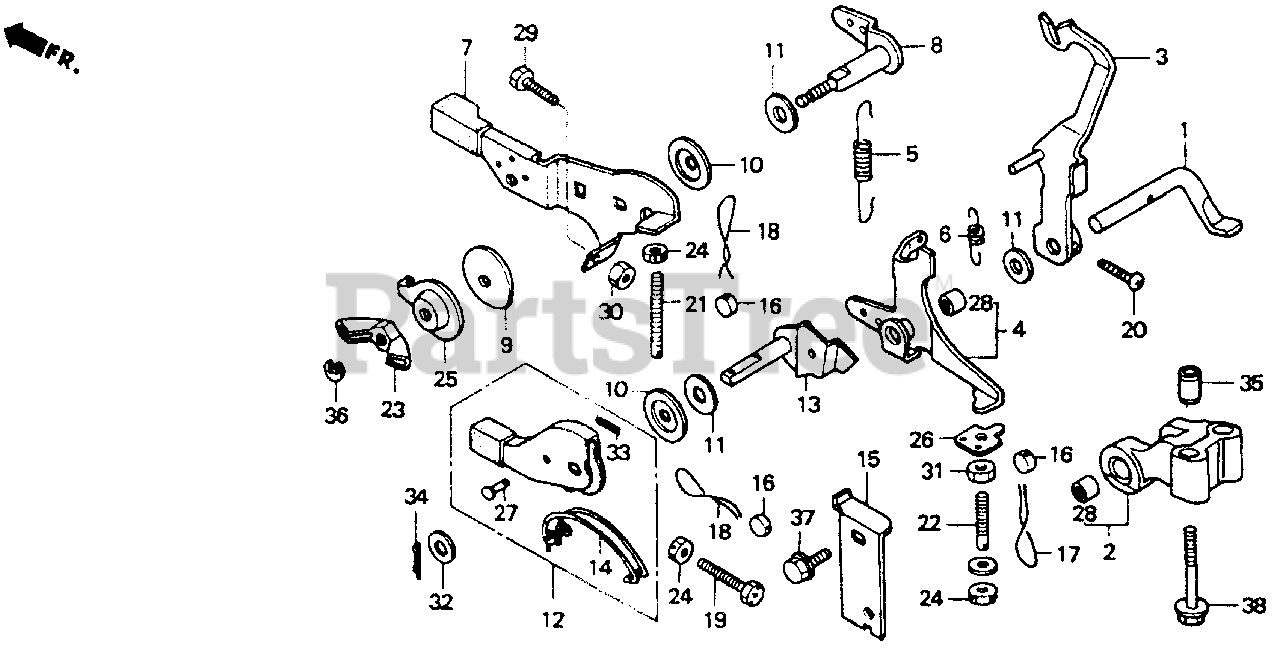

CONTROL Parts Diagram

  • Title

1

Honda 16541-ZG3-000

SHAFT, GOVERNOR ARM (Honda Code 3619731).

$25.99

$

Usually ships in 3-6 days

0

2

Honda 16544-ZG3-000

STAY, GOVERNOR SHAFT (Honda Code 3619749).

$62.99

$

Usually ships in 3-6 days

0

3

Honda 16550-ZG3-000

ARM, GOVERNOR (Honda Code 3619756).

$50.99

$

Usually ships in 3-6 days

0

4

Honda 16558-ZG3-010

ARM, SUB-GOVERNOR (Honda Code 3619764).

$30.99

$

Usually ships in 3-6 days

0

5

Honda 16561-ZG3-000

SPRING, GOVERNOR (Honda Code 3619772).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16563-ZG3-000

SPRING, IDLE (Honda Code 3619780).

$2.49

$

Usually ships in 3-6 days

0

7

Honda 16571-ZG3-010

LEVER, CONTROL (Honda Code 3619798).

$24.99

$

Usually ships in 3-6 days

0

8

Honda 16572-ZG3-000

SHAFT, CONTROL LEVER (Honda Code 3619806).

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16574-ZG3-000

SPRING, LEVER (Honda Code 3619814).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16577-ZG3-000

SPACER, CONTROL LEVER (A) (Honda Code 3619822).

$3.99

$

Usually ships in 3-6 days

0

11

Honda 16578-ZG3-000

SPACER, CONTROL LEVER (B) (Honda Code 3619830).

$2.99

$

Usually ships in 3-6 days

0

12

Honda 16630-ZG3-000

LEVER, STOP (Honda Code 3619848).

$37.99

$

Usually ships in 3-6 days

0

13

Honda 16632-ZG3-000

SHAFT, STOP LEVER (Honda Code 3619855).

$25.99

$

Usually ships in 3-6 days

0

14

Honda 16633-ZG3-300

SPRING, STOP LEVER (Honda Code 3619863).

$12.99

$

Usually ships in 3-6 days

0

15

Honda 16645-ZG3-000

HOLDER, STOP CABLE (Honda Code 3619871).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 16727-705-000

END, LOCK (Honda Code 2555233).

$4.99

$

Usually ships in 3-6 days

0

17

Honda 16728-ZG3-000

WIRE, LOCK (A) (Honda Code 3619905).

$1.99

$

Usually ships in 3-6 days

0

18

Honda 16729-ZG3-000

WIRE, LOCK (B) (Honda Code 3619913).

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90007-ZG3-000

BOLT, RECESSED (6X32) (Honda Code 3620622).

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90010-ZG3-000

SCREW, PAN (3X18) (Honda Code 3620648).

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90045-ZG3-000

BOLT, CONTROL ADJUSTING (Honda Code 3620721).

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90102-ZG3-000

BOLT, ADJUSTING (Honda Code 3620739).

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90203-679-000

NUT, PLUG COVER (Honda Code 3620754).

$7.49

$

Usually ships in 3-6 days

0

24

Honda 90206-ZG3-000

NUT, HEX. (6MM) (Honda Code 3620762).

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90405-ZG3-000

WASHER (6X30) (Honda Code 3620804).

$6.49

$

Usually ships in 3-6 days

0

26

Honda 90426-ZG3-000

WASHER, SEALING (Honda Code 3620838).

$5.49

$

Usually ships in 3-6 days

0

27

Honda 90751-ZG3-300

PIN, CENTER (4X16.5) (Honda Code 3621018).

$3.99

$

Usually ships in 3-6 days

0

28

Honda 91024-KG4-004

BEARING, NEEDLE (8X12X10) (TOYO) (Honda Code 3621083).

$19.99

$

Usually ships in 3-6 days

0

29

Honda 92301-06020-0A

SEE PART DETAILS - PRI; BOLT, SLOT (6X20) (Honda Code 2937324).

$1.99

$

Usually ships in 3-6 days

0

30

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

30

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

31

Honda 94001-06280-0S

NUT, HEX. (6MM) (Honda Code 3621158).

$1.99

$

Usually ships in 3-6 days

0

32

Honda 94102-08000

WASHER, PLAIN (8MM) (Honda Code 0199596).

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94201-16080

PIN, COTTER (1.6) (Honda Code 1238393).

$1.49

$

Usually ships in 3-6 days

0

34

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, COTTER (2.5MM) (Honda Code 0156091).

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

36

Honda 94540-03010

E-RING (3MM) (Honda Code 2395390).

$1.49

$

In Stock, only 3 left!

0

37

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2410942).

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95701-06040-09

BOLT, FLANGE (6X40) (Honda Code 2552529).

$

$

Currently unavailable
