GD320 VA (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) OIL PUMP Parts Diagram

Engine, Made in Japan

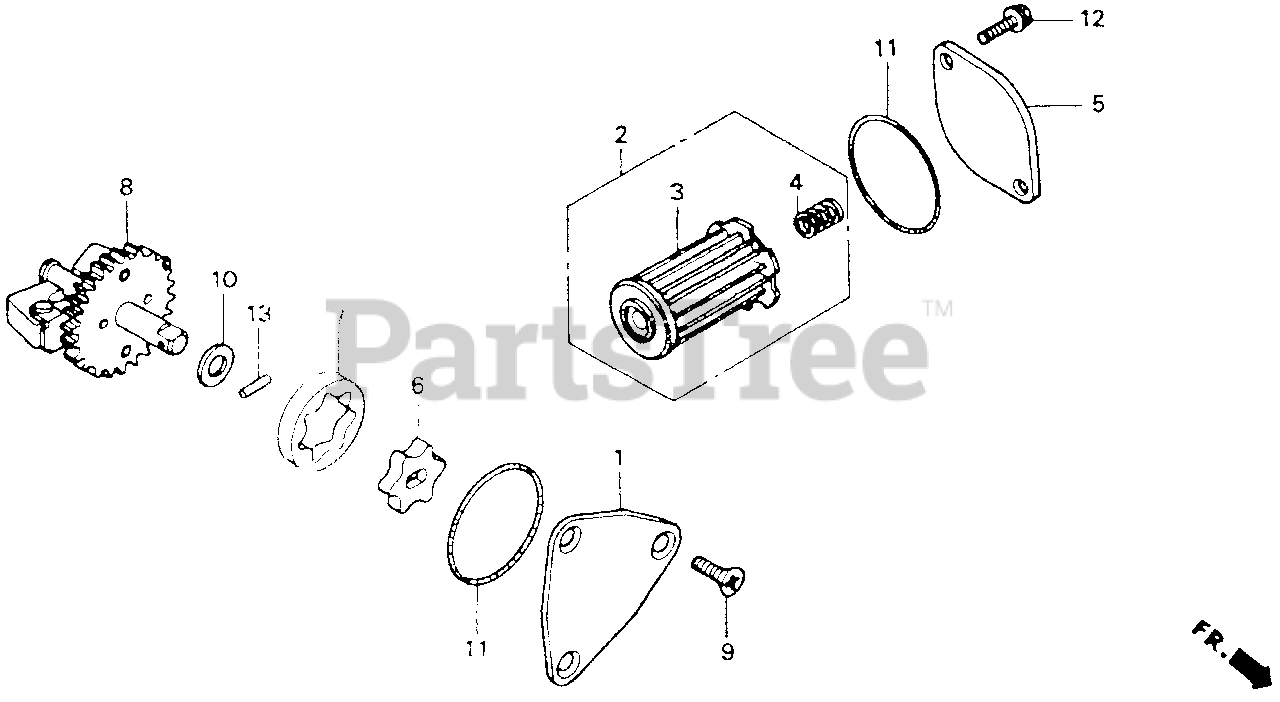

OIL PUMP Parts Diagram

  • Title

1

Honda 15121-ZG3-000

COVER, OIL PUMP (Honda Code 3619350).

$16.99

$

Usually ships in 3-6 days

0

2

Honda 15220-ZG3-000

STRAINER, OIL (Honda Code 4038402).

Note: Use from Engine SN 1007199.

$78.99

$

Usually ships in 3-6 days

0

3

Honda 15221-ZG3-000

STRAINER, OIL (Honda Code 3619368).

Note: Use up to Engine SN 1007198.

$

$

Not available

4

Honda 15223-ZG3-000

SPRING, OIL STRAINER (Honda Code 3619376).

Note: Use up to Engine SN 1007198.

$

$

Not available

4

Honda 15223-ZG3-300

SPRING, OIL STRAINER (Honda Code 4038410).

Note: Use from Engine SN 1007199.

$3.49

$

Usually ships in 3-6 days

0

5

Honda 15224-ZG3-000

COVER, OIL STRAINER (Honda Code 3619384).

$10.99

$

Usually ships in 3-6 days

0

6

Honda 15331-ZG3-013

ROTOR, OIL PUMP (INNER) (Honda Code 3619392).

$24.99

$

Usually ships in 3-6 days

0

7

Honda 15341-ZG3-003

ROTOR, OIL PUMP (OUTER) (Honda Code 3619400).

$28.99

$

Usually ships in 3-6 days

0

8

Honda 16510-ZG3-010

WEIGHT, GOVERNOR (Honda Code 3619723).

$162.99

$

Usually ships in 3-6 days

0

9

Honda 90011-ZG3-000

SCREW, FLAT (6X16) (Honda Code 3620655).

$1.99

$

Usually ships in 3-6 days

0

10

Honda 90443-ZG3-000

WASHER (10.1MM) (Honda Code 3620846).

$3.49

$

Usually ships in 3-6 days

0

11

Honda 91301-ZG3-000

O-RING (42.2X2.4) (Honda Code 3621125).

$3.49

$

Usually ships in 3-6 days

0

12

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

$2.49

$

In Stock, only 2 left!

0

13

Honda 96220-30134

ROLLER (3X13.4) (Honda Code 3621174).

$0.99

$

Usually ships in 3-6 days

0
