GD320 QAAE (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) STARTER MOTOR Parts Diagram

Engine, Made in Japan

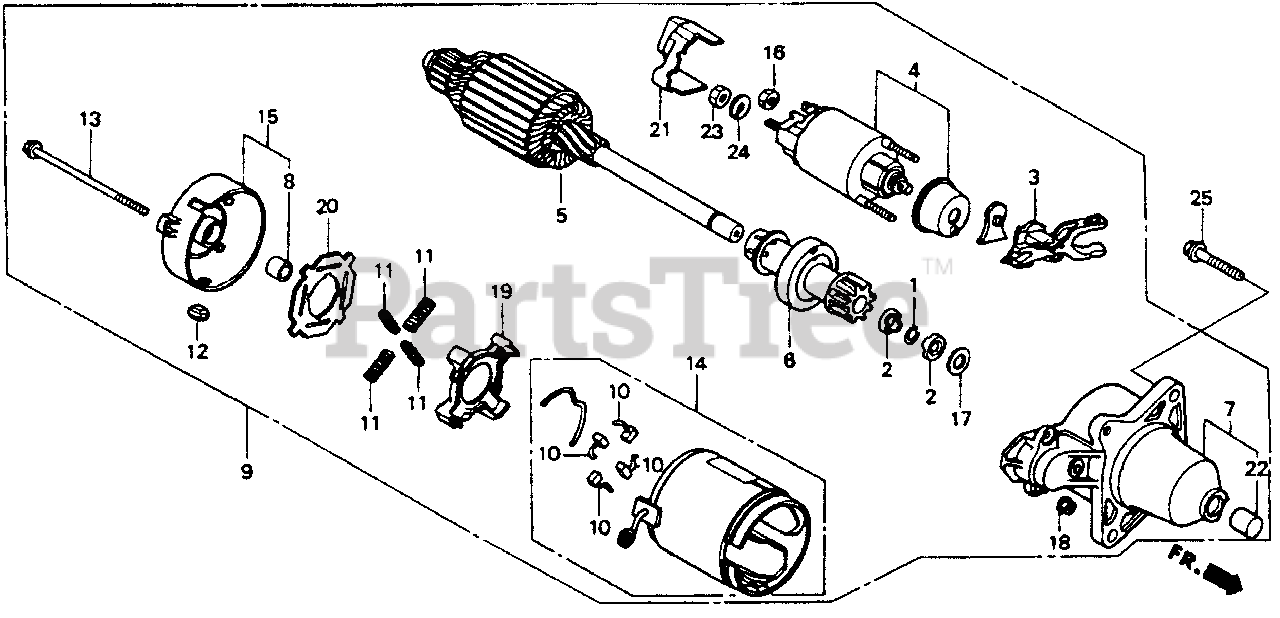

STARTER MOTOR Parts Diagram

  • Title

1

Honda 30201-PH9-004

RING, SNAP (DENSO) (Honda Code 3508322).

$3.99

$

Usually ships in 3-6 days

0

2

Honda 30202-PH9-004

COLLAR, CLUTCH STOP (Honda Code 3508330).

$

$

Currently unavailable

3

Honda 31203-PN4-003

LEVER, PINION DRIVE (Honda Code 3508397).

$40.99

$

Usually ships in 3-6 days

0

4

Honda 31204-ZG4-801

SWITCH ASSY., MAGNETIC (Honda Code 3508405).

$

$

Currently unavailable

5

Honda 31206-ZG4-801

ARMATURE (Honda Code 3620325).

$264.99

$

Usually ships in 3-6 days

0

6

Honda 31207-ZG4-801

CLUTCH, OVERRUNNING (Honda Code 3620333).

$352.99

$

Usually ships in 3-6 days

0

7

Honda 31208-ZG4-801

HOUSING, DRIVE SIDE (Honda Code 3620341).

$145.99

$

Usually ships in 3-6 days

0

8

Honda 31210-PH9-004

BEARING B (Honda Code 3508413).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 31210-ZG4-802

MOTOR ASSY., STARTER (Honda Code 3620358).
(Superseded to 31210-ZG4-803)

$902.99

$

Usually ships in 3-6 days

0

10

Honda 31211-PH9-004

BRUSH (Honda Code 3620366).

$21.99

$

Usually ships in 3-6 days

0

11

Honda 31212-PH9-004

SPRING, BRUSH (Honda Code 3508439).

$7.99

$

Usually ships in 3-6 days

0

12

Honda 31213-679-004

COVER (Honda Code 3620374).

$60.99

$

Usually ships in 3-6 days

0

13

Honda 31214-PH9-004

BOLT, THROUGH (Honda Code 3508454).

$12.99

$

Usually ships in 3-6 days

0

14

Honda 31218-ZG4-801

YOKE (Honda Code 3508462).

$315.99

$

Usually ships in 3-6 days

0

15

Honda 31219-ZG4-801

FRAME, COMMUTATOR END (Honda Code 3620382).

$64.99

$

Usually ships in 3-6 days

0

16

Honda 31220-PH9-004

NUT, HEX. (8MM) (Honda Code 3508470).

$4.99

$

Usually ships in 3-6 days

0

17

Honda 31221-PH9-004

WASHER (Honda Code 3508488).

$4.49

$

Usually ships in 3-6 days

0

18

Honda 31223-PA0-006

NUT, FLANGE (5MM) (Honda Code 0839688).

$4.99

$

Usually ships in 3-6 days

0

19

Honda 31231-PH9-004

HOLDER, BRUSH (Honda Code 3508496).

$67.99

$

Usually ships in 3-6 days

0

20

Honda 31233-PH9-004

INSULATOR, BRUSH HOLDER (Honda Code 3508504).

$41.99

$

Usually ships in 3-6 days

0

21

Honda 31235-ZG4-801

COVER, TERMINAL (Honda Code 3508512).

$6.99

$

Usually ships in 3-6 days

0

22

Honda 91002-ZG4-801

BEARING A (Honda Code 3509684).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 6

0

24

Honda 94111-08000

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0058982).

$1.49

$

Usually ships in 3-6 days

0

25

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 5

0
