GD320 QAAE (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) FUEL TANK Parts Diagram

Engine, Made in Japan

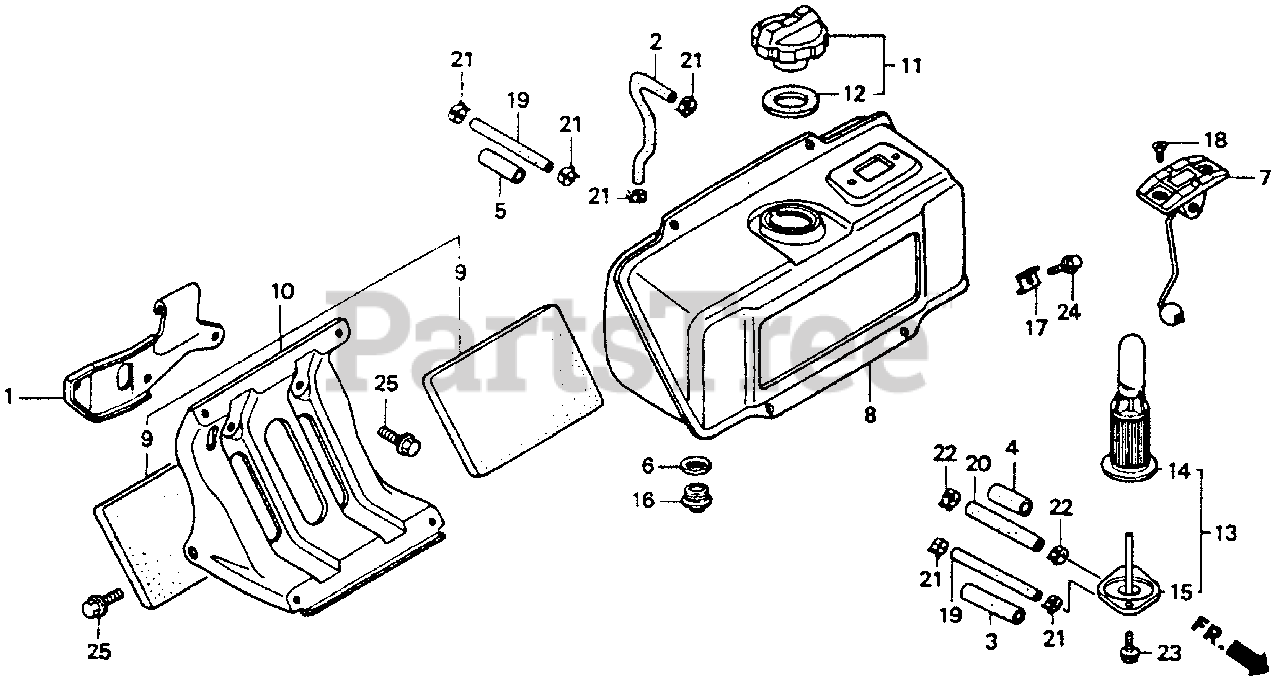

FUEL TANK Parts Diagram

  • Title

1

Honda 11911-ZG3-000

HANGER, ENGINE (Honda Code 3618626).

$13.99

$

Usually ships in 3-6 days

0

2

Honda 16346-ZG4-000

TUBE, FUEL (Honda Code 3619475).

$6.49

$

Usually ships in 3-6 days

0

3

Honda 16854-ZG3-000

RUBBER, SUPPORTER (A) (Honda Code 3619921).

$4.49

$

Usually ships in 3-6 days

0

4

Honda 16857-ZG3-000

RUBBER, SUPPORTER (B) (Honda Code 3619939).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16858-ZG3-000

RUBBER, SUPPORTER (C) (Honda Code 3619947).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16963-443-901

GASKET (Honda Code 2297232).

$11.99

$

Usually ships in 3-6 days

0

7

Honda 17505-ZG3-801

GAUGE ASSY., FUEL (Honda Code 3620036).

$

$

Not available

8

Honda 17510-ZG3-800ZA

SEE PART DETAILS - SUP; TANK, FUEL *R8* (GAUGE) (BRIGHT RED) (Honda Code 3620044).

$

$

Currently unavailable

9

Honda 17535-ZG3-000

SEAT, TANK STAY (Honda Code 3620051).

$14.99

$

Usually ships in 3-6 days

0

10

Honda 17560-ZG3-000

STAY, FUEL TANK (Honda Code 3620069).

$131.99

$

Usually ships in 3-6 days

0

11

Honda 17620-ZG3-003

CAP, FUEL FILLER (Honda Code 3620077).

$33.99

$

Usually ships in 3-6 days

0

12

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

$

$

Not available

13

Honda 17670-ZG3-013

FILTER ASSY., FUEL (Honda Code 3620085).

$109.99

$

Usually ships in 3-6 days

0

14

Honda 17682-ZG3-003

STRAINER (Honda Code 3620093).

$61.99

$

Usually ships in 3-6 days

0

15

Honda 17687-ZG3-013

BODY, STRAINER (Honda Code 3620101).

$56.99

$

Usually ships in 3-6 days

0

16

Honda 90021-ZG3-003

BOLT, DRAIN (Honda Code 3620697).

$14.99

$

Usually ships in 3-6 days

0

17

Honda 90407-ZG3-010

WASHER, SPECIAL (6MM) (Honda Code 3620812).

$

$

Not available

18

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, Qty 10

0

19

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X100) (Honda Code 5137104).

$54.99

$

In Stock, only 1 left!

0

20

Honda 95001-80001-60M

BULK HOSE, FUEL (8X1000) (8X90) (Honda Code 5243886).

$35.99

$

Usually ships in 3-6 days

0

21

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

22

Honda 95002-41250-08

CLIP, TUBE (D12.5) (Honda Code 0665257).

$3.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2105799).

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0

25

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22) (Honda Code 2652626).

$2.99

$

In Stock, Qty 7

0
