GD320 PAA (GPB) - Honda Engine, Made in Japan (SN: GPB-1000001 - GPB-1008896) PISTON Parts Diagram

Engine, Made in Japan

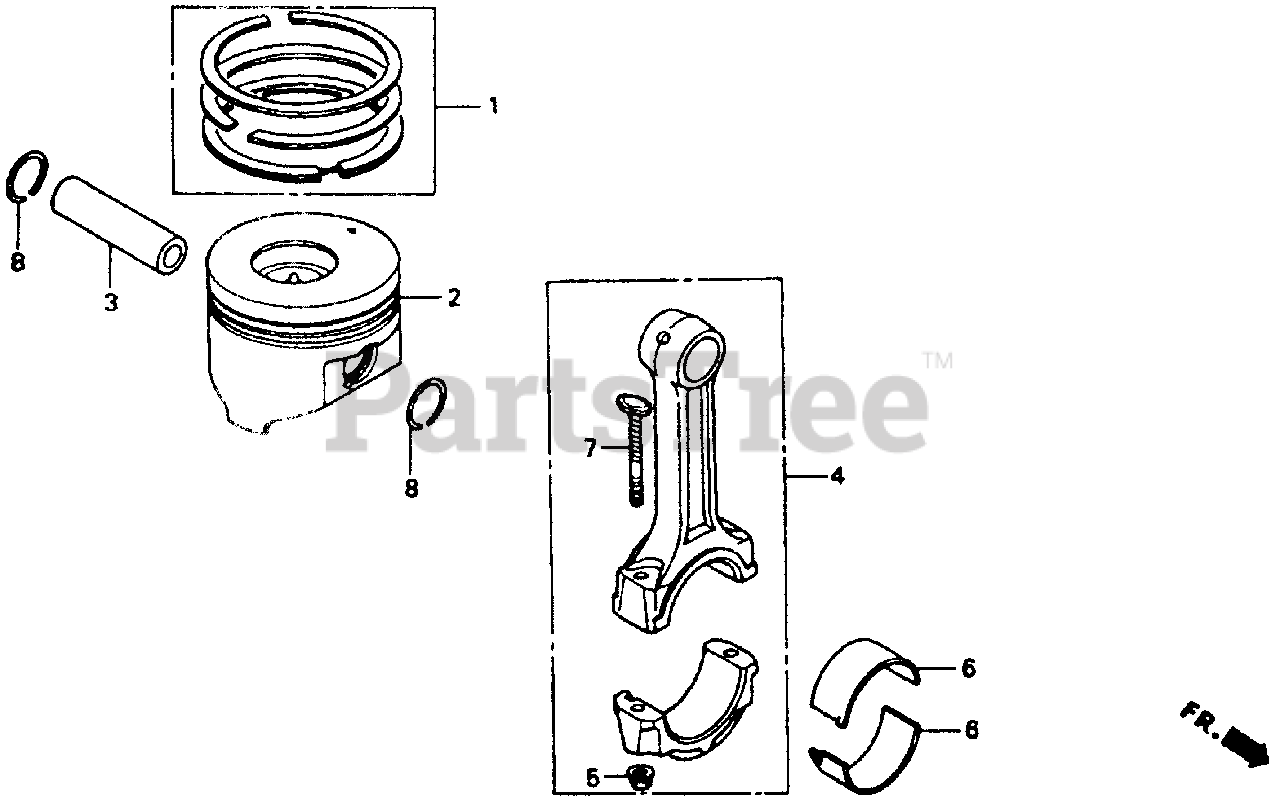

PISTON Parts Diagram

  • Title

1

Honda 13010-ZG4-010

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (Honda Code 4981965).

$72.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZG4-010

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 5182969).

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZG4-010

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 5182977).

Note: (Optional).

$72.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZG4-000

RING SET, PISTON (0.75) (Honda Code 3618782).
(Superseded to 13013-ZG4-010)

Note: (Optional).

$69.99

$

Usually ships in 3-6 days

0

2

Honda 13101-ZG4-930

PISTON (STD) (Honda Code 3618790).

$204.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZG4-000

PIN, PISTON (Honda Code 3618808).

$21.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZG4-000

ROD ASSY., CONNECTING (Honda Code 3618816).

$223.99

$

Usually ships in 3-6 days

0

5

Honda 13205-634-010

SEE PART DETAILS - PRI; NUT, CONNECTING ROD (Honda Code 0549493).

$8.49

$

Usually ships in 3-6 days

0

6

Honda 13211-ZG4-000

BEARING A, CONNECTING ROD (BLUE) (Honda Code 3618824).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13212-ZG4-000

BEARING B, CONNECTING ROD (BLACK) (Honda Code 3618832).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13213-ZG4-000

BEARING C, CONNECTING ROD (BROWN) (Honda Code 3618840).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13214-ZG4-000

BEARING D, CONNECTING ROD (GREEN) (Honda Code 3618857).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13215-ZG4-000

BEARING E, CONNECTING ROD (YELLOW) (Honda Code 3618865).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13216-ZG4-000

BEARING F, CONNECTING ROD (PINK) (Honda Code 3618873).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

6

Honda 13217-ZG4-000

BEARING G, CONNECTING ROD (RED) (Honda Code 3618881).

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

6

Honda 13232-ZG4-000

BEARING A, CONNECTING ROD (US 0.25) (BLACK) (Honda Code 3618899).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13233-ZG4-000

BEARING B, CONNECTING ROD (US 0.25) (BROWN) (Honda Code 3618907).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13234-ZG4-000

BEARING C, CONNECTING ROD (US 0.25) (GREEN) (Honda Code 3618915).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13236-ZG4-000

BEARING A, CONNECTING ROD (US 0.25) (BLACK) (Honda Code 3618923).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13237-ZG4-000

BEARING B, CONNECTING ROD (US 0.25) (BROWN) (Honda Code 3618931).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13238-ZG4-000

BEARING C, CONNECTING ROD (US 0.25) (GREEN) (Honda Code 3618949).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13242-ZG4-000

BEARING A, CONNECTING ROD (US 0.75) (BLACK) (Honda Code 3618956).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13243-ZG4-000

BEARING B, CONNECTING ROD (US 0.75) (BROWN) (Honda Code 3618964).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

6

Honda 13244-ZG4-000

BEARING C, CONNECTING ROD (US 0.75) (GREEN) (Honda Code 3618972).

Note: (Optional).

$25.99

$

Usually ships in 3-6 days

0

7

Honda 13213-463-003

BOLT, CONNECTING ROD (NAGOYA NEJI) (Honda Code 0881466).

$20.99

$

Usually ships in 3-6 days

0

8

Honda 90601-KA5-000

CLIP, PISTON PIN (1.2X20) (Honda Code 1028398).

$1.99

$

In Stock, Qty 5

0
