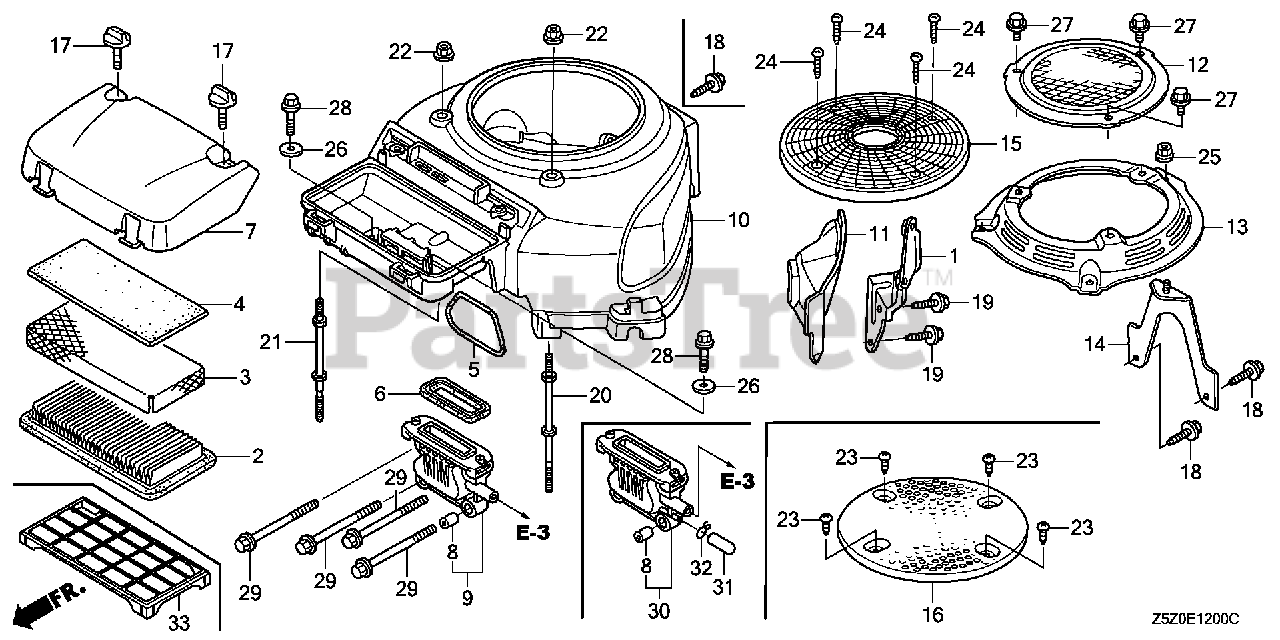

GCV530 U QEA1 (GJADK) - Honda Engine, Made in Japan (SN: GJADK-1000001 - GJADK-9999999) FAN COVER Parts Diagram

Engine, Made in Japan

FAN COVER Parts Diagram

  • Title

2

Honda 17211-Z0A-013

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$13.99

$

In Stock, only 3 left!

0

3

Honda 17212-Z0A-000

GRID, AIR CLEANER

Note: Use up to Engine SN 1028820.

$26.99

$

In Stock, only 1 left!

0

4

Honda 17218-Z0A-810

SEE PART DETAILS - PRI; FILTER (OUTER)

$6.99

$

In Stock, Qty 6

0

5

Honda 17228-Z0A-003

GASKET, AIR CLEANER

$2.99

$

In Stock, Qty 12

0

6

Honda 17229-Z0A-000

SEAL, AIR CLEANER HOUSING

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17231-Z0A-000

COVER, AIR CLEANER

$28.99

$

Usually ships in 3-6 days

0

8

Honda 17238-ZJ4-830

COLLAR A, AIR CLEANER (Honda Code 6224752).

$2.99

$

In Stock, only 3 left!

0

9

Honda 17410-Z0A-010

SEE PART DETAILS - PRI; ELBOW, AIR CLEANER

Note: Use up to Engine SN 1012077.

$20.99

$

Usually ships in 3-6 days

0

10

Honda 19611-Z0A-010ZA

SEE PART DETAILS - PRI; COVER, FAN *NH1* (BLACK)

$56.99

$

In Stock, only 1 left!

0

10

Honda 19611-Z0A-010ZC

COVER, FAN *R280* (POWER RED)

$52.99

$

Usually ships in 3-6 days

0

11

Honda 19612-Z0A-000

PLATE, SIDE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 28452-Z0A-000ZA

GRID, SCREEN (D50) *NH1* (BLACK)

$29.99

$

Usually ships in 3-6 days

0

15

Honda 28452-Z0A-000ZC

GRID, SCREEN (D50) *R280* (POWER RED)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 90004-Z0A-000

BOLT, AIR CLEANER (6MM)

$5.49

$

In Stock, only 2 left!

0

18

Honda 90013-ZL8-000

BOLT, FLANGE (6X14) (CT200)

$1.99

$

In Stock, Qty 5

0

19

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

20

Honda 90044-Z0A-010

BOLT, L. STUD (IGNITION COIL)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 90045-Z0A-010

BOLT, R. STUD (IGNITION COIL)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 90201-ZM0-000

NUT, FLANGE (6MM) (Honda Code 6478812).

$2.99

$

In Stock, Qty 20+

0

24

Honda 93913-24780

SCREW, TAPPING (4X30) (PO)

$0.99

$

In Stock, Qty 10

0

26

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

28

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

29

Honda 95801-06100-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X100)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 17410-Z6A-000

ELBOW, AIR CLEANER

Note: Use from Engine SN 1012078.

$17.99

$

Usually ships in 3-6 days

0

31

Honda 90634-ZL8-H00

CAP, SEALING

Note: Use from Engine SN 1012078.

$5.99

$

Usually ships in 3-6 days

0

32

Honda 95002-02100

SEE PART DETAILS - PRI; CLIP, TUBE (B10) (Honda Code 0250985).

Note: Use from Engine SN 1012078.

$2.49

$

In Stock, Qty 16

0

33

Honda 17212-Z0A-010

GRID, AIR CLEANER

Note: Use from Engine SN 1028821.

$26.99

$

In Stock, only 1 left!

0
